1、背景

kong网关需要集成filebeat实现将kong网关的日志推送到公司kafka集群，考虑到kong网关可能部署到不同k8s版本的集群上（1.13-1.30），所以采用同一个负载启用多个容器的方式将filebeat组件集成到网关。

2、整体思路

首先需要在容器启动前动态创建日志落盘共享目录，避免启动filebeat容器时找不到目录；其次需要将kong网关的日志落盘路劲挂载到宿主机的hostPath路劲；然后需要在filebeat pod里边动态获取kong podIP，最后需要确保filebeat容器能够正确访问推送目标kafka集群的broker service地址。

3、改造部分

3.1、helm chart deployment.yaml模板部分，增加filebeat容器配置

- name: filebeat
  image: "{{ .Values.filebeat.image.repository }}:{{ .Values.filebeat.image.tag }}"
  imagePullPolicy: {{ .Values.filebeat.image.pullPolicy }}
  resources:
    {{- toYaml .Values.filebeat.resources | nindent 12 }}
  volumeMounts:
    - name: web-logs
      mountPath: /data/web_logs
      readOnly: true
    - name: filebeat-config
      mountPath: /etc/filebeat
  env:
    - name: NODE_NAME
      valueFrom:
        fieldRef:
          fieldPath: spec.nodeName
    - name: POD_IP
      valueFrom:
        fieldRef:
          fieldPath: status.podIP

3.2、values.yaml添加initcontainer以及自定义日志挂盘，以及filebeat配置

  initContainers:
    - name: create-log-dir
      image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/gcr.io/google-containers/busybox:1.27
      command: [ "sh", "-c", "mkdir -p /data/web_logs/${NAMESPACE}/${POD_IP} && chmod 755 /data/web_logs/${NAMESPACE}/${POD_IP}" ]
      securityContext:
        runAsUser: 0
      env:
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
      volumeMounts:
        - name: web-logs
          mountPath: /data/web_logs

  userDefinedVolumes:
    # 新增日志卷
    - name: web-logs
      hostPath:
        path: /data/web_logs/${NAMESPACE}/${POD_IP}
        type: DirectoryOrCreate
    - name: filebeat-config
      configMap:
        name: filebeat-config
  userDefinedVolumeMounts:
    - name: web-logs
      mountPath: /data/web_logs
      readOnly: false
    - name: filebeat-config
      mountPath: /usr/share/filebeat/filebeat.yml
      subPath: filebeat.yml

filebeat:
  enabled: true
  kafkaHosts: ["nm-bigdata-kafka01:9092","nm-bigdata-kafka02:9092","nm-bigdata-kafka03:9092","nm-bigdata-kafka04:9092","nm-bigdata-kafka05:9092"]
  kafkaTopic: "ucop-kong-proxy-access"
  # 新增Kafka认证配置
  kafkaAuth:
    enabled: false  # 控制是否启用认证
    username: "user"    # Kafka用户名
    password: "pass"    # Kafka密码
  kafkaSSL:
    enabled: false  # 控制是否启用SSL
    certificateAuthorities: ["/etc/certs/kafka/ca.pem"]  # CA证书路径列表
    certificate: "/etc/certs/kafka/client.pem"  # 客户端证书路径
    key: "/etc/certs/kafka/client.key"          # 客户端私钥路径
  image:
    repository: hub.tech.21cn.com/library/elastic/filebeat
    tag: 8.12.0
    pullPolicy: IfNotPresent
  resources:
    limits:
      cpu: 200m
      memory: 512Mi
    requests:
      cpu: 100m
      memory: 256Mi

3.3、filebeat日志采集部分配置以configmap的形式挂载，其filebeat-configmap.yaml如下

apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-config
  labels:
    app: {{ template "kong.fullname" . }}
data:
  filebeat.yml: |
    filebeat.inputs:
      - type: log
        id: kong-access
        enabled: true
        fields:
          app: kong-proxy
        fields_under_root: true
        paths:
          - /data/web_logs/*/*_access.log
    processors:
    - copy_fields:
        fail_on_error: false
        ignore_missing: true
        fields:
          - from: log.file.path
            to: source
    output.kafka:
      enabled: true
      hosts: {{ .Values.filebeat.kafkaHosts | toJson }}  # Kafka集群地址
      topic: {{ .Values.filebeat.kafkaTopic | quote }}
      required_acks: 1
      compression: gzip
      # 如果Kafka需要认证，添加以下配置
      {{- if .Values.filebeat.kafkaAuth.enabled }}
      username: {{ .Values.filebeat.kafkaAuth.username | quote }}
      password: {{ .Values.filebeat.kafkaAuth.password | quote }}
      {{- end }}
      {{- if .Values.filebeat.kafkaSSL.enabled }}
      ssl.certificate_authorities: {{ .Values.filebeat.kafkaSSL.certificateAuthorities | toJson }}
      ssl.certificate: {{ .Values.filebeat.kafkaSSL.certificate | quote }}
      ssl.key: {{ .Values.filebeat.kafkaSSL.key | quote }}
      {{- end }}

    logging.level: debug
    path.data: /var/lib/filebeat

这里需要注意一下，filebeat采集的应该为容器文件系统的日志路劲，避免填写宿主机的文件系统日志路劲导致采集不到日志信息。

3.4、kong网关增加filebeat配置页面白屏化相关代码改造（略）

4、测试部署

4.1、本地k8s集群启动一个kafka单例，具体相关配置如下：

kafka.yaml

apiVersion: v1
kind: Service
metadata:
  name: kafka-service
  namespace: kafka
spec:
  ports:
    - port: 9092
      nodePort: 39093
  selector:
    app: kafka
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kafka-deployment
  namespace: kafka
spec:
  selector:
    matchLabels:
      app: kafka
  template:
    metadata:
      labels:
        app: kafka
    spec:
      containers:
        - name: kafka
          image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/bitnami/kafka:3.4.0
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 9092
          env:
            - name: KAFKA_ZOOKEEPER_CONNECT
              value: zookeeper-service:2181
            - name: KAFKA_ADVERTISED_LISTENERS
              value: PLAINTEXT://10.251.90.7:9092
            - name: KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR
              value: "1"
            - name: ALLOW_PLAINTEXT_LISTENER
              value: "yes"

zookeeper.yaml

apiVersion: v1
kind: Service
metadata:
  name: zookeeper-service
  namespace: kafka
spec:
  ports:
    - port: 2181
  selector:
    app: zookeeper
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zookeeper-deployment
  namespace: kafka
spec:
  selector:
    matchLabels:
      app: zookeeper
  template:
    metadata:
      labels:
        app: zookeeper
    spec:
      containers:
        - name: zookeeper
          image: registry.cn-hangzhou.aliyuncs.com/images-speed-up/zookeeper:3.8.0
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 2181

其中kafka环境变量KAFKA_ADVERTISED_LISTENERS为kafka broker service的监听地址，即svcIP+Port的形式，直接kubectl apply拉起就行。

4.2、kafka查看topic，以及查看消息消费记录命令行：

进入kafka脚本目录执行

4.2.1 查看指定topic以及最大10条消费记录

kafka-console-consumer.sh --bootstrap-server 172.19.0.93:39988 --topic ucop-kong-proxy-access --from-beginning --max-messages 10

4.2.1、查看所有topic

kafka-topics.sh --bootstrap-server localhost:9092 --list

4.2.2、实时监控查看新的消息消费记录

kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic ucop-kong-proxy-access

4.2.3、模拟生产消息进行消费

kafka-console-producer.sh --bootstrap-server localhost:9092 --topic ucop-kong-proxy-access

4.4、使用curl模拟发起kong网关调用

curl -i http://<kong-svc>

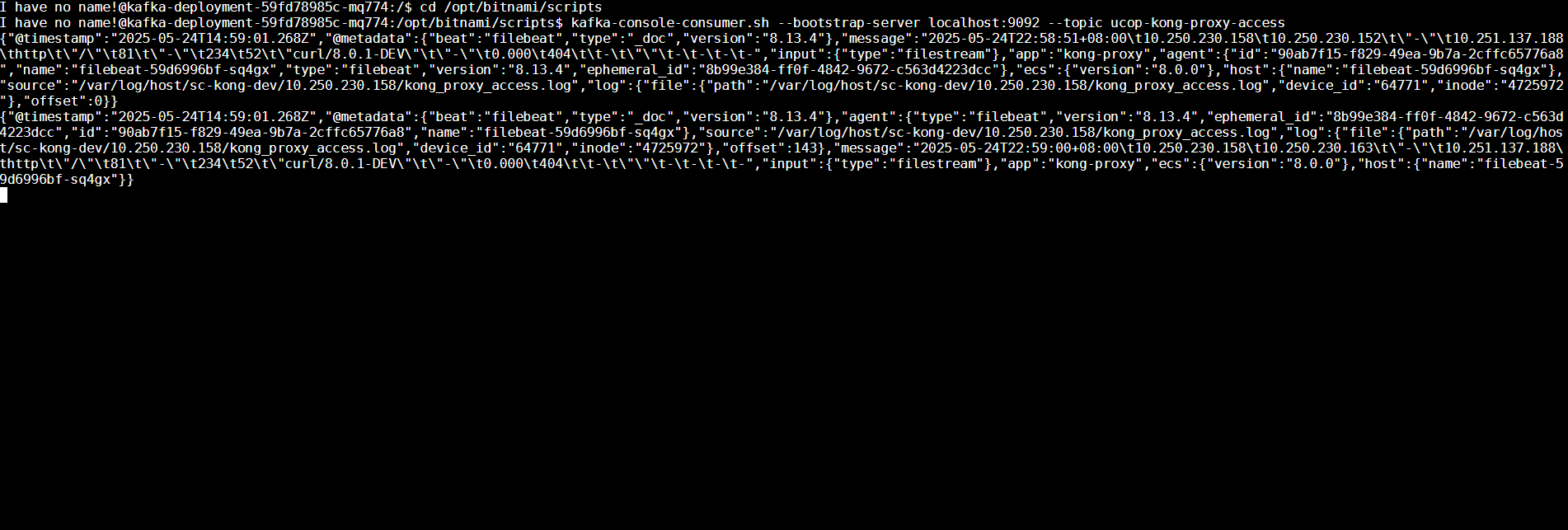

4.5、查看本地的filebeat日志以及kafka消息消费记录，结果示例如下，即表示已经成功推送消息到kafka集群：

4.6、通过配置filebeat nginx_http_log_format参数，对日志输出格式进行规范，其具体配置如下：

accesslog "$time_iso8601\t$server_addr\t$remote_addr\t\"$http_x_forwarded_for\"\t$host\t$scheme\t\"$request_uri\"\t$request_length\t\"$http_referer\"\t$bytes_sent\t$body_bytes_sent\t\"$http_user_agent\"\t\"$request_body\"\t$request_time\t$status\t$upstream_host\t$upstream_addr\t\"$upstream_uri\"\t$upstream_response_time\t$upstream_connect_time\t$upstream_header_time\t$upstream_status"

至此，整个集成部署测试核心流程已经完成，如有纰漏还望留言斧正。
