思科MPLS VPN异地组网实现内网互联互通

用户5921339

发布于 2025-05-20 17:54:50

4760

MPLS VPN（Multiprotocol Label Switching Virtual Private Network）是一种基于MPLS技术构建的虚拟专用网络，专为企业提供高效、安全、可扩展的跨地域通信服务

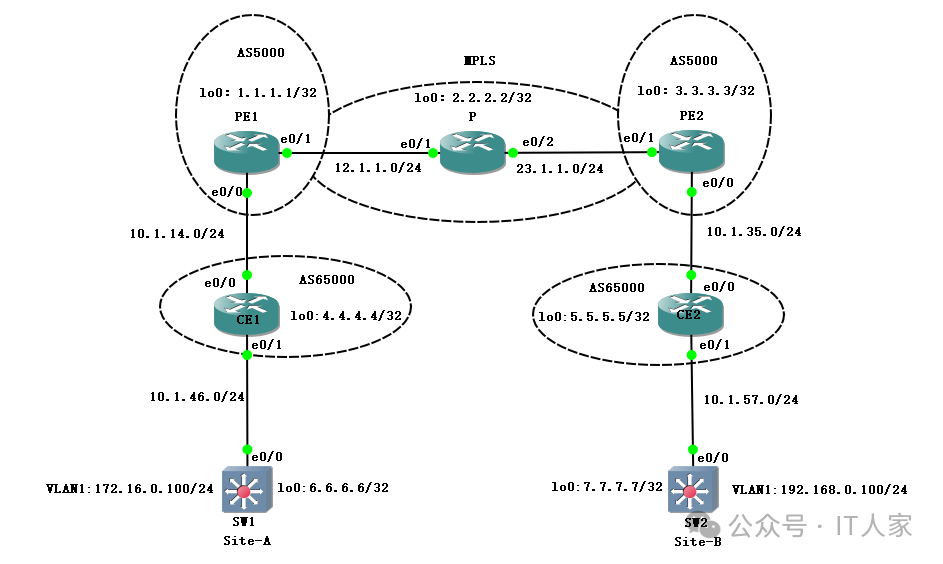

一、实验网络拓扑图

说明：

运营商设备PE1、P、PE2通过isis（IGP）路由协议建立邻居关系，同时组成MPLS域；
CE和SW之间通过ospf建立邻居关系；
PE和CE通过直连口建立eBGP邻居，并将ospf和bgp路由相互进行重分布；
PE1和PE2启用MP-BGP，实现CE1、SW1和CE2、SW2之间的网络能够互访。

二、实验目的：通过MPLS VPN实现Site-A到Site-B网络互通

三、设备配置

PE1配置：

ip vrf VPN
 rd 65000:65000
 route-target export 65000:65000
 route-target import 65000:65000
!
ip cef
mpls label range 100 199
mpls label protocol ldp
interface Loopback0
 ip address 1.1.1.1 255.255.255.255
 isis circuit-type level-2-only
!
interface Ethernet0/0
 ip vrf forwarding VPN
 ip address 10.1.14.1 255.255.255.0
!
interface Ethernet0/1
 ip address 12.1.1.1 255.255.255.0
 ip router isis
 mpls ip
 isis network point-to-point
!
router isis
 net 49.0001.1111.1111.1111.00
 is-type level-2-only
 metric-style wide
 passive-interface Loopback0
!
router bgp 5000
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 3.3.3.3 remote-as 5000
 neighbor 3.3.3.3 update-source Loopback0
 !
 address-family ipv4
exit-address-family
 !
 address-family vpnv4
  neighbor 3.3.3.3 activate
  neighbor 3.3.3.3 send-community extended
exit-address-family
 !
 address-family ipv4 vrf VPN
  neighbor 10.1.14.4 remote-as 65000
  neighbor 10.1.14.4 activate
  neighbor 10.1.14.4 as-override
exit-address-family
!
mpls ldp router-id Loopback0 force

P配置：

ip cef
mpls label range 200 299
mpls label protocol ldp
interface Loopback0
 ip address 2.2.2.2 255.255.255.255
 isis circuit-type level-2-only
!
interface Ethernet0/1
 ip address 12.1.1.2 255.255.255.0
 ip router isis
 mpls ip
 isis network point-to-point
!
interface Ethernet0/2
 ip address 23.1.1.2 255.255.255.0
 ip router isis
 mpls ip
 isis network point-to-point
!
router isis
 net 49.0001.2222.2222.2222.00
 is-type level-2-only
 metric-style wide
 passive-interface Loopback0
!
mpls ldp router-id Loopback0 force

PE2配置：

ip vrf VPN
 rd 65000:65000
 route-target export 65000:65000
 route-target import 65000:65000
!
ip cef
mpls label range 300 399
mpls label protocol ldp
!
interface Loopback0
 ip address 3.3.3.3 255.255.255.255
 isis circuit-type level-2-only
!
interface Ethernet0/0
 ip vrf forwarding VPN
 ip address 10.1.35.3 255.255.255.0
!
interface Ethernet0/1
 ip address 23.1.1.3 255.255.255.0
 ip router isis
 mpls ip
 isis network point-to-point
!
router isis
 net 49.0001.3333.3333.3333.00
 is-type level-2-only
 metric-style wide
 passive-interface Loopback0
!
router bgp 5000
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 1.1.1.1 remote-as 5000
 neighbor 1.1.1.1 update-source Loopback0
 !
 address-family ipv4
exit-address-family
 !
 address-family vpnv4
  neighbor 1.1.1.1 activate
  neighbor 1.1.1.1 send-community extended
exit-address-family
 !
 address-family ipv4 vrf VPN
  neighbor 10.1.35.5 remote-as 65000
  neighbor 10.1.35.5 activate
  neighbor 10.1.35.5 as-override
exit-address-family
!
mpls ldp router-id Loopback0 force
!

CE1配置：

interface Loopback0
 ip address 4.4.4.4 255.255.255.255
!
interface Ethernet0/0
 ip address 10.1.14.4 255.255.255.0
!
interface Ethernet0/1
 ip address 10.1.46.4 255.255.255.0
!
router ospf 100
 router-id 4.4.4.4
 redistribute bgp 65000 subnets
 network 4.4.4.4 0.0.0.0 area 0
 network 10.1.46.0 0.0.0.255 area 0
!
router bgp 65000
 bgp router-id 10.1.14.4
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.1.14.1 remote-as 5000
 !
 address-family ipv4
  redistribute ospf 100 match internal external 1 external 2
  neighbor 10.1.14.1 activate
exit-address-family
!

CE2配置：

interface Loopback0
 ip address 5.5.5.5 255.255.255.255
!
interface Ethernet0/0
 ip address 10.1.35.5 255.255.255.0
!
interface Ethernet0/1
 ip address 10.1.57.5 255.255.255.0
!
router ospf 100
 router-id 5.5.5.5
 redistribute bgp 65000 subnets
 network 5.5.5.5 0.0.0.0 area 0
 network 10.1.57.0 0.0.0.255 area 0
!
router bgp 65000
 bgp router-id 10.1.35.5
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.1.35.3 remote-as 5000
 !
 address-family ipv4
  redistribute ospf 100 match internal external 1 external 2
  neighbor 10.1.35.3 activate
exit-address-family
!

SW1配置：

interface Loopback0
 ip address 6.6.6.6 255.255.255.255
!
interface Ethernet0/0
 no switchport
 ip address 10.1.46.6 255.255.255.0
!
interface Vlan1
 ip address 172.16.0.100 255.255.0.0
!
router ospf 100
 router-id 6.6.6.6
 network 6.6.6.6 0.0.0.0 area 0
 network 10.1.46.0 0.0.0.255 area 0
 network 172.16.0.0 0.0.255.255 area 0
!

SW2配置：

interface Loopback0
 ip address 7.7.7.7 255.255.255.255
!
interface Ethernet0/0
 no switchport
 ip address 10.1.57.7 255.255.255.0
!
interface Vlan1
 ip address 192.168.0.100 255.255.255.0
!
router ospf 100
 router-id 7.7.7.7
 network 7.7.7.7 0.0.0.0 area 0
 network 10.1.57.0 0.0.0.255 area 0
 network 192.168.0.0 0.0.0.255 area 0
!

四、验证结果：

在SW1上trace到SW2的路由，并查看本地所有路由条目：

SW1#traceroute 192.168.0.100
Type escape sequence to abort.
Tracing the route to 192.168.0.100
VRF info: (vrf in name/id, vrf out name/id)
  1 10.1.46.4 1 msec 1 msec 0 msec
  2 10.1.14.1 1 msec 0 msec 1 msec
  3 12.1.1.2 [MPLS: Labels 200/308 Exp 0] 1 msec 1 msec 1 msec
  4 10.1.35.3 [MPLS: Label 308 Exp 0] 1 msec 1 msec 0 msec
  5 10.1.35.5 1 msec 1 msec 1 msec
  6 10.1.57.7 1 msec 1 msec 1 msec

在SW2上trace到SW1的路由，并查看本地所有路由条目：

SW2#traceroute 172.16.0.100
Type escape sequence to abort.
Tracing the route to 172.16.0.100
VRF info: (vrf in name/id, vrf out name/id)
  1 10.1.57.5 1 msec 0 msec 0 msec
  2 10.1.35.3 1 msec 0 msec 1 msec
  3 23.1.1.2 [MPLS: Labels 201/108 Exp 0] 1 msec 1 msec 1 msec
  4 10.1.14.1 [MPLS: Label 108 Exp 0] 1 msec 1 msec 0 msec
  5 10.1.14.4 1 msec 1 msec 1 msec
  6 10.1.46.6 1 msec 1 msec 1 msec
