Linux多节点多硬盘部署MinIO：分布式MinIO集群部署指南搭建高可用架构实践

vim /etc/hosts

# 添加各个节点和主机名的映射
192.168.33.201 Node201
192.168.33.202 Node202
192.168.33.203 Node203
192.168.33.204 Node204

vim /etc/default/minio

# 更新MINIO_VOLUMES 配置
MINIO_ROOT_USER="minioadmin"
MINIO_ROOT_PASSWORD="minioadmin"
MINIO_VOLUMES="http://node201/mnt/data http://node202/mnt/data http://node203/mnt/data http://node204/mnt/data"
MINIO_OPTS="--address :9000 --console-address :9001"

hostnamectl set-hostname Node201  # 在 Node201 上执行
hostnamectl set-hostname Node202  # 在 Node202 上执行
hostnamectl set-hostname Node203  # 在 Node203 上执行
hostnamectl set-hostname Node204  # 在 Node204 上执行

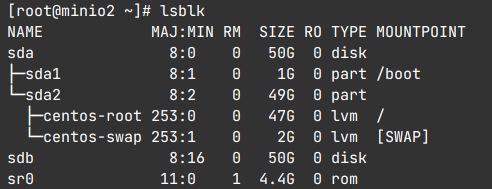

lsblk

df -h /mnt/data

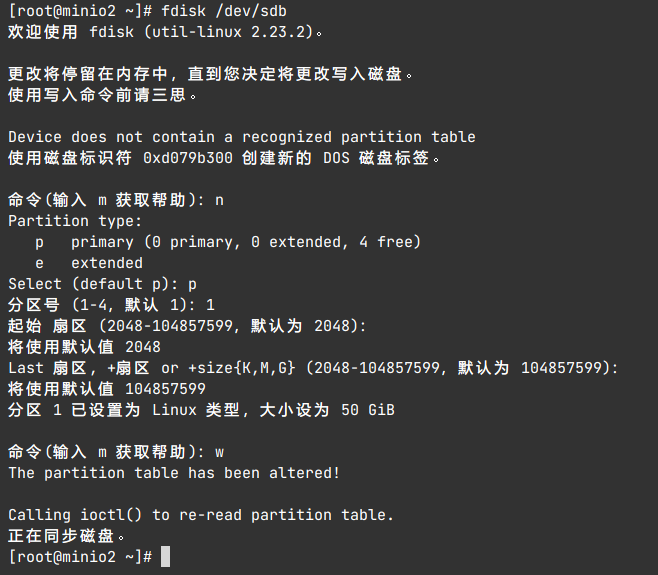

fdisk /dev/sdb

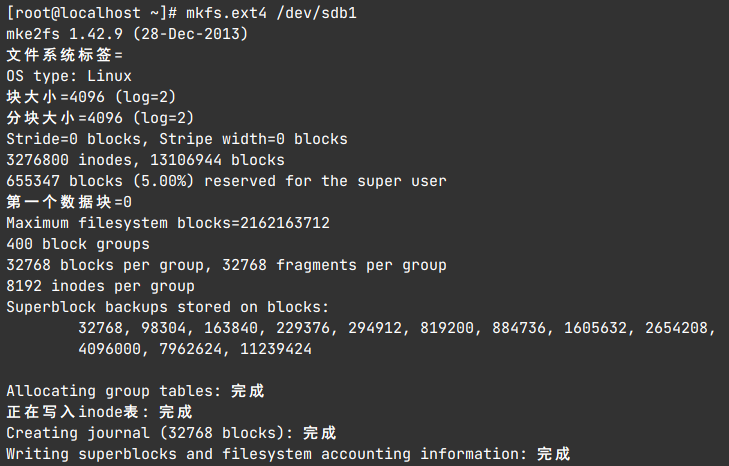

mkfs.ext4 /dev/sdb1

#如果还未创建数据目录首先创建
mkdir /mnt/data

mount /dev/sdb1 /mnt/data
df -h /mnt/data

# 查看挂载后的目录权限和所有者

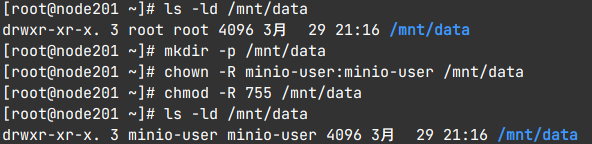

ls -ld /mnt/data

mkdir -p /mnt/data
groupadd -r minio-user
useradd -M -r -g minio-user minio-user
chown -R minio-user:minio-user /mnt/data
chmod -R 755 /mnt/data

# 查看设置权限后的目录权限和所有者
ls -ld /mnt/data

blkid /dev/sdb1

vim /etc/fstab
#将挂载目录所有者设为minio-user用户,将组设为minio-user组,权限为775文件为664
UUID=your-disk-uuid /mnt/data ext4 defaults 0 0

df -h /mnt/data
#如果未挂载在新分区,那么手动挂载一下
mount /dev/sdb1 /mnt/data

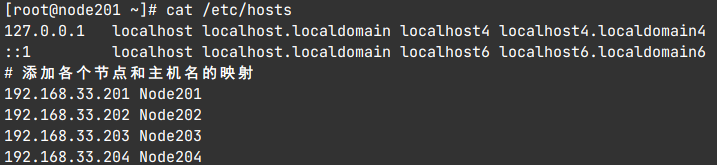

cat /etc/hosts
#在各节点上相互ping测试连通性
ping node201
ping node202
ping node203
ping node204

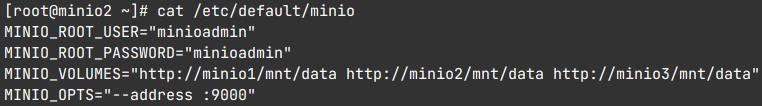

cat /etc/default/minio

rm /usr/lib/systemd/system/minio.service
vim /usr/lib/systemd/system/minio.service

[Unit]
Description=MinIO
Documentation=https://minio.org.cn/docs/minio/linux/index.html
Wants=network-online.target
After=network-online.target
AssertFileIsExecutable=/usr/local/bin/minio

[Service]
WorkingDirectory=/usr/local

User=minio-user
Group=minio-user
ProtectProc=invisible

EnvironmentFile=-/etc/default/minio
ExecStartPre=/bin/bash -c "if [ -z \"${MINIO_VOLUMES}\" ]; then echo \"Variable MINIO_VOLUMES not set in /etc/default/minio\"; exit 1; fi"
ExecStart=/usr/local/bin/minio server $MINIO_OPTS $MINIO_VOLUMES

# MinIO RELEASE.2023-05-04T21-44-30Z adds support for Type=notify (https://www.freedesktop.org/software/systemd/man/systemd.service.html#Type=)
# This may improve systemctl setups where other services use `After=minio.server`
# Uncomment the line to enable the functionality
# Type=notify

# Let systemd restart this service always
Restart=always

# Specifies the maximum file descriptor number that can be opened by this process
LimitNOFILE=65536

# Specifies the maximum number of threads this process can create
TasksMax=infinity

# Disable timeout logic and wait until process is stopped
TimeoutStopSec=infinity
SendSIGKILL=no

[Install]
WantedBy=multi-user.target

# Built for ${project.name}-${project.version} (${project.name})

systemctl daemon-reload

systemctl stop firewalld
systemctl disable firewalld

systemctl stop minio

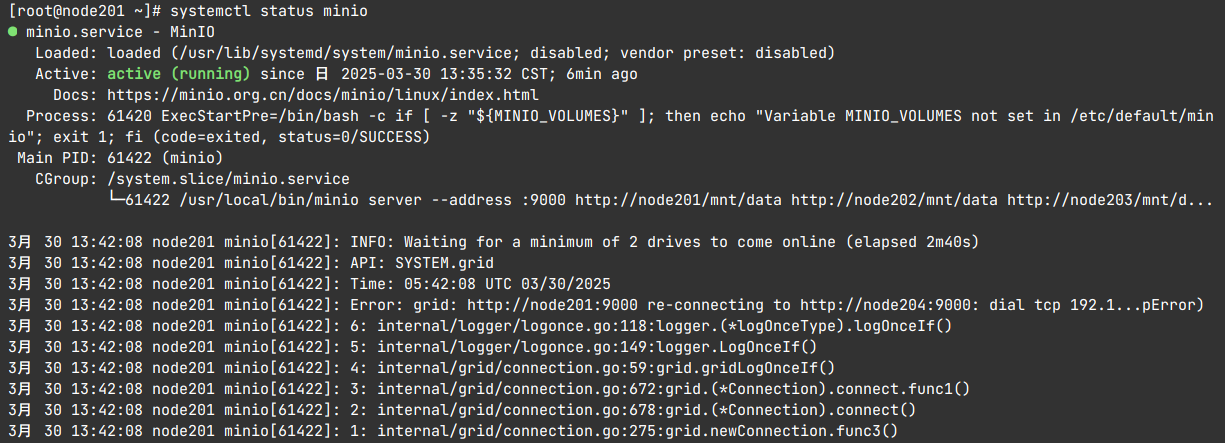

systemctl start minio
systemctl enable minio
#查看详细日志
journalctl -u minio -b

wget https://dl.min.io/client/mc/release/linux-amd64/mc
chmod +x mc
sudo mv mc /usr/local/bin/

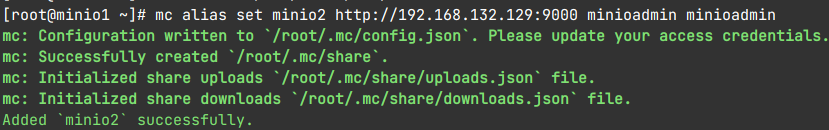

mc alias set minio2 http://192.168.132.129:9000 minioadmin minioadmin

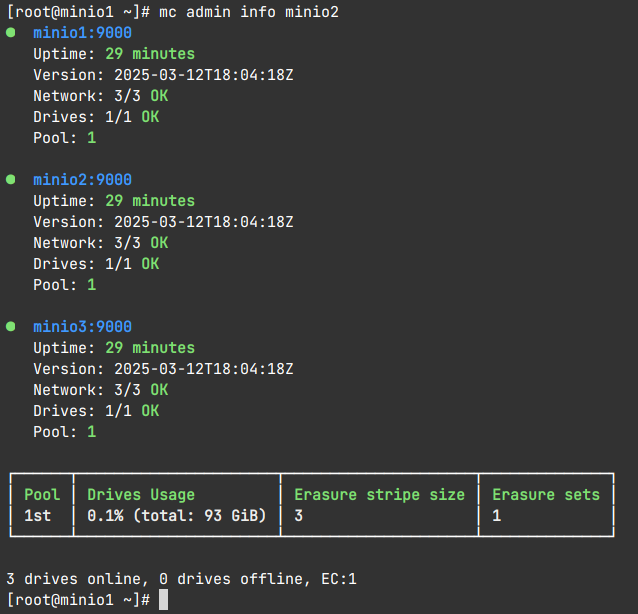

mc admin info minio2

wget https://dl.min.io/client/mc/release/linux-amd64/mc
chmod +x mc
sudo mv mc /usr/local/bin/
#验证是否安装成功

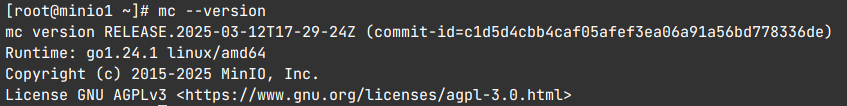

mc --version

mc alias set minio1 http://192.168.132.128:9000 minioadmin minioadmin
mc alias set minio2 http://192.168.132.129:9000 minioadmin minioadmin
mc alias set minio3 http://192.168.132.130:9000 minioadmin minioadmin

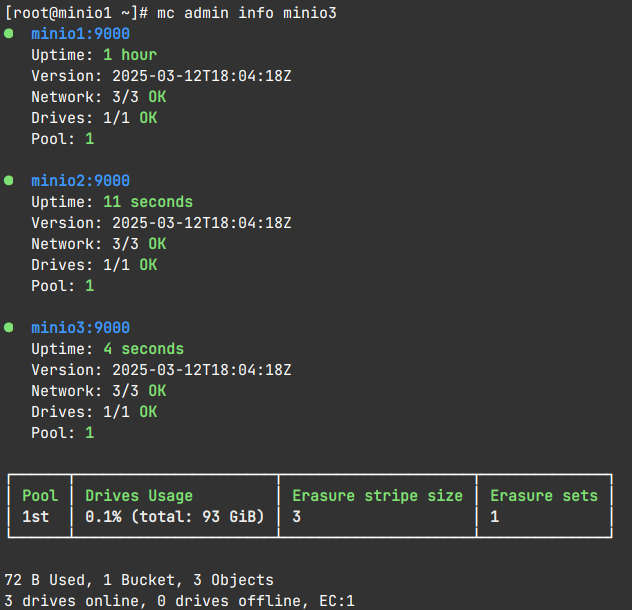

mc admin info minio3

mc mb minio1/test-bucket

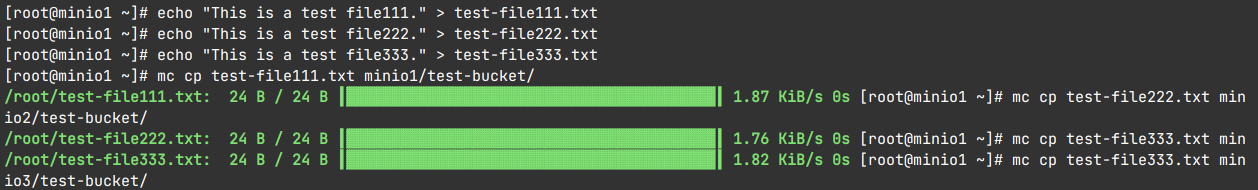

echo "This is a test file111." > test-file111.txt
mc cp test-file111.txt minio1/test-bucket/

mc ls minio1/test-bucket

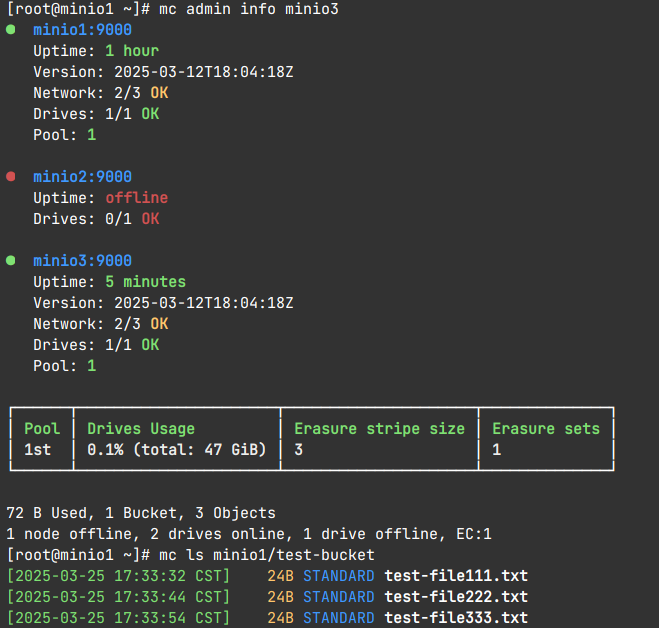

[root@minio2 ~]# sudo systemctl stop minio

mc admin info minio3
mc ls minio1/test-bucket

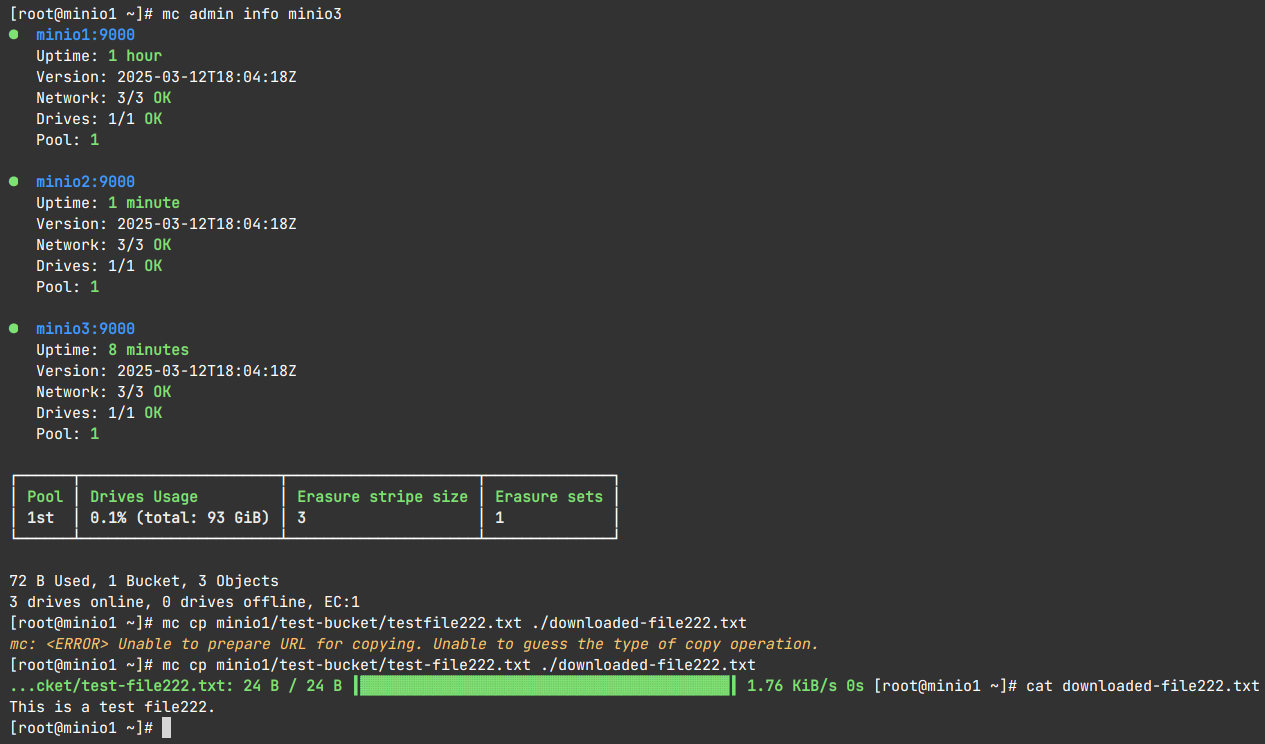

[root@minio2 ~]# sudo systemctl start minio

mc admin info minio3
mc cp minio1/test-bucket/test-file222.txt ./downloaded-file222.txt
cat downloaded-file222.txt

sudo firewall-cmd --zone=public --add-port=9000/tcp --permanent
sudo firewall-cmd --reload

sudo journalctl -u minio.service -f
