单细胞互作新思路！NicheNet实战：单核细胞如何调控T细胞？附代码

# 设置工作目录
setwd("/mnt/data/home/user/nicheNet")
#安装
#devtools::install_github("saeyslab/nichenetr")
# 加载所需包
library(nichenetr)
library(Seurat)
library(SeuratObject)
library(tidyverse)
library(ggplot2)

# 加载PBMC数据集
seuratObj <- readRDS("/mnt/data/home/user/pbmc3k_processed.rds")

# 查看细胞类型信息
seuratObj@meta.data %>% head()
seuratObj@meta.data$seurat_annotations %>% table()

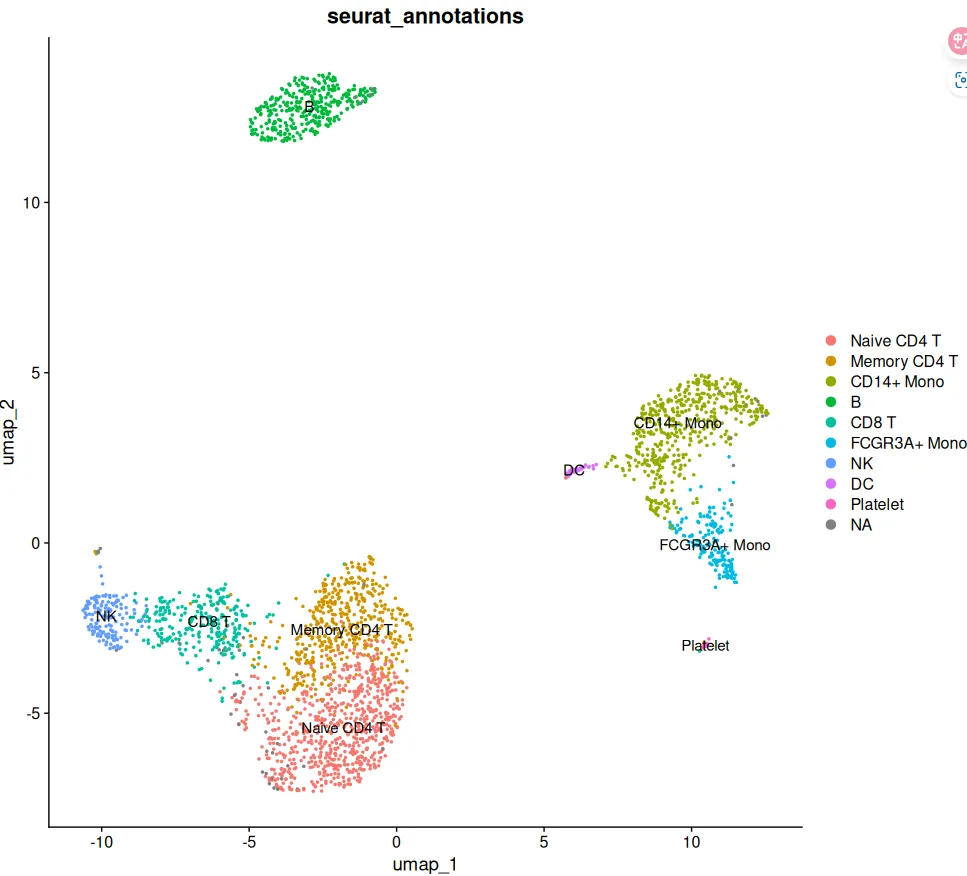

# 可视化PBMC细胞类型分布
DimPlot(seuratObj, reduction = "umap", group.by = 'seurat_annotations', label = TRUE)

# 加载NicheNet预计算的数据库
lr_network <- readRDS("./lr_network_human_21122021.rds")
ligand_target_matrix <- readRDS("./ligand_target_matrix_nsga2r_final.rds")
weighted_networks <- readRDS("./weighted_networks_nsga2r_final.rds")

# 检查数据库信息
cat("配体-受体对数量:", nrow(lr_network), "\n")
cat("配体数量:", length(unique(lr_network$from)), "\n")
cat("受体数量:", length(unique(lr_network$to)), "\n")
cat("配体-靶基因矩阵维度:", dim(ligand_target_matrix), "\n")

# 定义发送细胞和接收细胞
sender_cells <- WhichCells(seuratObj, expression = seurat_annotations == "CD14+ Mono")
receiver_cells <- WhichCells(seuratObj, expression = seurat_annotations == "Memory CD4 T")

# 确认细胞数量
cat("发送细胞(CD14+ Mono)数量:", length(sender_cells), "\n")
cat("接收细胞(Memory CD4 T)数量:", length(receiver_cells), "\n")

# 获取发送细胞表达的基因
sender_expression <- GetAssayData(seuratObj, slot = "data")[, sender_cells]
sender_expression <- rowMeans(sender_expression)

# 筛选表达的配体(设置合理的表达阈值)
expressed_ligands <- names(sender_expression)[sender_expression > 0.1]
expressed_ligands <- intersect(expressed_ligands, unique(lr_network$from))

cat("单核细胞表达的配体数量:", length(expressed_ligands), "\n")
cat("前5个表达配体:", head(expressed_ligands, 5), "\n")

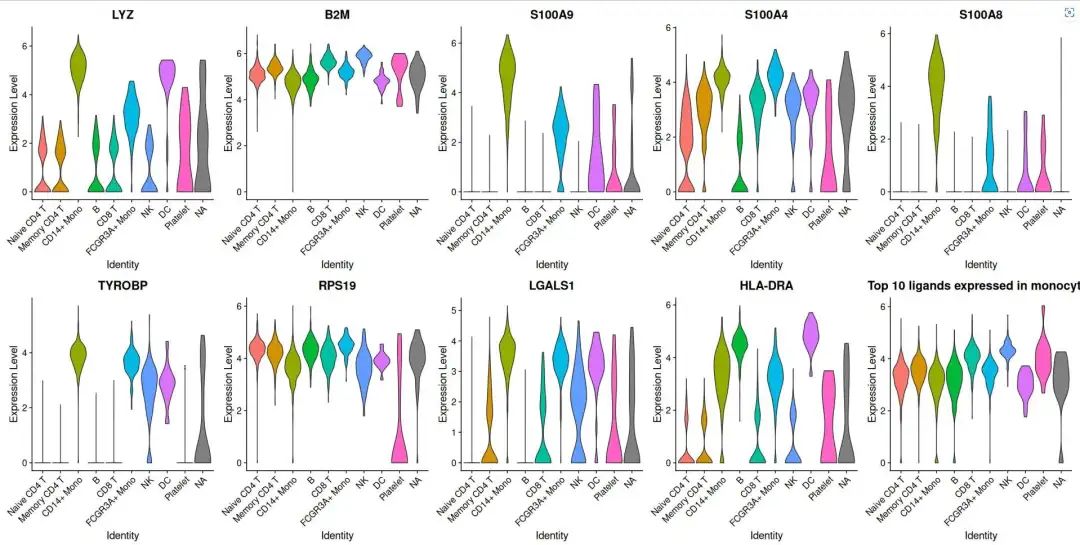

# 可视化表达最高的10个配体
top_ligands <- names(sort(sender_expression[expressed_ligands], decreasing = TRUE)[1:10])
VlnPlot(seuratObj, features = top_ligands,
        group.by = "seurat_annotations", ncol = 5, pt.size = 0) +
  ggtitle("Top 10 ligands expressed in monocytes")

# 创建一个新的分组变量
seuratObj$cd4_group <- "Other"
seuratObj$cd4_group[seuratObj$seurat_annotations == "Memory CD4 T"] <- "Memory CD4 T"
seuratObj$cd4_group[seuratObj$seurat_annotations == "Naive CD4 T"] <- "Naive CD4 T"

# 计算差异表达基因
Idents(seuratObj) <- "cd4_group"
de_results <- FindMarkers(seuratObj,
                          ident.1 = "Memory CD4 T",
                          ident.2 = "Naive CD4 T",
                          min.pct = 0.1,
                          logfc.threshold = 0.25)

# 提取差异基因
geneset_oi <- rownames(de_results)[de_results$p_val_adj < 0.05 & de_results$avg_log2FC > 0]
cat("记忆CD4+ T细胞上调的差异基因数量:", length(geneset_oi), "\n")

# 定义背景基因(在任一CD4 T细胞亚群中有表达的基因)
cd4_cells <- WhichCells(seuratObj, expression = seurat_annotations %in% c("Memory CD4 T", "Naive CD4 T"))
cd4_expression <- GetAssayData(seuratObj, slot = "data")[, cd4_cells]
background_genes <- rownames(cd4_expression)[rowSums(cd4_expression > 0) > 0]
background_genes <- setdiff(background_genes, geneset_oi)

# 预测配体活性
ligand_activities <- predict_ligand_activities(
  geneset = geneset_oi,
  background_expressed_genes = background_genes,
  potential_ligands = expressed_ligands,
  ligand_target_matrix = ligand_target_matrix
)

# 提取排名前十的配体
best_ligands <- ligand_activities %>%
  arrange(-aupr_corrected) %>%
  top_n(10, aupr_corrected) %>%
  pull(test_ligand)

cat("预测活性最高的配体:", paste(best_ligands, collapse=", "), "\n")

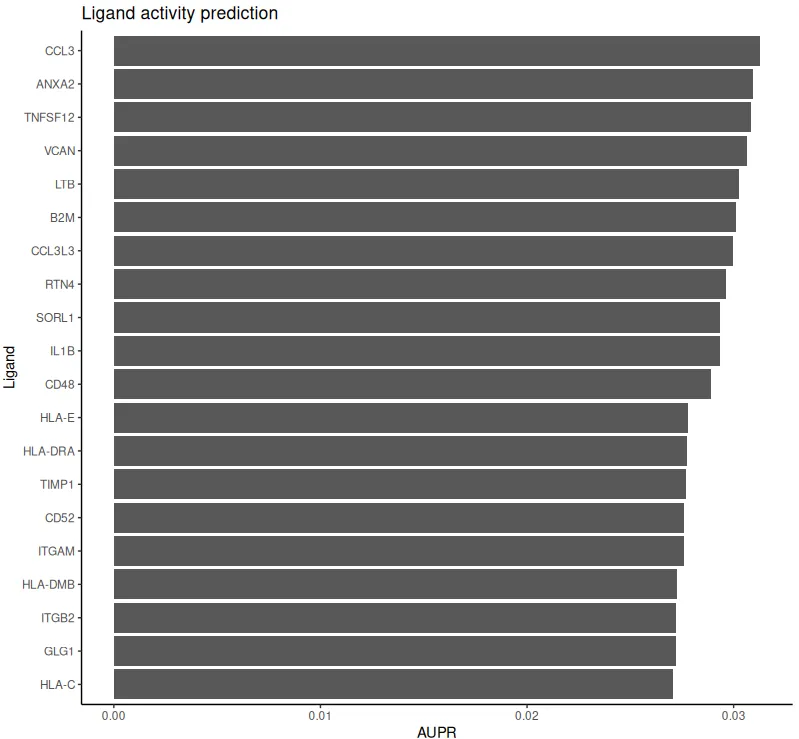

# 可视化配体活性
p1 <- ligand_activities %>%
  arrange(-aupr_corrected) %>%
  top_n(20, aupr_corrected) %>%
  mutate(test_ligand = factor(test_ligand, levels = rev(test_ligand))) %>%
  ggplot(aes(x = test_ligand, y = aupr_corrected)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  theme_classic() +
  labs(x = "Ligand", y = "AUPR", title = "Ligand activity prediction")

print(p1)

# 选择前5个活性最高的配体进行分析
best_predicting_ligands <- best_ligands[1:5]

# 检查配体和基因是否在矩阵中
valid_ligands <- intersect(best_predicting_ligands, colnames(ligand_target_matrix))
valid_genes <- intersect(geneset_oi, rownames(ligand_target_matrix))

# 如果有缺失的配体或基因，打印警告
if(length(valid_ligands) < length(best_predicting_ligands)) {
  cat("警告：有", length(best_predicting_ligands) - length(valid_ligands), "个配体不在ligand_target_matrix中\n")
}
if(length(valid_genes) < length(geneset_oi)) {
  cat("警告：有", length(geneset_oi) - length(valid_genes), "个基因不在ligand_target_matrix中\n")
}

# 使用有效的基因和配体提取靶基因关系
ligand_target_links <- valid_ligands %>%
  lapply(function(ligand) {
    targets <- ligand_target_matrix[valid_genes, ligand]
    targets <- sort(targets, decreasing = TRUE)
    data.frame(
      ligand = ligand,
      target = names(targets),
      weight = targets,
      stringsAsFactors = FALSE
    ) %>% filter(weight > 0.01)  # 筛选强相互作用
  }) %>% bind_rows()

# 打印前几行检查结果
head(ligand_target_links)

# 选择前10个靶基因用于可视化
top_targets_per_ligand <- ligand_target_links %>%
  group_by(ligand) %>%
  top_n(10, weight) %>%
  ungroup()

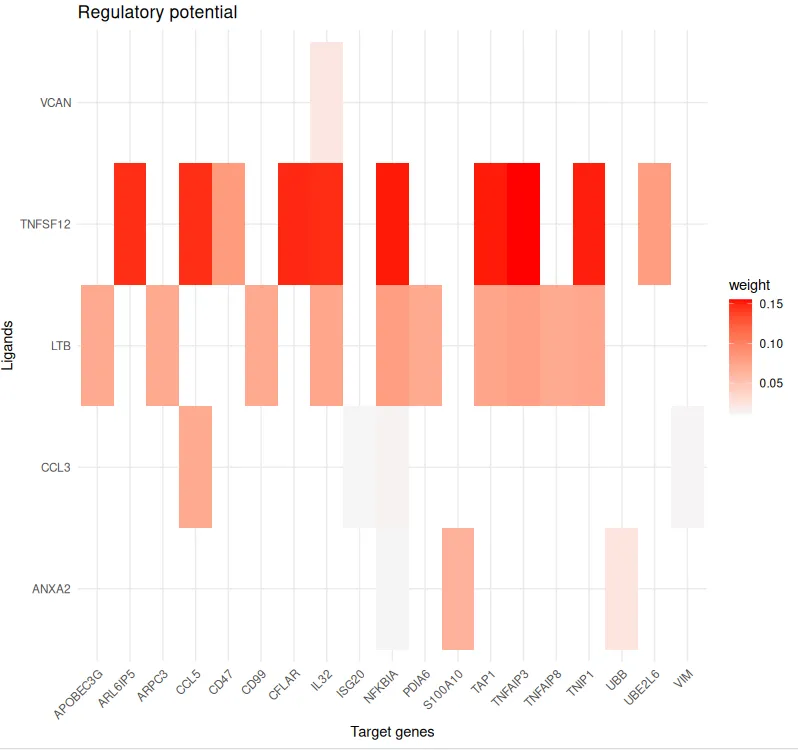

# 绘制热图
p2 <- top_targets_per_ligand %>%
  ggplot(aes(x = target, y = ligand, fill = weight)) +
  geom_tile() +
  scale_fill_gradient(low = "whitesmoke", high = "red") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1)) +
  labs(title = "Regulatory potential", x = "Target genes", y = "Ligands")

print(p2)

# 获取接收细胞中表达的受体
receiver_expression <- GetAssayData(seuratObj, slot = "data")[, receiver_cells]
receiver_expression <- rowMeans(receiver_expression)
expressed_receptors <- names(receiver_expression)[receiver_expression > 0.1]

# 查找活跃配体对应的受体
lr_network_top <- lr_network %>%
  filter(from %in% best_ligands & to %in% expressed_receptors)

# 按配体-受体表达水平排序
ligand_receptor_pairs <- lr_network_top %>%
  mutate(
    ligand_expression = sender_expression[from],
    receptor_expression = receiver_expression[to]
  ) %>%
  filter(!is.na(ligand_expression) & !is.na(receptor_expression)) %>%
  arrange(-ligand_expression * receptor_expression)

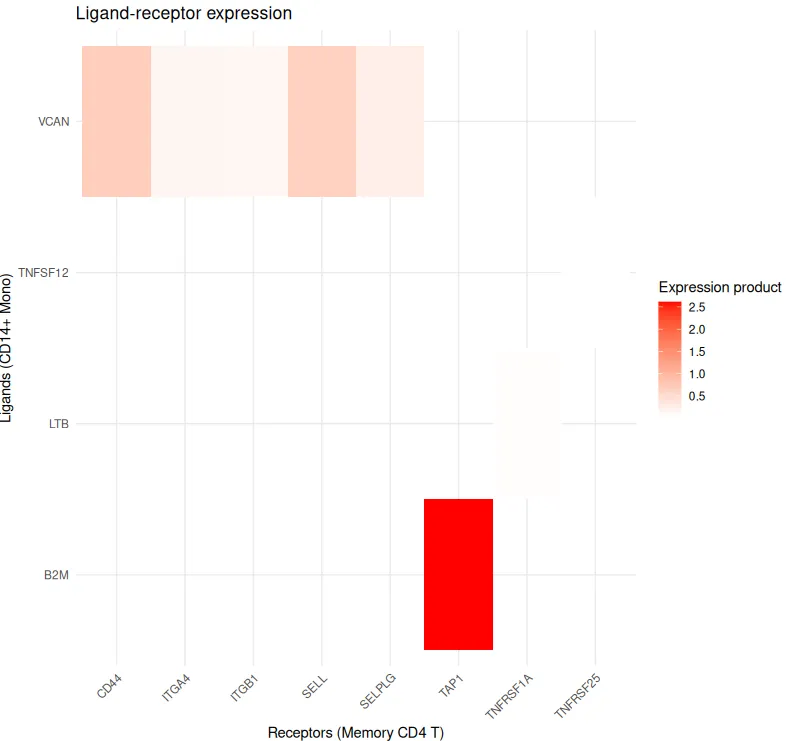

# 创建热图
p3 <- ligand_receptor_pairs %>%
  head(20) %>%  # 取前20对
  ggplot(aes(x = to, y = from, fill = ligand_expression * receptor_expression)) +
  geom_tile() +
  scale_fill_gradient(low = "white", high = "red", name = "Expression product") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1)) +
  labs(title = "Ligand-receptor expression", x = "Receptors (Memory CD4 T)", y = "Ligands (CD14+ Mono)")

print(p3)

# 网络图可视化
library(igraph)

# 选择前15对配体-受体对
top_pairs <- ligand_receptor_pairs %>%
  top_n(15, ligand_expression * receptor_expression)

# 创建清晰的边和节点数据
edges <- top_pairs[, c("from", "to")]
nodes <- data.frame(
  name = unique(c(as.character(edges$from), as.character(edges$to))),
  stringsAsFactors = FALSE
)
nodes$type <- ifelse(nodes$name %in% edges$from, "ligand", "receptor")

# 创建图形
g <- graph_from_data_frame(edges, vertices = nodes, directed = TRUE)

# 设置图形布局
layout <- layout_as_bipartite(g,
                              types = nodes$type == "ligand",
                              hgap = 2,
                              vgap = 1)

# 设置节点颜色
V(g)$color <- ifelse(nodes$type == "ligand", "lightblue", "pink")

# 设置标签颜色
V(g)$label.color <- "black"

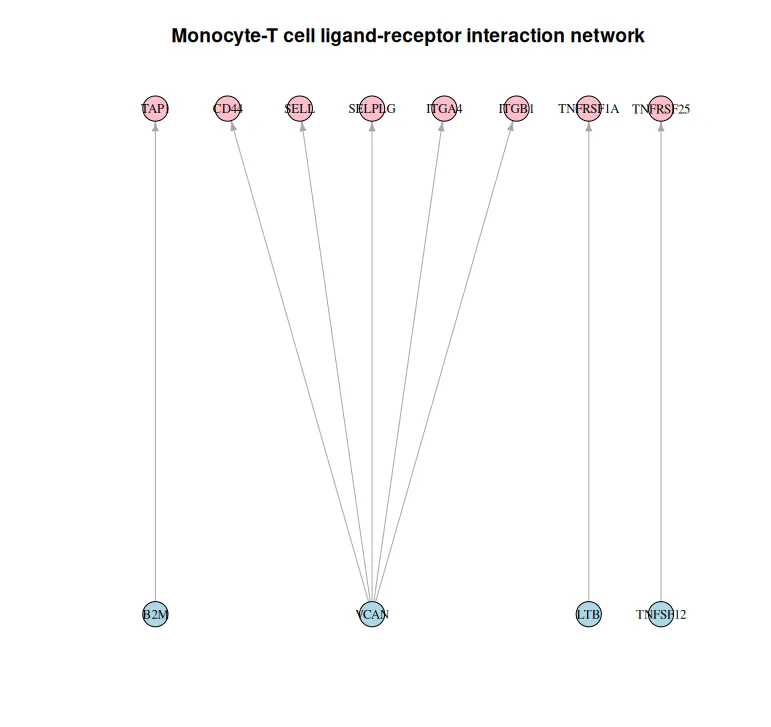

# 绘制网络图
plot(g,
     layout = layout,
     vertex.size = 10,
     vertex.label = V(g)$name,
     vertex.label.cex = 0.8,
     edge.arrow.size = 0.5,
     main = "Monocyte-T cell ligand-receptor interaction network")

legend("bottomright",
       legend = c("Ligand", "Receptor"),
       pch = 21,
       pt.bg = c("lightblue", "pink"),
       pt.cex = 2,
       cex = 0.8,
       bty = "n")

# 定义多个发送细胞类型
sender_cells_CD14 <- WhichCells(seuratObj, expression = seurat_annotations == "CD14+ Mono")
sender_cells_FCGR3A <- WhichCells(seuratObj, expression = seurat_annotations == "FCGR3A+ Mono")
sender_cells_B <- WhichCells(seuratObj, expression = seurat_annotations == "B")

# 获取各发送细胞类型的表达特征
sender_expression_CD14 <- rowMeans(GetAssayData(seuratObj, slot = "data")[, sender_cells_CD14])
sender_expression_FCGR3A <- rowMeans(GetAssayData(seuratObj, slot = "data")[, sender_cells_FCGR3A])
sender_expression_B <- rowMeans(GetAssayData(seuratObj, slot = "data")[, sender_cells_B])

# 筛选各细胞类型表达的配体
expressed_ligands_CD14 <- names(sender_expression_CD14)[sender_expression_CD14 > 0.1]
expressed_ligands_FCGR3A <- names(sender_expression_FCGR3A)[sender_expression_FCGR3A > 0.1]
expressed_ligands_B <- names(sender_expression_B)[sender_expression_B > 0.1]

# 与已知配体数据库求交集
expressed_ligands_CD14 <- intersect(expressed_ligands_CD14, unique(lr_network$from))
expressed_ligands_FCGR3A <- intersect(expressed_ligands_FCGR3A, unique(lr_network$from))
expressed_ligands_B <- intersect(expressed_ligands_B, unique(lr_network$from))

# 比较不同发送细胞类型的配体表达
venn_data <- list(
  `CD14+ Mono` = expressed_ligands_CD14,
  `FCGR3A+ Mono` = expressed_ligands_FCGR3A,
  `B cell` = expressed_ligands_B
)

# 如果安装了VennDiagram包，可以可视化比较
# library(VennDiagram)
# venn.plot <- venn.diagram(venn_data, filename = NULL)
# grid.draw(venn.plot)
