scRNA-seq 细胞通信 分析教程（长文+代码）

conda create -n env_cellphonedb python=3.7
conda activate env_cellphonedb
pip install cellphonedb

library(Seurat)
library(Matrix)
library(dplyr)

counts <- readMM("DS4/matrix.mtx.gz")
metadata <- read.table("DS4/metadata.tsv.gz")
features <- read.table("DS4/features.tsv.gz")[,1]
dimnames(counts) <- list(features, rownames(metadata))
seurat <- CreateSeuratObject(counts = counts, meta.data = metadata)

seurat <- NormalizeData(seurat) %>%
  FindVariableFeatures(nfeatures = 3000) %>%
  ScaleData() %>%
  RunPCA(npcs = 50) %>%
  RunUMAP(dims=1:20)

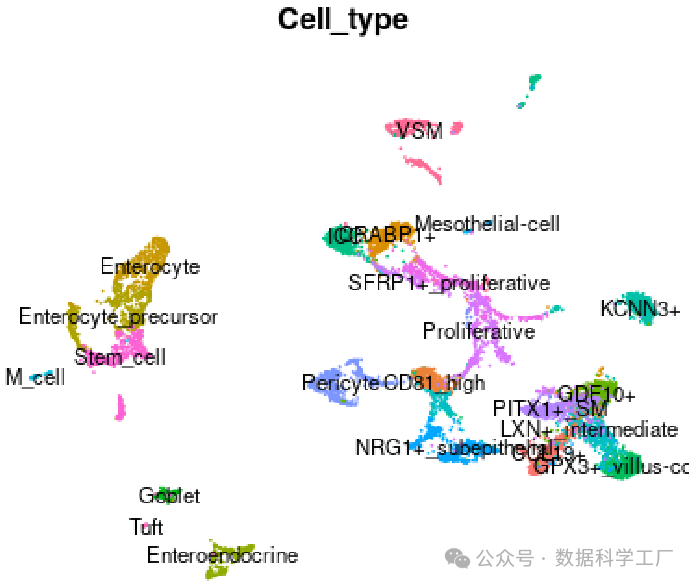

UMAPPlot(seurat_int, group.by="Cell_type", label=T) & NoAxes() & NoLegend()

expr_mat <- as.matrix(seurat@assays$RNA@data)
write.table(expr_mat, file="DS4/expr.txt", quote=F, sep="\t")
write.table(data.frame(Cell_bc = colnames(seurat), Cell_type = seurat$Cell_type),
            file="DS4/metadata.txt", row.names=F, quote=F, sep="\t")

# go to the folder with the generated expr.txt and metadata.txt files
cd DS4

# make sure to activate the cellphonedb conda environment, if conda is used
conda activate env_cellphonedb

# run cellphonedb
cellphonedb method statistical_analysis --counts-data gene_name metadata.txt expr.txt

library(gplots)

p <- read.csv("DS4_cellphonedb/out/pvalues.txt", header=T, sep="\t", check.names=F)
num_pairs <- colSums(p[,-(1:11)] < 0.01)
num_pairs <- data.frame(partner1 = sapply(strsplit(names(num_pairs),"\\|"),"[",1),
                        partner2 = sapply(strsplit(names(num_pairs),"\\|"),"[",2),
                        num = num_pairs)
mat_num_pairs <- sapply(sort(unique(num_pairs$partner1)), function(x)
  sapply(sort(unique(num_pairs$partner2)), function(y)
    num_pairs$num[which(num_pairs$partner1 == x & num_pairs$partner2 == y)]))

bluered_colscheme <- colorRampPalette(c("#4575B4","#9DCEE3","#EFE9C3","#FA9D59","#D73027"))

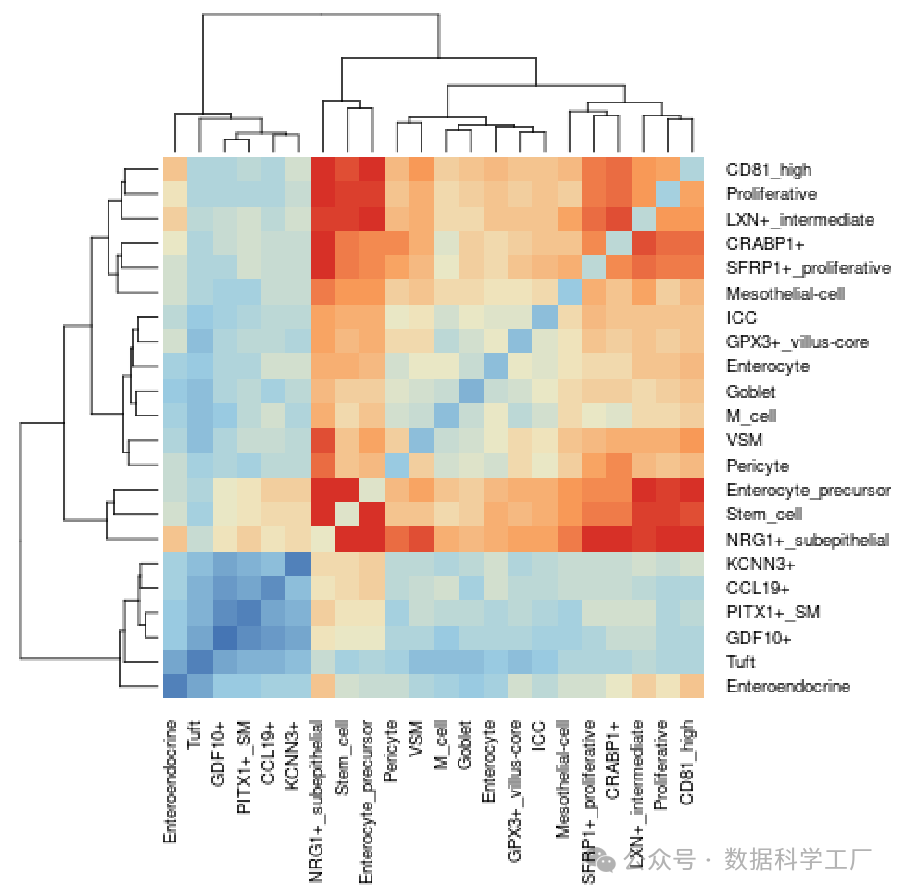

heatmap.2(mat_num_pairs + t(mat_num_pairs) - diag(diag(mat_num_pairs)),
          trace="none", scale="none", col = bluered_colscheme(30), key=F, keysize=0.8, margins = c(9,9))

p <- p[p$secreted=="True" &
         ((p$receptor_a == "True" & p$receptor_b == "False") |
          (p$receptor_a == "False" & p$receptor_b == "True")),]

idx <- which(p$receptor_a == "False")
num_pairs <- colSums(p[idx,-(1:11)] < 0.05)
num_pairs <- data.frame(from = sapply(strsplit(names(num_pairs),"\\|"),"[",1),
                        to = sapply(strsplit(names(num_pairs),"\\|"),"[",2),
                        num = num_pairs)
idx <- which(p$receptor_a == "True")
num_pairs_2 <- colSums(p[idx,-(1:11)] < 0.05)
num_pairs_2 <- data.frame(from = sapply(strsplit(names(num_pairs_2),"\\|"),"[",2),
                          to = sapply(strsplit(names(num_pairs_2),"\\|"),"[",1),
                          num = num_pairs_2)
num_pairs$num <- num_pairs$num + num_pairs_2$num
mat_num_pairs <- sapply(sort(unique(num_pairs$from)), function(x)
  sapply(sort(unique(num_pairs$to)), function(y)
    num_pairs$num[which(num_pairs$from == x & num_pairs$to == y)]))

bluered_colscheme <- colorRampPalette(c("#4575B4","#9DCEE3","#EFE9C3","#FA9D59","#D73027"))

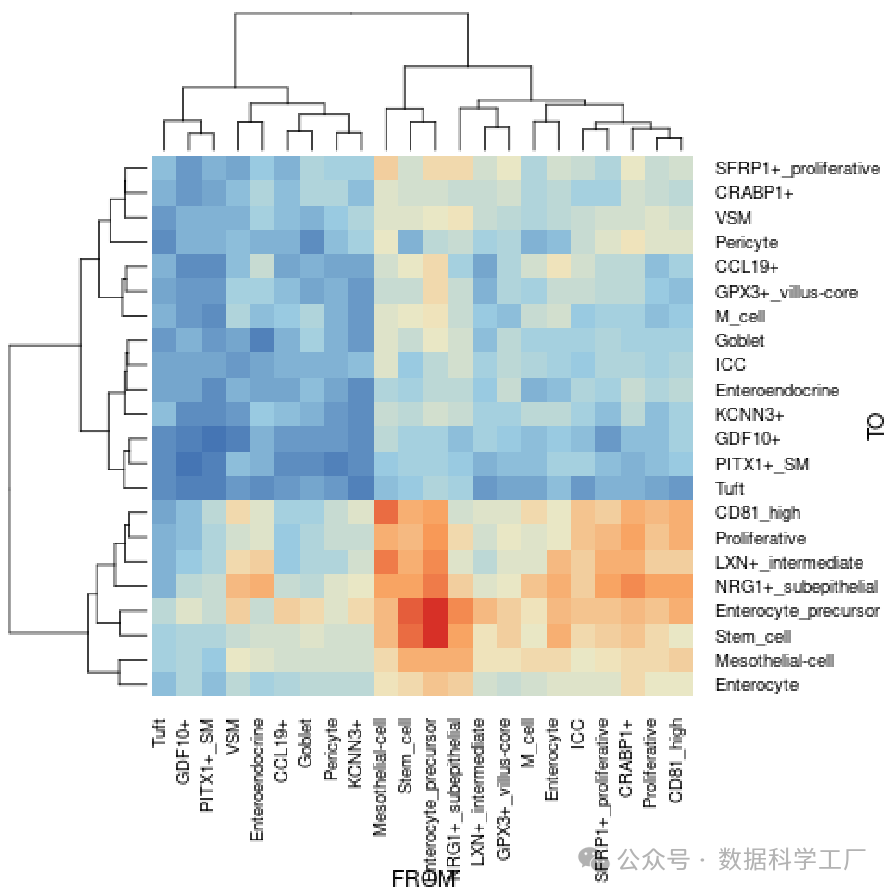

heatmap.2(mat_num_pairs,
          trace="none", scale="none", col = bluered_colscheme(30), key=F, keysize=0.8, margins = c(9,9),
          xlab="FROM", ylab="TO")

# install COMUNET
devtools::install_github("ScialdoneLab/COMUNET/COMUNET")
# You may fail to install COMUNET with the error of SMDTools being missing and cannot be installed.
# This is because SMDTools has been removed from the CRAN repository.
# In that case, one can install the package from its archive, as following
install.packages("R.utils")
install.packages("https://cran.r-project.org/src/contrib/Archive/SDMTools/SDMTools_1.1-221.2.tar.gz")
devtools::install_github("ScialdoneLab/COMUNET/COMUNET")

library(COMUNET)
# read CellPhoneDB complex and gene info
complex_input <- read.csv("https://raw.githubusercontent.com/Teichlab/cellphonedb-data/master/data/complex_input.csv")
complex_input$complex_name <- gsub("_", " ", complex_input$complex_name)
gene_input <- read.csv("https://raw.githubusercontent.com/Teichlab/cellphonedb-data/master/data/gene_input.csv")

# read CellPhoneDB output
CellPhoneDB_output <- read.csv("out/significant_means.txt", sep = "\t", check.names = F)
CellPhoneDB_output <- CellPhoneDB_output[!duplicated(CellPhoneDB_output$interacting_pair),]
rownames(CellPhoneDB_output) <- CellPhoneDB_output$interacting_pair
CellPhoneDB_output$receptor_a <- CellPhoneDB_output$receptor_a == "True"
CellPhoneDB_output$receptor_b <- CellPhoneDB_output$receptor_b == "True"

# Convert to COMUNET format
interactions <- convert_CellPhoneDB_output(CellPhoneDB_output = CellPhoneDB_output,
                                           complex_input = complex_input,
                                           gene_input = gene_input)

# Run communication clusters analysis
lrp_clusters <- lrp_clustering(weight_array = interactions$weight_array,
                               ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
                               nodes = interactions$nodes)

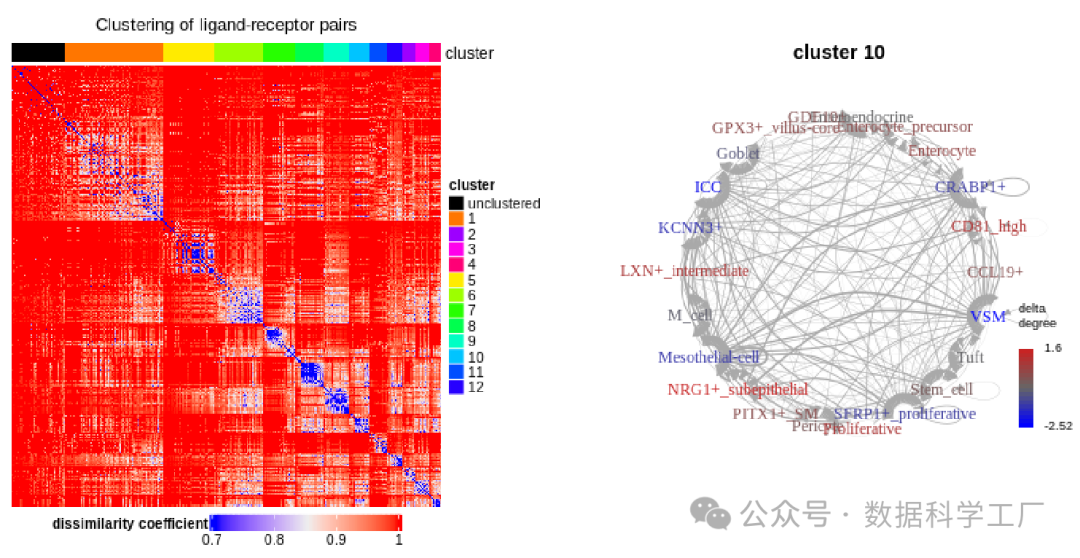

# Do heatmap
plot_cluster_heatmap(dissim_matrix = lrp_clusters$dissim_matrix,
                    lrp_clusters = lrp_clusters$clusters)

# Plot the communication mode of cluster 10 pairs as an example
cluster <- "cluster 10"
plot_communication_graph(LRP = cluster,
                         weight_array = lrp_clusters$weight_array_by_cluster[,,cluster],
                         ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
                         nodes = interactions$nodes,
                         is_cluster = T)
