挑战 | 具体表现 | 影响 |
---|---|---|
输入长度限制 | LLMs的上下文窗口有限(通常数千token),难以处理长文档 | 需分块处理,但分块可能破坏语义连贯性 |
上下文碎片化 | 固定分块策略忽略语义边界,导致信息割裂 | 检索不完整,生成结果缺乏连贯性 |
位置偏差 | LLMs对文档开头信息更敏感,中间/尾部信息易被忽略 | 关键信息可能未被有效检索或利用 |
效率与效果权衡 | 传统分块效率高但牺牲语义;高级方法(如上下文增强)计算成本高 | 实际应用中需平衡资源消耗与性能 |
具体问题
研究意义
以下是针对检索增强生成(RAG)中分块策略研究的归纳总结:
主要已有方法或技术路线
方法名称 | 核心思想 | 技术特点 |
---|---|---|
固定尺寸分块 | 将文档均等分割为固定长度的文本块 | 简单高效,但忽略语义边界 |
语义分块 | 根据语义边界(如段落、主题)动态分割文本 | 基于语义模型检测断点,保留局部上下文 |
延迟分块 | 先对整个文档进行词元级嵌入,再分割为块并聚合 | 利用长上下文嵌入模型保留全局信息 |
上下文检索 | 分块后通过LLM生成全局上下文并预置到每个块中,再结合混合检索(BM25+嵌入) | 增强局部块的语义连贯性,但需额外生成上下文 |
方法对比与优缺点分析
方法 | 优点 | 缺点 |
---|---|---|
固定尺寸分块 | 实现简单、计算高效;兼容性强 | 破坏上下文连贯性;可能导致关键信息分割 |
语义分块 | 保留局部语义结构;减少信息碎片化 | 依赖语义模型;计算成本较高;动态分割不稳定 |
延迟分块 | 保留全局上下文;适配长文本嵌入模型 | 嵌入模型性能影响显著;长文档处理效率低;部分模型(如BGE-M3)表现下降 |
上下文检索 | 语义连贯性最佳(NDCG@5提升5%);支持混合检索提升召回率 | 计算资源需求高(需LLM生成上下文);长文档内存占用大 |
可以看出, 当前RAG分块策略的研究聚焦于平衡上下文保留与计算效率。传统方法(固定分块、语义分块)在简单场景中仍具优势,而延迟分块和上下文检索在复杂语义任务中表现更优但代价高昂。未来需探索轻量化上下文增强、长文档优化技术,并建立统一评估标准以推动实际应用。
作者的研究思路主要受到以下前人工作的启发:
作者提出新方法的动机源于以下核心观察与假设:
论文的核心创新点及与现有工作的对比:
创新点 | 技术细节 | 与现有工作的差异化 | 效果对比 |
---|---|---|---|
Late Chunking(延迟分块) | 先对整个文档进行嵌入,再分块并聚合向量。 | 区别于传统“先分块后嵌入”,避免分块前的上下文丢失。 | 优势:- 保留全局语义(如文档主题一致性);- 计算效率高(无需LLM生成额外内容)。劣势:- 对长文档嵌入模型依赖性强(如BGE-M3效果差);- 部分场景下相关性下降(表3中MsMarco数据集表现弱于早期分块)。 |
Contextual Retrieval(上下文检索) | 分块后通过LLM生成上下文摘要(如Phi-3模型),并与BM25稀疏向量融合排序。 | 结合语义(密集向量)与精确匹配(稀疏向量),优于单一检索策略。 | 优势:- 提升检索完整性(NDCG@5提高5.3%,表5);- 缓解位置偏差(通过上下文补充关键信息)。劣势:- 计算成本高(GPU内存占用达20GB);- 依赖LLM生成质量(小模型如Phi-3可能表现不稳定)。 |
动态分块模型优化 | 测试Simple-Qwen和Topic-Qwen分块模型,结合主题边界检测。 | 超越传统固定或语义分块,但需权衡生成稳定性与计算效率。 | 优势:- 自适应内容分块(如按主题划分);- 提升下游任务性能(Jina-V3模型NDCG@5达0.384)。劣势:- 生成不一致性(分块边界波动);- 处理时间增加(Topic-Qwen耗时4倍于固定分块)。 |
论文针对传统RAG(检索增强生成)系统中固定分块(fixed-size chunking)导致的上下文碎片化问题,提出了两种改进策略:
完整文档 → Token级嵌入 → 分块 → 池化 → 块嵌入
Jina有篇文章,更详细的解释了Late Chunking,文章链接如下;
长文本表征模型中的后期分块
https://jina.ai/news/late-chunking-in-long-context-embedding-models/
"Late Chunking"方法首先将嵌入模型的 transformer 层应用于整个文本或尽可能多的文本。这会为每个 token 生成一个包含整个文本信息的向量表示序列。随后,对这个 token 向量序列的每个块应用平均池化,生成考虑了整个文本上下文的每个块的嵌入。与生成独立同分布(i.i.d.)块嵌入的朴素编码方法不同,Late Chunking 创建了一组块嵌入,其中每个嵌入都"以"前面的嵌入为条件,从而为每个块编码更多的上下文信息。

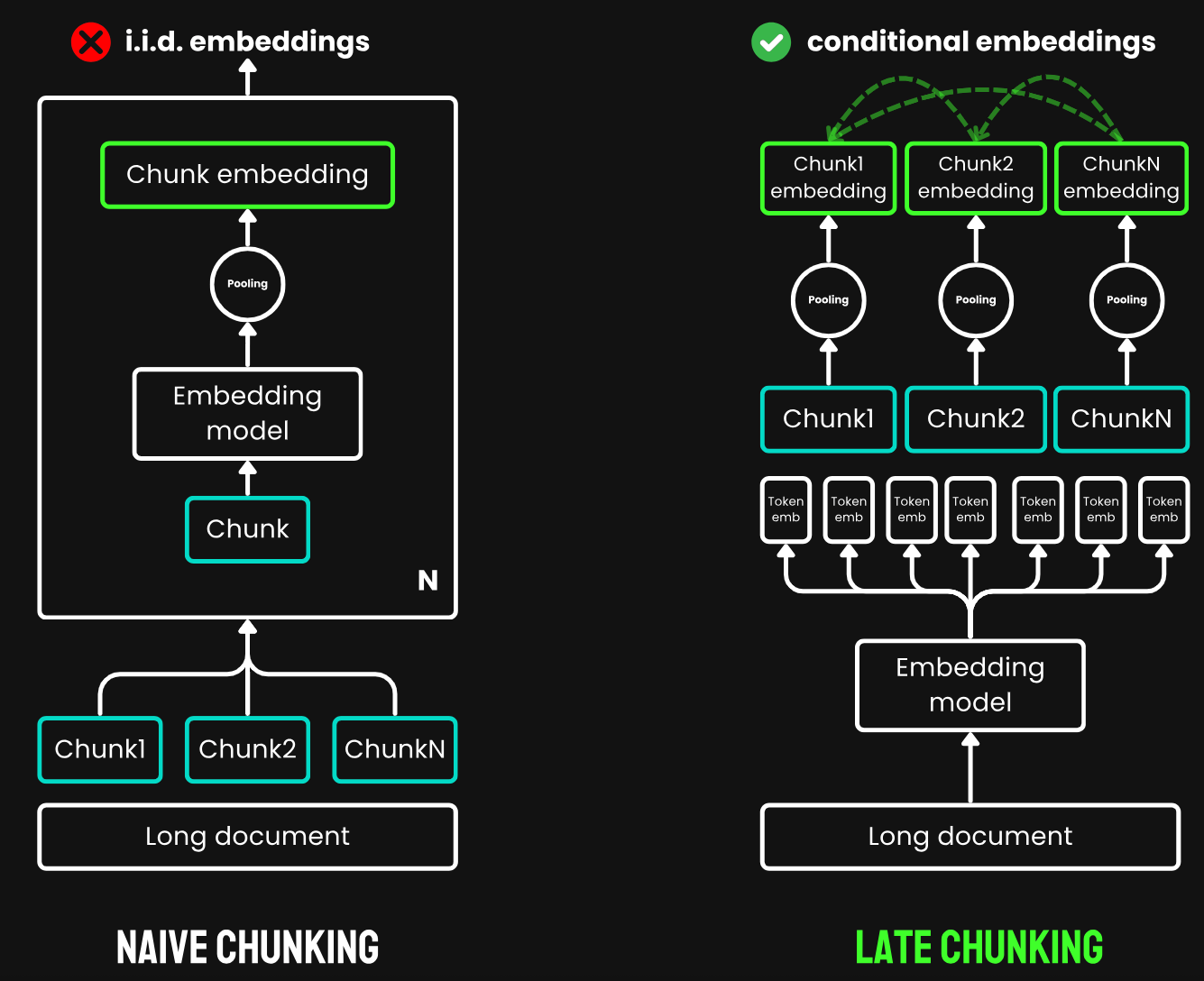

传统分块策略(左)和 Late Chunking 策略(右)的示意图。

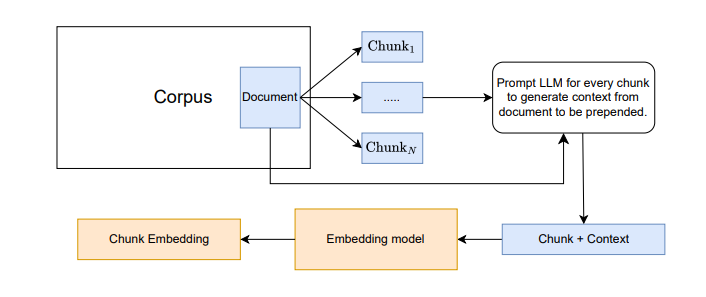

分块 → LLM生成上下文 → 块+上下文嵌入 → 混合检索(BM25+密集检索) → 重排序
上下文生成提示模板:
"基于以下文档,为当前块生成上下文摘要:[文档内容] [当前块]"
混合检索的权重分配:
嵌入类型 | 权重 |
---|---|
密集嵌入 | 1.0 |
BM25稀疏嵌入 | 0.25 |
重排序模型:Jina Reranker V2(交叉编码器架构,计算查询与块的相关性得分)。
分块策略 | 优点 | 缺点 |
---|---|---|
固定窗口分块 | 计算效率高 | 忽略语义边界 |
语义分块(Jina) | 保留语义连贯性 | 依赖外部API,速度较慢 |
动态分块(Qwen) | 自适应文档结构/主题 | 生成不稳定,计算成本高 |
方法 | NDCG@5 | MAP@5 | F1@5 |
---|---|---|---|
传统分块(Early) | 0.303 | 0.137 | 0.193 |
延迟分块(Late) | 0.380 | 0.103 | 0.185 |
上下文检索(RFR) | 0.317 | 0.146 | 0.206 |
方法 | VRAM占用 | 处理时间(NFCorpus) |
---|---|---|
传统分块 | 5-10GB | 30分钟 |
延迟分块 | 10-15GB | 60分钟 |
上下文检索 | 20GB+ | 120分钟+ |
论文通过系统实验验证了两种方法的互补性,为RAG系统的分块策略选择提供了明确指导。
数据集 | 任务 | 特点 |
---|---|---|
NFCorpus | 检索性能评估 | 长文档(平均长度长),需处理上下文碎片化问题;子集实验(20%数据)用于降低计算开销。 |
MSMarco | 问答生成评估 | 短文本段落,缺乏完整文档上下文,用于测试生成任务中信息整合能力。 |
任务设置:
指标 | 含义 |
---|---|
NDCG@k | 归一化折损累积增益,衡量前 k 个结果的排序质量,重视高相关性结果的排名。 |
MAP@k | 平均精度均值,衡量所有查询的检索精度均值,关注相关结果的位置分布。 |
F1@k | 精确率与召回率的调和平均,平衡检索结果中相关性与完整性的权衡。 |
方法类型 | 方法细节 | 特点 |
---|---|---|
传统 RAG | 早期分块(固定窗口或语义分块) + 嵌入模型(如 Jina-V3、BGE-M3)。 | 分块后嵌入,可能丢失全局上下文。 |
Late Chunking | 先嵌入完整文档,再分块并池化(mean pooling)生成分块嵌入。 | 保留全局上下文,计算效率较高。 |
Contextual Retrieval | 分块后通过 LLM 生成上下文(如 Phi-3.5-mini),结合 Rank Fusion(BM25 + 密集嵌入) | 增强语义连贯性,但需额外生成步骤和 GPU 资源。 |
对比实验设置:
实验组 | 分块策略 | 嵌入模型 | 数据集 | 关键参数 |
---|---|---|---|---|
RQ#1 | Early vs Late | Stella-V5, Jina-V3 | NFCorpus, MSMarco | 分块大小 512 字符,动态分块模型 |
RQ#2 | Contextual vs 传统 | Jina-V3, BGE-M3 | NFCorpus 子集 | Rank Fusion 权重(4:1) |
组件 | 配置/参数 |
---|---|
硬件 | NVIDIA RTX 4090(24GB VRAM),受限于显存,部分实验使用数据子集。 |
生成模型 | Phi-3.5-mini-instruct(4-bit 量化),用于生成上下文和问答任务。 |
嵌入模型 | Jina-V3(MTEB 排名 53)、Stella-V5(排名 5)、BGE-M3(排名 211)等。 |
分块工具 | Jina-Segmenter(语义分块)、Simple-Qwen(动态分块)、Topic-Qwen(主题分块)。 |
检索库与工具 | Milvus 向量数据库(支持 BM25 与密集嵌入混合检索),Jina Reranker V2(重排序)。 |
验证严谨性体现
论文通过系统化的实验设计,验证了两种分块策略在不同场景下的权衡:Late Chunking 效率更优,Contextual Retrieval 语义更佳,为实际 RAG 系统优化提供了重要参考。
评估指标 | 上下文检索 (ContextualRankFusion) | 延迟分块 (Late Chunking) | 早期分块 (Early Chunking) |
---|---|---|---|
NDCG@5 | 0.317 | 0.309 | 0.312 (最佳嵌入模型) |
MAP@5 | 0.146 | 0.143 | 0.144 (最佳嵌入模型) |
F1@5 | 0.206 | 0.202 | 0.204 (最佳嵌入模型) |
计算资源消耗 | 高(需LLM生成上下文 + 重排序) | 中 | 低 |
适用场景 | 长文档、高语义连贯性需求 | 资源受限、效率优先 | 固定长度、简单任务 |
class BgeEmbedder():
def __init__(self):
self.model_id = 'BAAI/bge-m3'
self.model = AutoModel.from_pretrained(self.model_id, trust_remote_code=True).cuda();
self.tokenizer = AutoTokenizer.from_pretrained(self.model_id);
self.model.eval()
def get_model(self):
return self.model
def encode(self, chunks, task, max_length=512):
if type( chunks) == str:
chunks = [chunks]
chunks_embeddings = []
for chunk in chunks:
tokens = self.tokenizer(chunk, return_tensors='pt')['input_ids'].to("cuda")
with torch.no_grad():
token_embeddings = self.model(input_ids=tokens)[0]
pooled_embeddings = token_embeddings.sum(dim=1) / len(token_embeddings)
pooled_embeddings = F.normalize(pooled_embeddings, p=2, dim=1).squeeze(0)
chunks_embeddings.append(pooled_embeddings.to(dtype=torch.float32).detach().cpu().numpy())
if task == 'retrieval.query':
return chunks_embeddings
else:
return [chunks_embeddings]
# def encode(self, chunks, task, max_length=512):
# if type( chunks) == str:
# chunks = [chunks]
# chunks_embeddings = []
# for chunk in chunks:
# tokens = self.tokenizer(chunk, return_tensors='pt')['input_ids'].to("cuda")
# with torch.no_grad():
# token_embeddings = self.model(input_ids=tokens)[0]
# div = token_embeddings.size(1)
# pooled_embeddings = token_embeddings.sum(dim=1) / div
# pooled_embeddings = F.normalize(pooled_embeddings, p=2, dim=1).squeeze(0)
# chunks_embeddings.append(pooled_embeddings.to(dtype=torch.float32).detach().cpu().numpy())
# if task == 'retrieval.query':
# return chunks_embeddings
# else:
# return [chunks_embeddings]
def encodeLateChunking(self, text_token, span_annotation, task, max_length = None ):
with torch.no_grad():
token_embeddings = self.model(input_ids=text_token)[0]
outputs = []
for embeddings, annotations in zip(token_embeddings, span_annotation):
if (max_length is not None): # remove annotations which go bejond the max-length of the model
annotations = [
(start, min(end, max_length - 1))
for (start, end) in annotations
if start < (max_length - 1)
]
pooled_embeddings = [
embeddings[start:end].sum(dim=0) / (end - start)
for (start, end) in annotations
if (end - start) >= 1
]
pooled_embeddings = [
F.normalize(pooled_embedding.unsqueeze(-1), p=2, dim=0).squeeze(-1)
for pooled_embedding in pooled_embeddings
]
pooled_embeddings = [
embedding.to(dtype=torch.float32).detach().cpu().numpy()
for embedding in pooled_embeddings
]
outputs.append(pooled_embeddings)
return outputs
class ChunkContextualizer():
"""
This class is used to contextualize the chunks of text.
It gives to the model the document and the chunk of text to generate the context to be added to the chunk.
The model is a language model that generates the context.
"""
def __init__(self, corpus, prompt, examples, llm_id, segmenter,load_in_4bit = True): #model_template
self.corpus = corpus
self.prompt = prompt
self.examples = examples
self.segmenter = segmenter
#self.model_template = model_template
#self.chat_template = (model_template,"<|end|>")
self.llm_id = llm_id
self.load_in_4bit = load_in_4bit
dtype = None
self.llm_model, self.llm_tokenizer = FastLanguageModel.from_pretrained(
model_name = model_id,
dtype = dtype,
load_in_4bit = load_in_4bit,
)
self.llm_tokenizer = get_chat_template(self.llm_tokenizer,
chat_template = 'phi-3.5',#self.chat_template, # apply phi-3.5 chat template
mapping = {"role" : "from", "content" : "value", "user" : "human", "assistant" : "gpt"},
)
FastLanguageModel.for_inference(self.llm_model);
self.generation_config = GenerationConfig(eos_token_id=self.llm_tokenizer.convert_tokens_to_ids("<|end|>"))
def get_llm(self):
return self.llm_model
def get_formatted_prompt(self,doc,chunk):
ex = '\n'.join([f'CHUNK: {chunk}\nCONTEXT: {context}' for (chunk, context) in self.examples]) # format examples with chunk and context
return self.prompt.format(doc_content=doc, chunk_content=chunk, examples=ex) # format prompt with chunk, document and examples
def extract_llm_responses(self, conversation: str): # extract assistant responses from the conversation
# Regex to match assistant output between <|assistant|> and <|end|>
assistant_responses = re.findall(r"<\|assistant\|>(.*?)<\|end\|>", conversation, re.DOTALL)
return assistant_responses
def contextualize(self, chunking_size):
ids,texts = zip(*[ (key, value['text']) for (key,value) in self.corpus.items() ])
ids,texts = list(ids), list(texts)
chunks_ids,contextualized_chunks=[],[]
pbar = tqdm(total=len(texts), desc="Contextualizing Chunks", mininterval=60.0)
for i in range(len(texts)):
chunks = self.segmenter.segment(input_text=texts[i],max_chunk_length=chunking_size) # segment text into chunks with passed segmenter
for j in range(len(chunks)):
chunk = chunks[j]
doc = texts[i] # getting document for all the chunks
prompt = self.get_formatted_prompt(doc,chunk) # formatting prompt with current document and current chunk
messages=[{"from": "human", "value": prompt}]
inputs = self.llm_tokenizer.apply_chat_template( # apply chat template to the prompt to get the input
messages,
tokenize=True,
return_tensors="pt",
padding=True,
).to("cuda")
output_ids = self.llm_model.generate(
input_ids=inputs,
do_sample=False,
max_new_tokens=2000,
generation_config=self.generation_config,
)
output = self.llm_tokenizer.batch_decode(output_ids) # decode the output to text
generated_context = self.extract_llm_responses(output[0]) # extract context from output string
if generated_context: # only add non-empty entries
contextualized_chunks.append(chunk + '\n' + generated_context[0]) # append generated context to current chunk
chunks_ids.append(f'{ids[i]}:{j}')
pbar.update(1)
return contextualized_chunks, chunks_ids
其中提示语为:
contextual_retrieval_prompt = """
DOCUMENT:
{doc_content}
Here is the chunk we want to situate within the whole document
CHUNK:
{chunk_content}
Provide a concise context for the following chunk, focusing on its relevance within the overall document for the purposes of improving search retrieval of the chunk.
Answer only with the generated context and nothing else.
Output your answer after the phrase "The document provides an overview".
Think step by step.
Here there is an example you can look at.
EXAMPLE:
{examples}"""
这个提示语(prompt)是一个用于 上下文检索(contextual retrieval) 的模板,目的是帮助大语言模型(LLM)为给定的文本片段(chunk)生成一个简洁的上下文描述,从而提升检索效果。以下是它的详细解析:
