CATIA二次开发VBA入门——一些代码合集

Attribute VB_Name = "Module1"
Sub dd()
CATIA.Windows.Item(1).Activate
End Sub

Sub dd()
Dim MyViewer As Viewer3D
MsgBox CATIA.ActiveWindow.Name
Set MyViewer = CATIA.ActiveWindow.ActiveViewer
MyViewer.CaptureToFile catCaptureFormatBMP, "H:\MyImage.bmp"
End Sub

Sub dd()
Set documents1 = CATIA.Documents
Set odoc = documents1.Add("Product")
End Sub

Sub jk()
 CATIA.StartCommand "CompassDisplayOff"
 CATIA.StartCommand "CompassDisplayOn"
End Sub

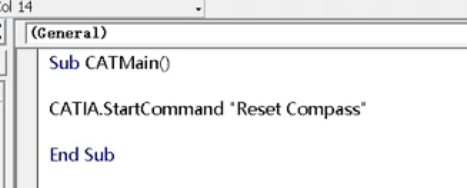

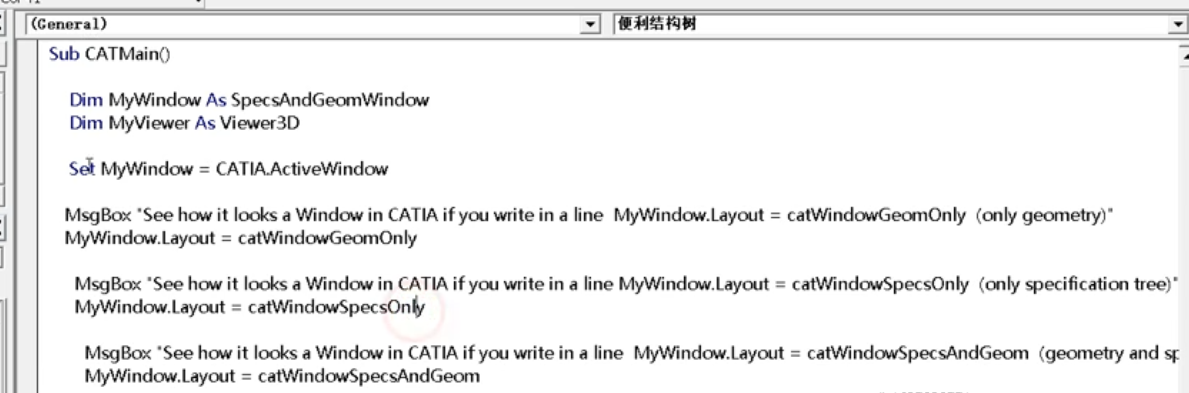

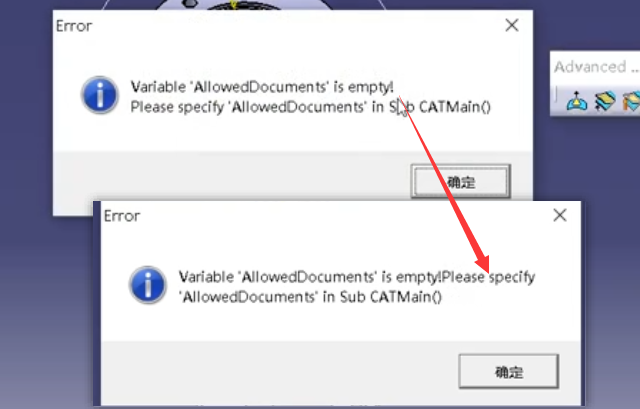

Sub CATMain()

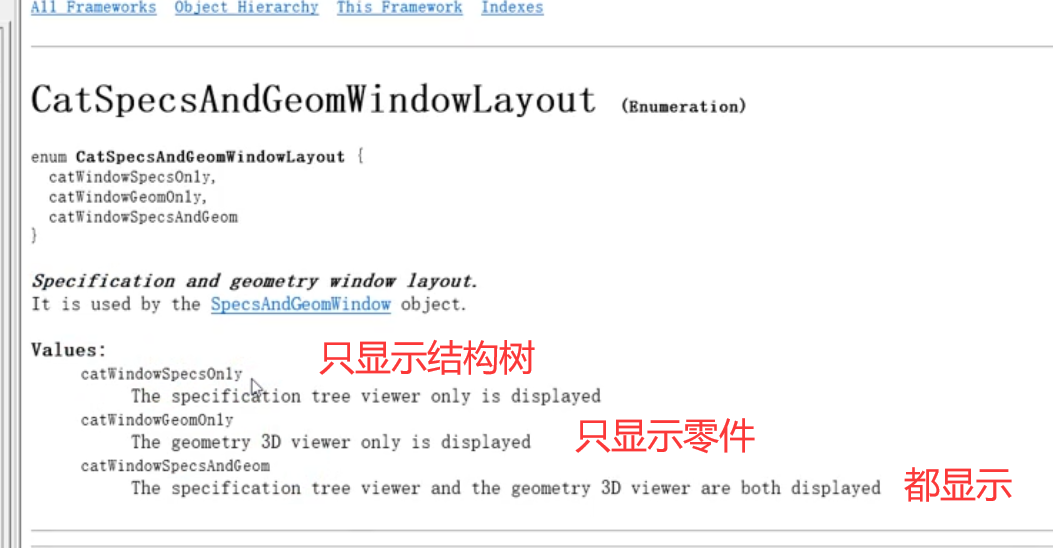

    Dim MyWindow As SpecsAndGeomWindow
    Dim MyViewer As Viewer3D

    Set MyWindow = CATIA.ActiveWindow

   MsgBox "See how it looks a Window in CATIA if you write in a line  MyWindow.Layout = catWindowGeomOnly  (only geometry)"
   MyWindow.Layout = catWindowGeomOnly

     MsgBox "See how it looks a Window in CATIA if you write in a line MyWindow.Layout = catWindowSpecsOnly  (only specification tree)"
     MyWindow.Layout = catWindowSpecsOnly

       MsgBox "See how it looks a Window in CATIA if you write in a line  MyWindow.Layout = catWindowSpecsAndGeom  (geometry and spec tree)"
       MyWindow.Layout = catWindowSpecsAndGeom

End Sub

Sub CATMain()
Dim dd As Window

Set dd = CATIA.ActiveWindow
dd.Layout = 1

End Sub

Sub dd()
Set document1 = CATIA.ActiveDocument
Set opart = document1.Part
Set obodies = opart.Bodies
Set obody = obodies.Item(obodies.Count)
Dim selection1 As Selection
Set selection1 = document1.Selection
'selection1.Add obody

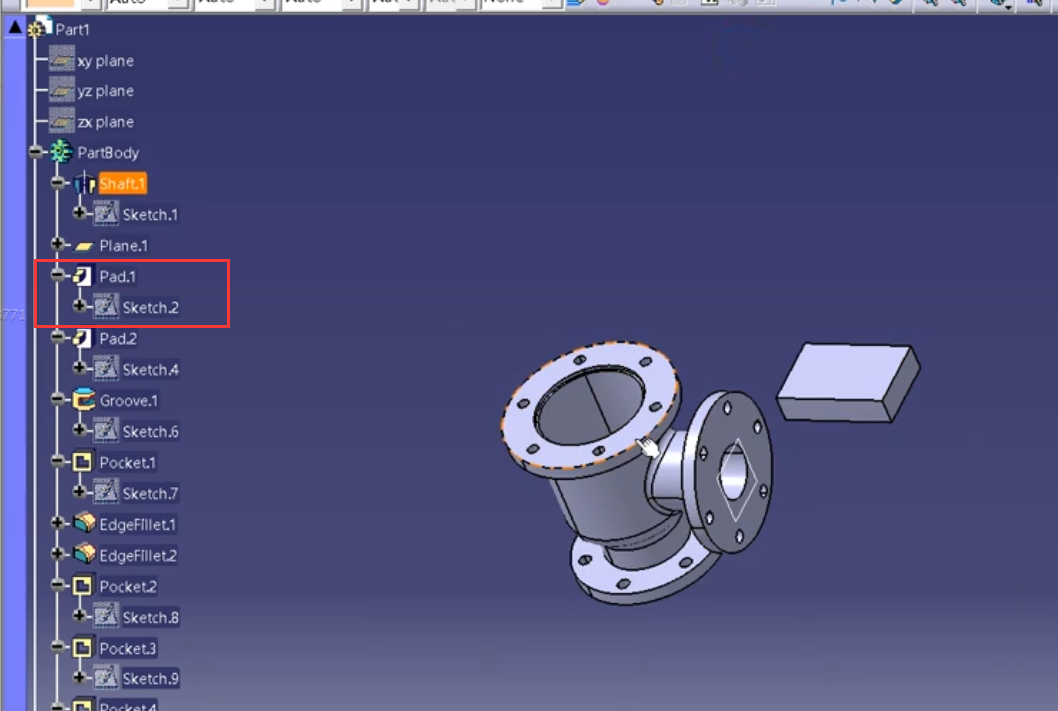

Set pad1 = opart.FindObjectByName("Pad.1")
Set pad11 = opart.FindObjectByName("Sketch.1")
selection1.Add pad1

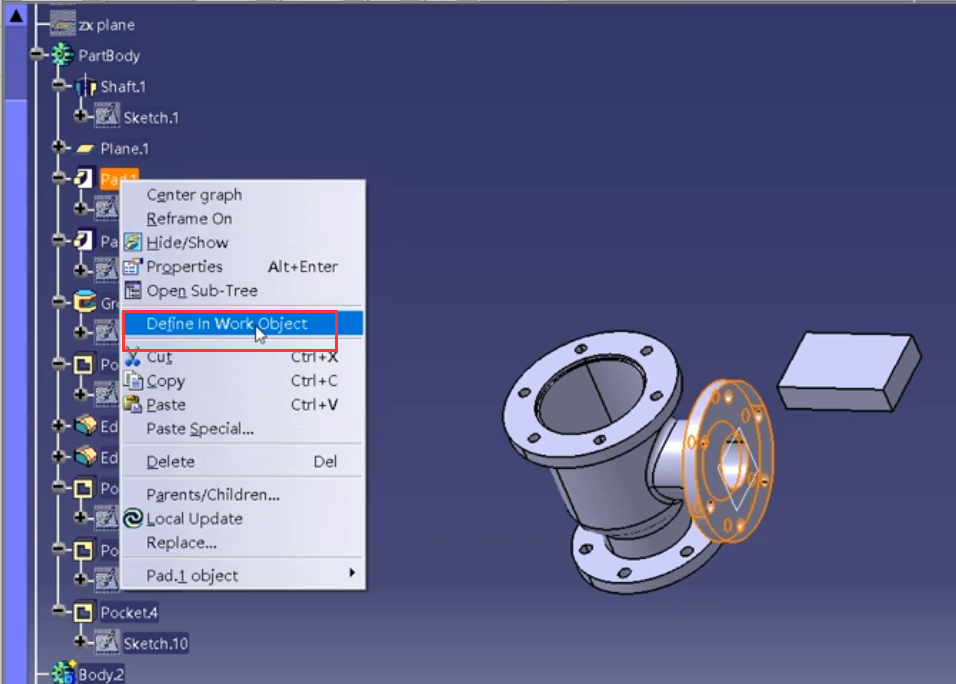

opart.InWorkObject = pad1
End Sub

Sub CATMain()
Dim FileToRead As String
FileToRead = "H:\test\Part1.CATPart"
 Dim Doc As Document
 Set Doc = CATIA.Documents.NewFrom(FileToRead)
End Sub

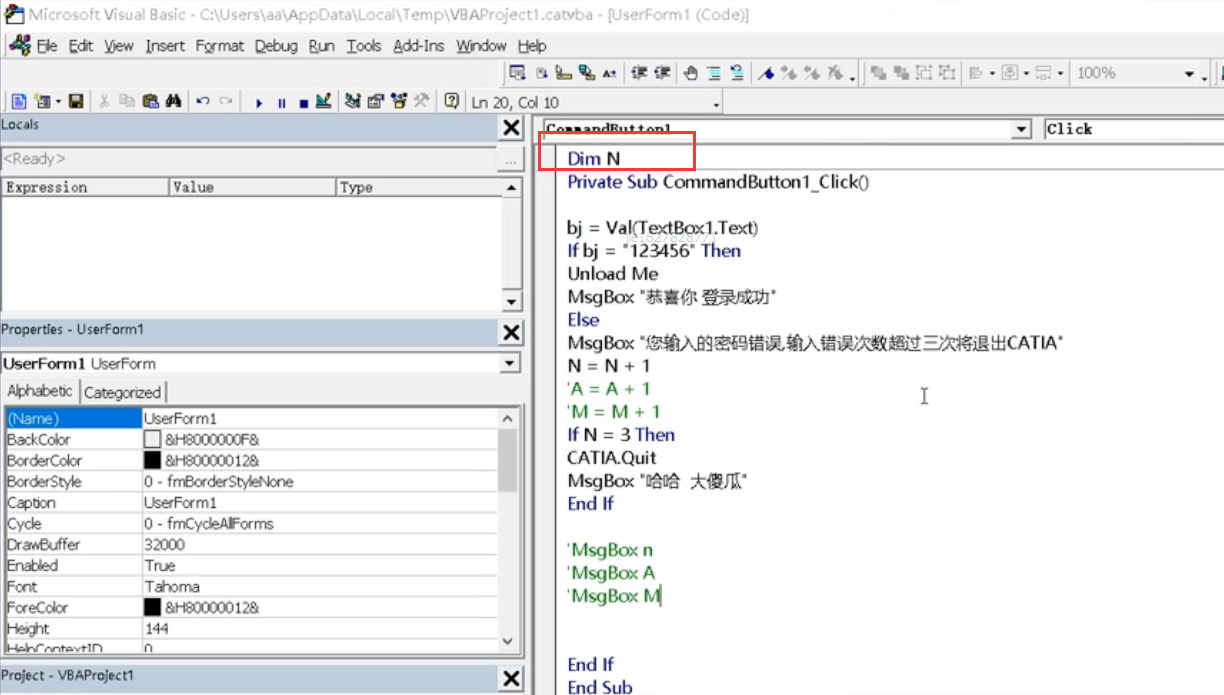

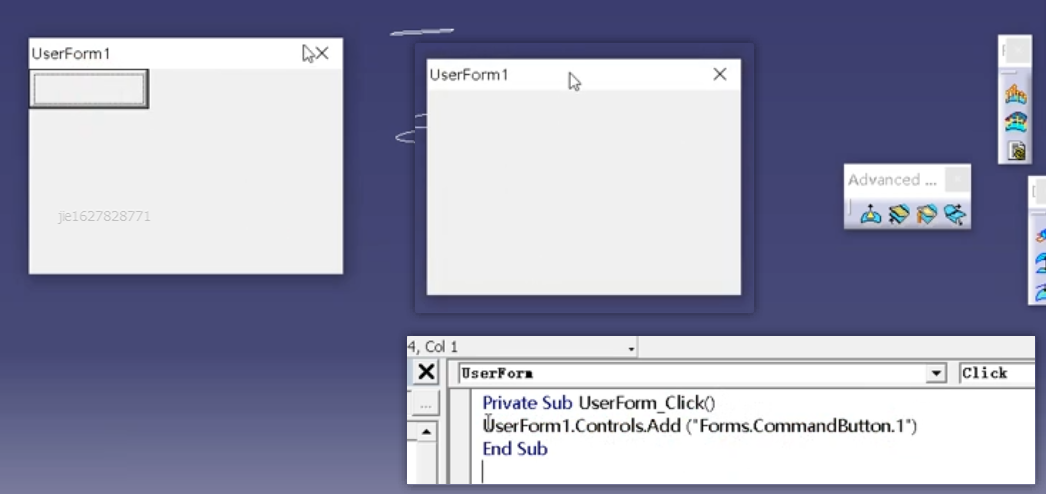

Public n As Integer

Private Sub Command1_Click()
bj = Val(TextBox1.Text)
If bj = "123456" Then
Unload Me
MsgBox "恭喜你 登录成功"
Else
MsgBox "您输入的密码错误,输入错误次数超过三次将退出CATIA"
n = n + 1
If n = 3 Then
CATIA.Quit
MsgBox "哈哈  大傻瓜"
End If
End If
End Sub

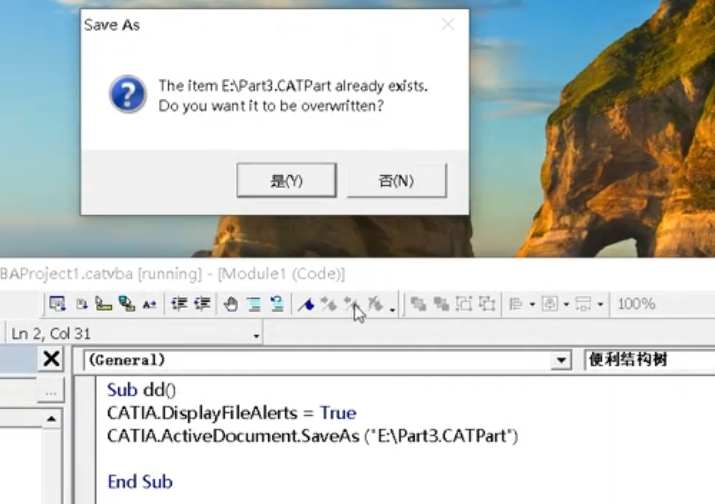

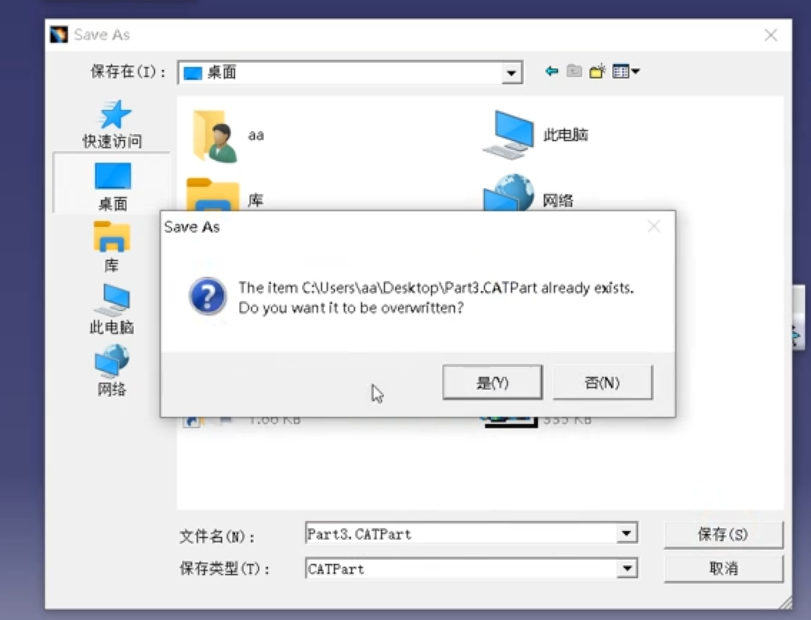

CATIA.Application.DisplayFileAlerts = False

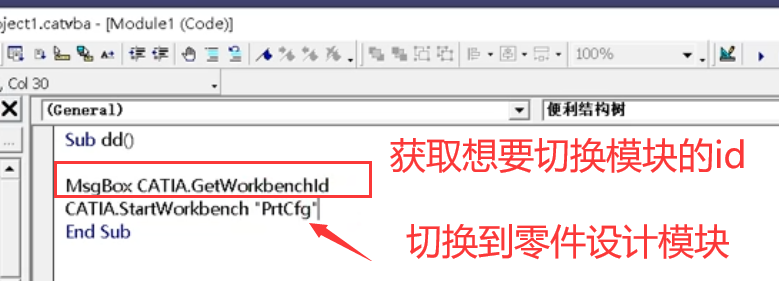

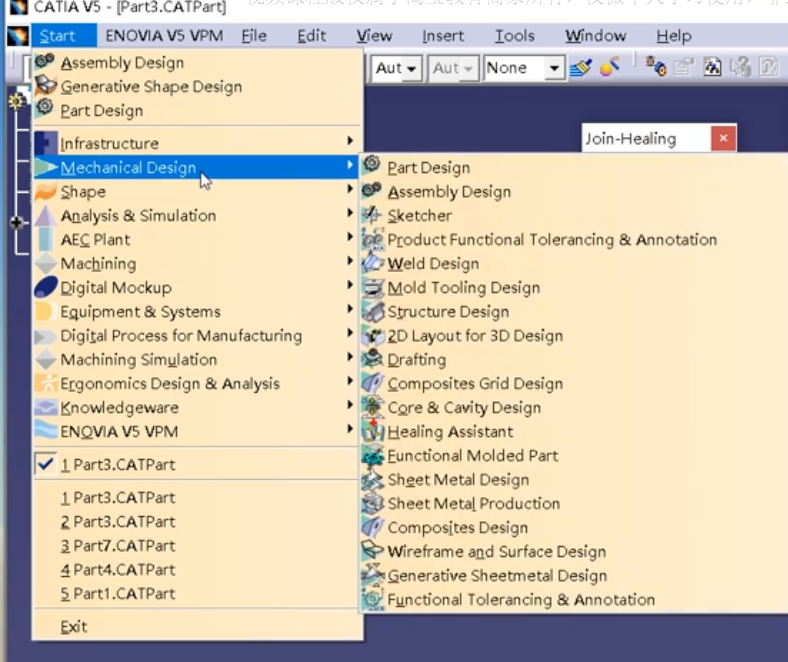

Sub dd()

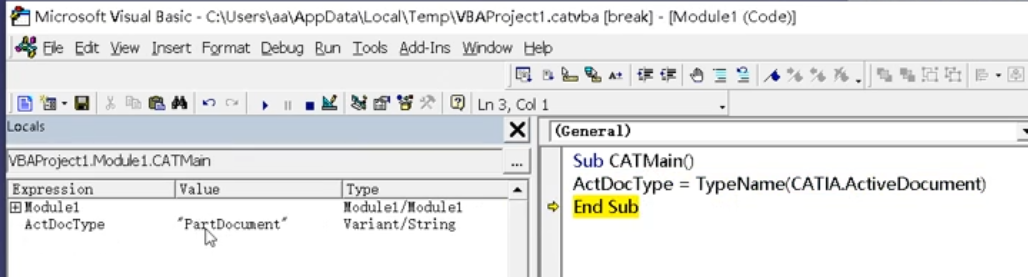

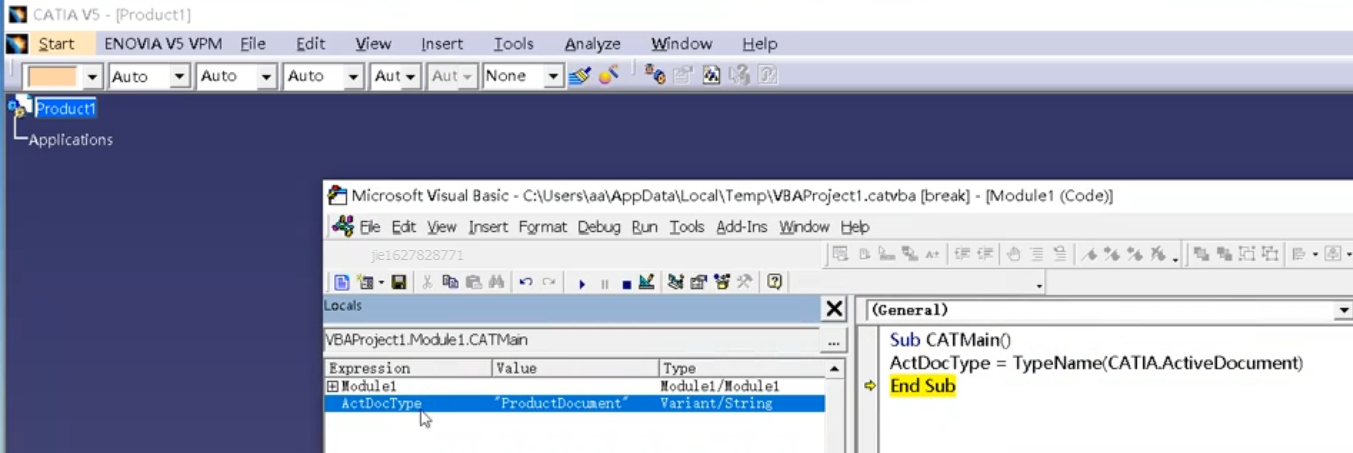

ActDocType = TypeName(CATIA.ActiveDocument)
MsgBox CATIA.GetWorkbenchId
CATIA.StartWorkbench "PrtCfg"
End Sub

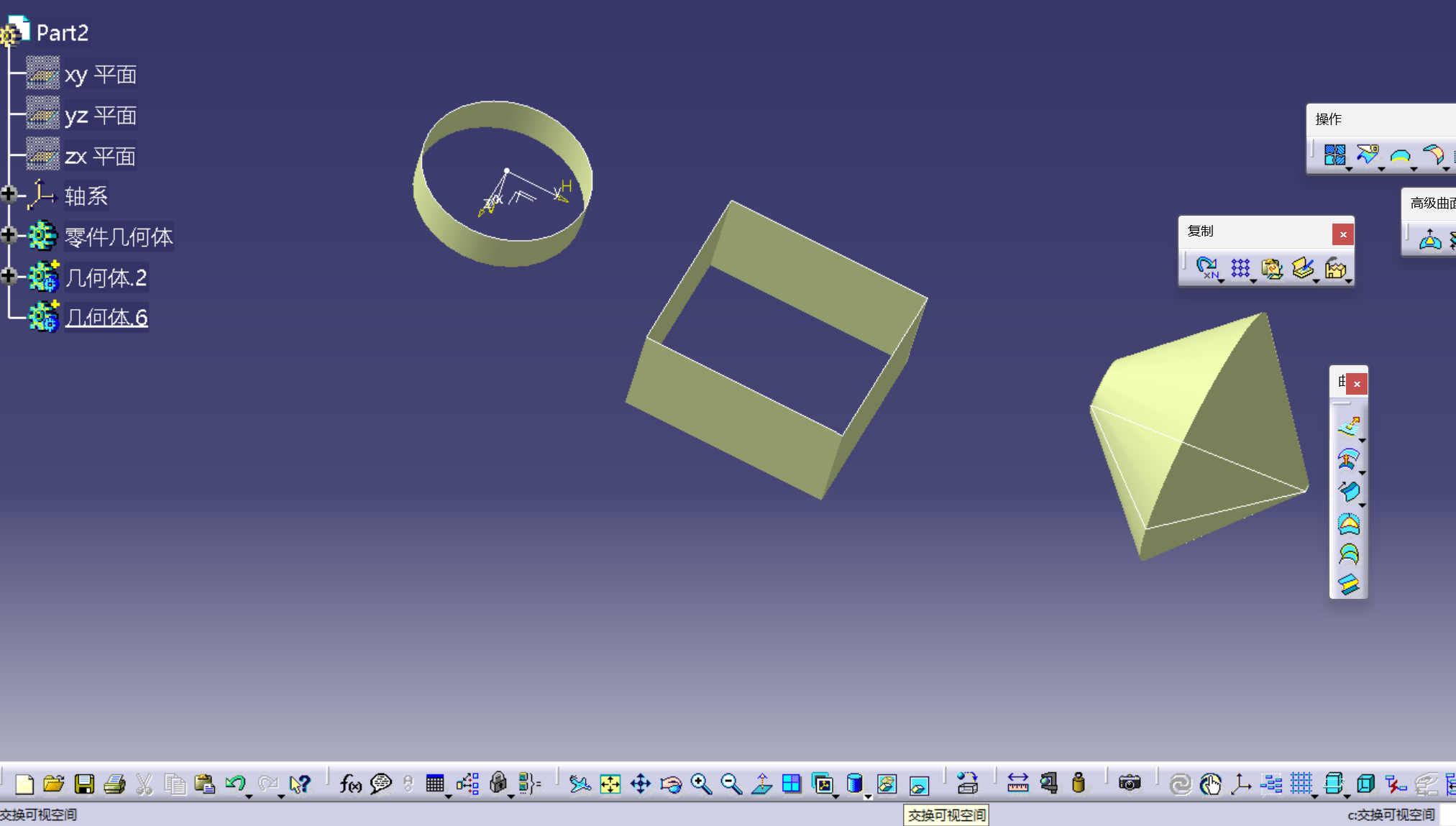

Sub CATMain()

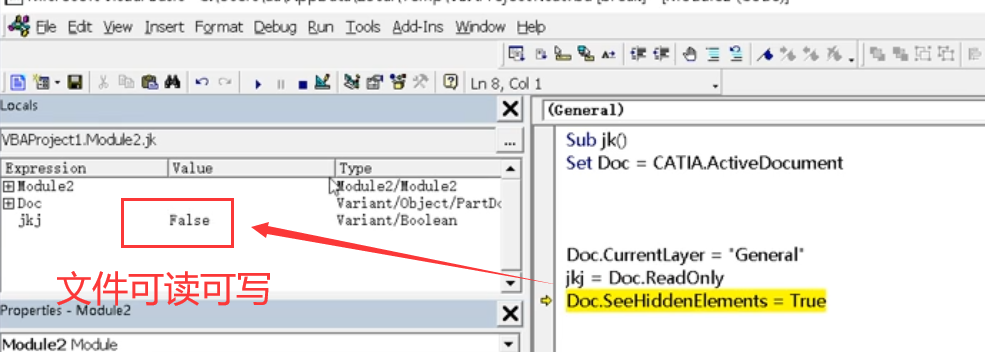

Set Doc = CATIA.ActiveDocument

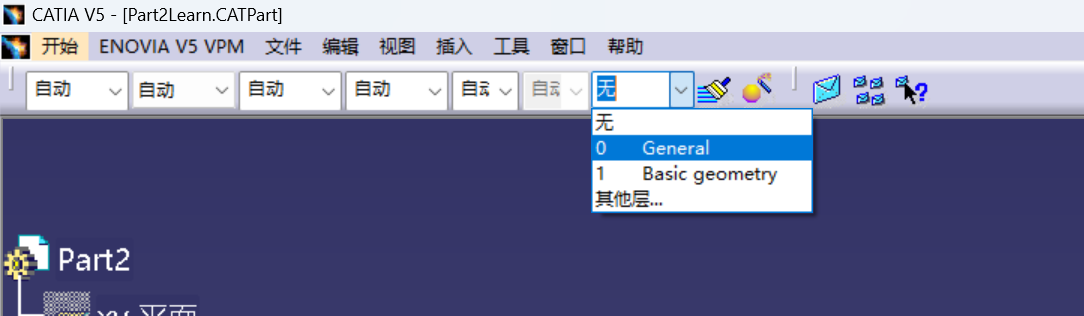

Doc.CurrentLayer = "General"
jkj = Doc.ReadOnly
Doc.SeeHiddenElements = True

End Sub

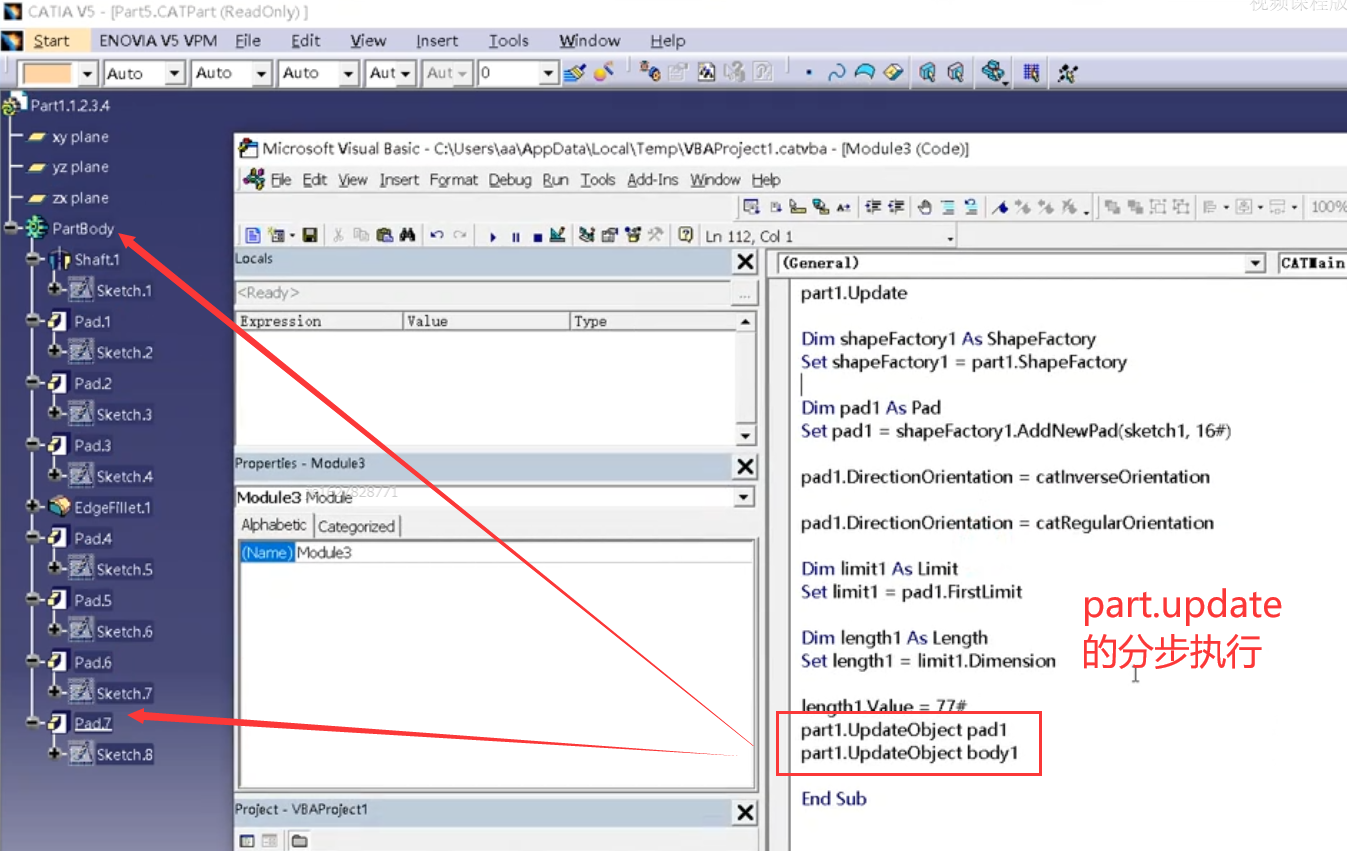

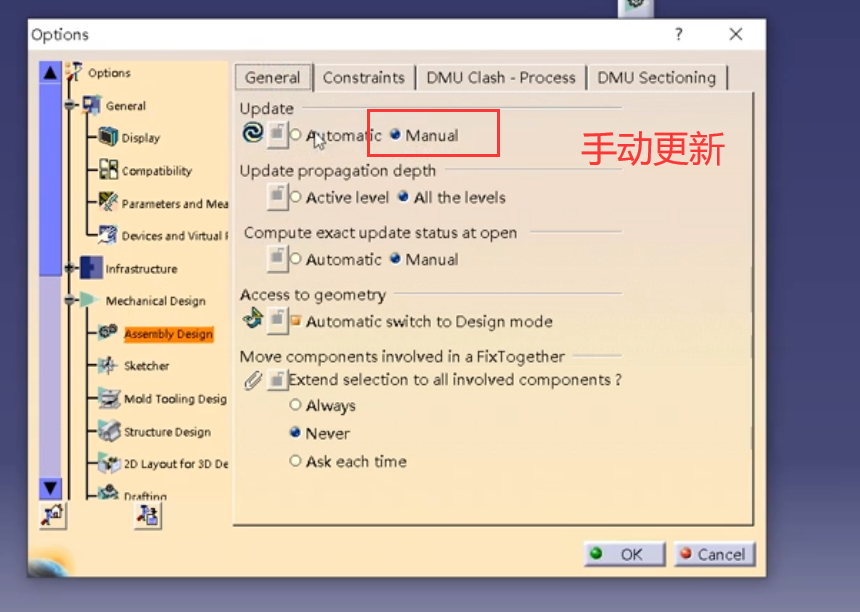

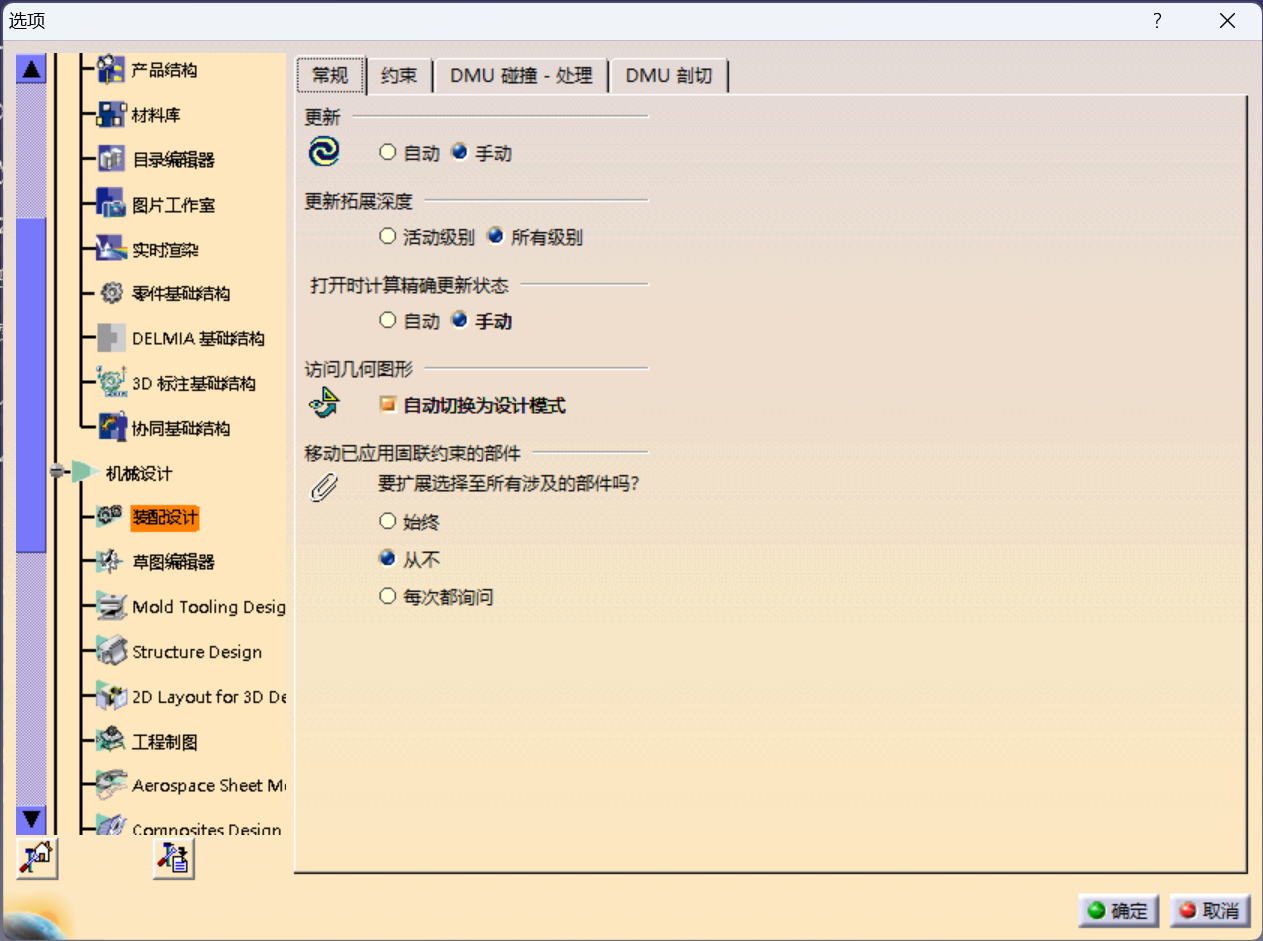

 CATIA.ActiveDocument.part.UpdateObject TestInt

Sub CATMain()

Dim productDocument1 As Document

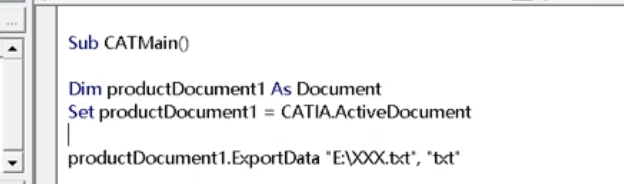

Set productDocument1 = CATIA.ActiveDocument

productDocument1.ExportData "C:\temp\XXX.txt", "txt"
End Sub

Attribute VB_Name = "Module2"

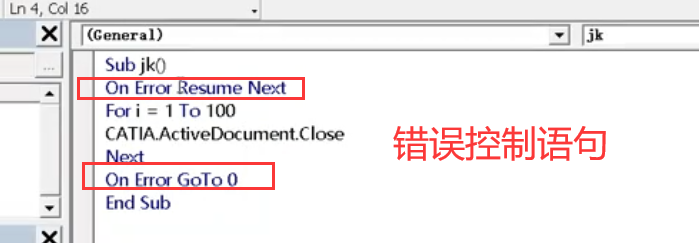

   Sub CATMain()

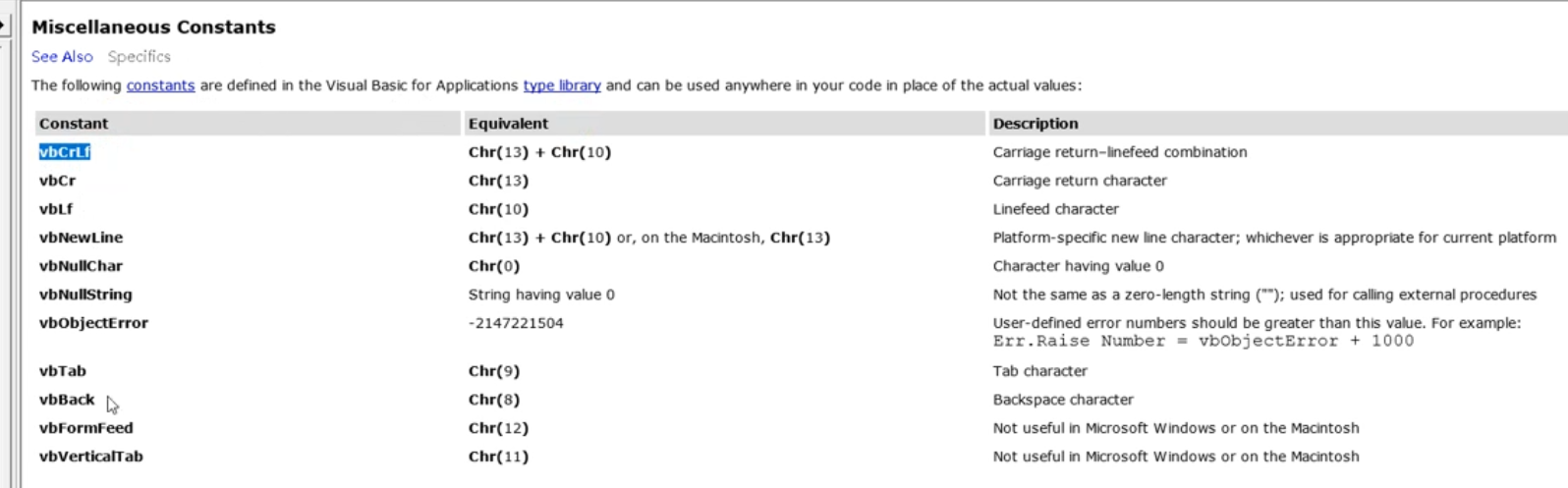

     Exe = MsgBox("This CATScript will close all files in the session without saving them" & Chr(10) & "Would you like to continue?", vbOKCancel, "Kill'em All")

     If Exe = vbOK Then
        AllDocs = CATIA.Documents.Count ' Extraemos cuantos documentos hay abiertos (para mostrarlo al final, queda elegante)

        If AllDocs > 0 Then ' Si hay al menos uno abierto, vamos al bucle.

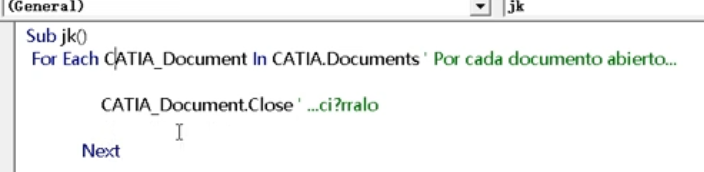

           For Each CATIA_Document In CATIA.Documents ' Por cada documento abierto...
               CATIA_Document.Close
           Next
        End If

        MsgBox AllDocs & " Documents Closed" ' Mensaje de salida mostrando cuantos documentos se han cerrado.
     End If

   End Sub

Attribute VB_Name = "Module9"

Sub jk()

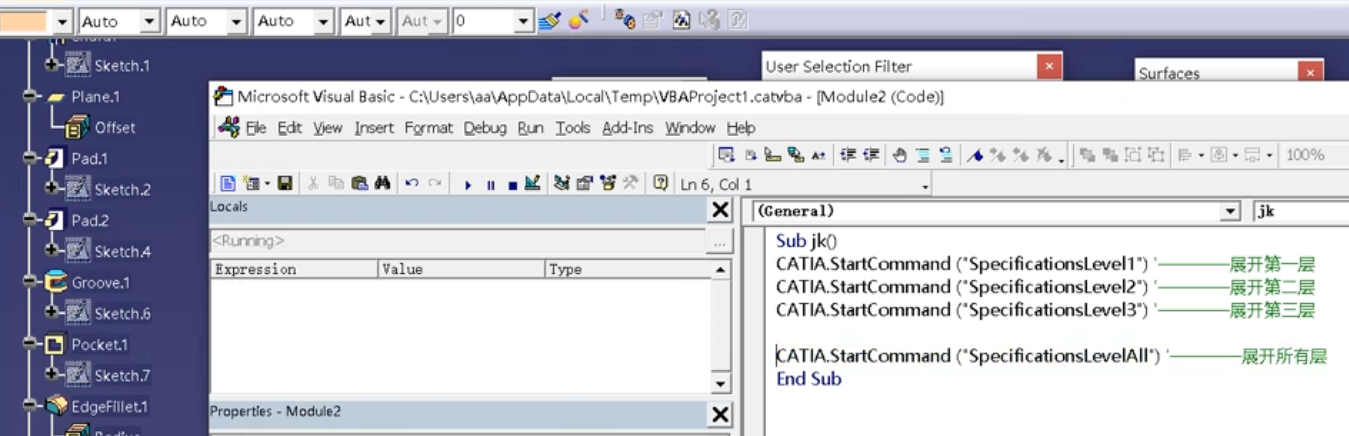

catia.StartCommand ("SpecificationsLevel1") '————展开第一层
catia.StartCommand ("SpecificationsLevel2") '————展开第二层
catia.StartCommand ("SpecificationsLevel3") '————展开第三层

catia.StartCommand ("SpecificationsLevelAll") '————展开所有层
End Sub

Function HybridShapeExists(InputStr As String, curset As HybridBody) As Boolean
On Error GoTo blast
Set HHH = curset.HybridShapes.Item(InputStr)
HybridShapeExists = True
Exit Function
blast:
HybridShapeExists = False

End Function


Sub f()
Set opartdoc = CATIA.ActiveDocument
Dim ohybridbody As HybridBody
Set ohybridbody = opartdoc.Part.HybridBodies.Item(1)
MsgBox HybridShapeExists("Point.3", ohybridbody)

End Sub

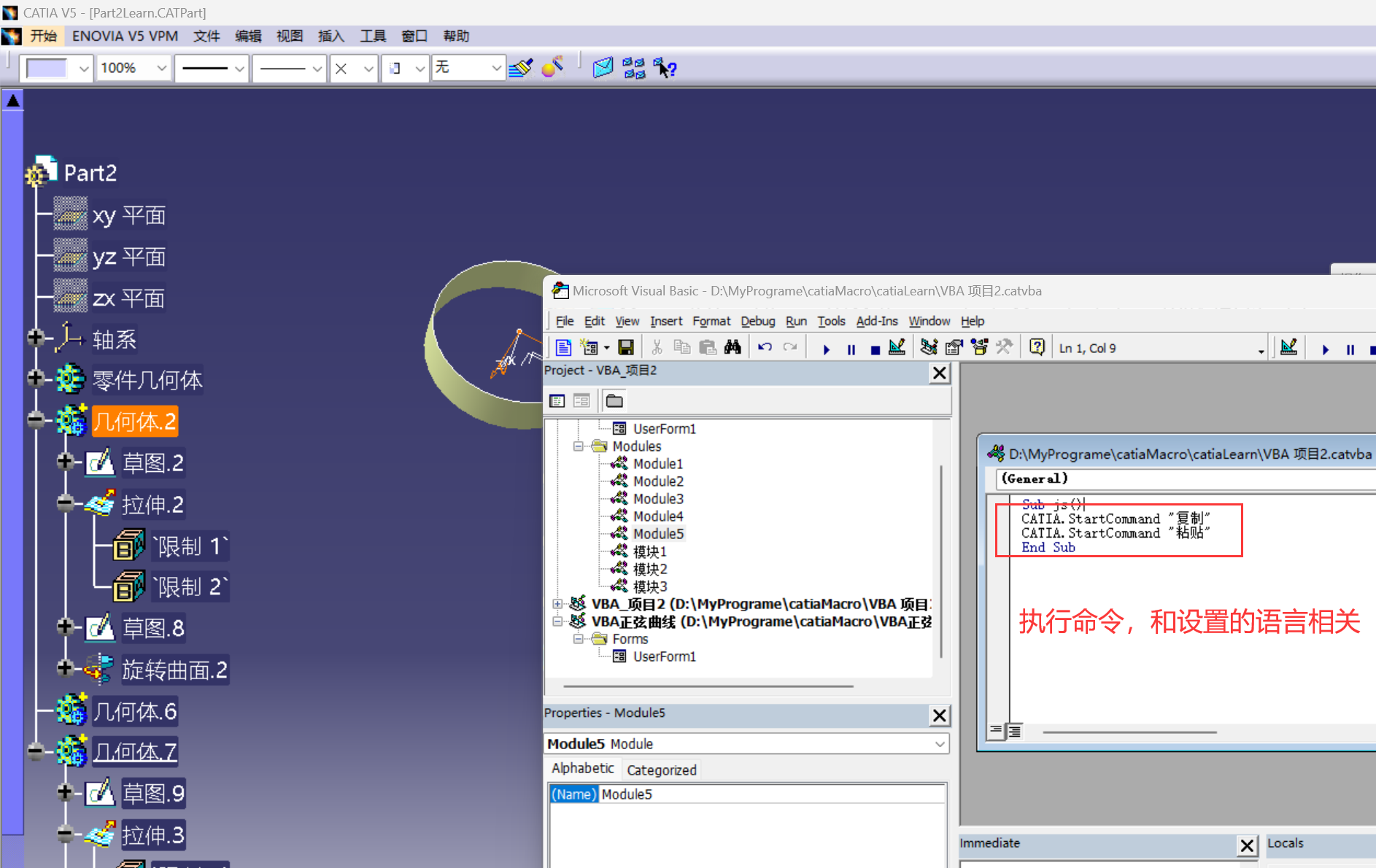

Sub js()
CATIA.StartCommand "复制"
CATIA.StartCommand "粘贴"
End Sub

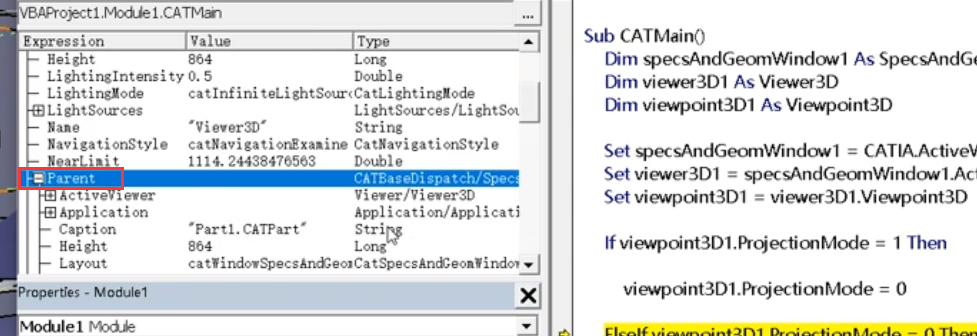

Sub CATMain()
    Dim specsAndGeomWindow1 As SpecsAndGeomWindow
    Dim viewer3D1 As Viewer3D
    Dim viewpoint3D1 As Viewpoint3D

    Set specsAndGeomWindow1 = CATIA.ActiveWindow
    Set viewer3D1 = specsAndGeomWindow1.ActiveViewer
    Set viewpoint3D1 = viewer3D1.Viewpoint3D

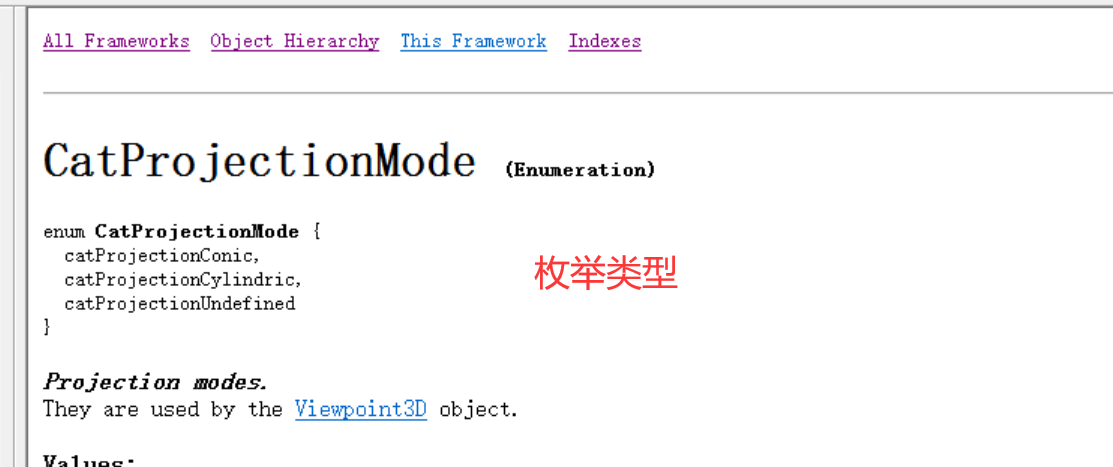

    If viewpoint3D1.ProjectionMode = 1 Then

        viewpoint3D1.ProjectionMode = 0

    ElseIf viewpoint3D1.ProjectionMode = 0 Then

        viewpoint3D1.ProjectionMode = 1

    End If

End Sub

Sub CATMain()

Dim oSel
Set oSel = CATIA.ActiveDocument.selection
Dim oSelElem
Set oSelElem = oSel.Item(1).Value
Dim oGS
Set oGS = oSelElem.Parent.Parent
MsgBox "oGS .Name =" & oGS.Name

End Sub
