科研绘图系列：R语言绘制微生物物种系统发育树（phylogenetic tree)

library(ape)
library(ggnewscale)
library(ggplot2)
library(ggtree)
library(ggtreeExtra)
library(RColorBrewer)
library(tidyverse)
# devtools::install_github("kevinwolz/hisafer")
library(hisafer)

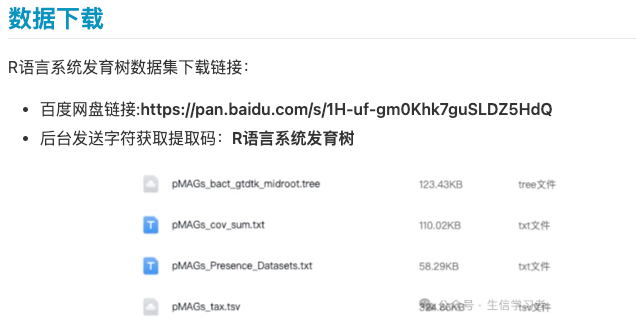

BacTree <- read.tree("pMAGs_bact_gtdtk_midroot.tree")
dat <- read_tsv("pMAGS_tax.tsv")
dataset <- read_tsv("pMAGS_Presence_Datasets.txt")
covmax <- read_tsv("pMAGs_cov_sum.txt")

dat$p_c <- if_else(dat$p == "p__Proteobacteria", dat$c, dat$p)
dat$p_c <- gsub(".__", "", dat$p_c, perl = T)
dat$p_c <- gsub("_.$", "", dat$p_c, perl = T)

bacDat <- dat %>%
  filter(d == "d__Bacteria") %>%
  mutate(Abundance = 0.2)

mostAbundantTax <- bacDat %>%
  group_by(p_c) %>%
  summarise(total = n()) %>%
  arrange(desc(total)) %>%
  slice(1:16)

list <- mostAbundantTax$p_c
list <- c(list, "Nitrospirota")

bacDat <- bacDat %>%
  mutate(p_c = if_else(p_c %in% list, p_c, "Other"))

bacDatset <- dataset %>%
  filter(MAGs %in% bacDat$MAGs)

bacDatset$Busi <-
  gsub("Busi", "Busi et al., Nat Com, 2022", bacDatset$Busi)
bacDatset$ENSEMBLE <-
  gsub("ENSEMBLE", "Michoud et al, L&O, 2023", bacDatset$ENSEMBLE)
bacDatset$Tibet <-
  gsub("Tibet", "Tibetan Glacier Genome and Gene", bacDatset$Tibet)
bacDatset$Tara <- gsub("Tara", "Tara Oceans", bacDatset$Tara)

bacDatset <- as.data.frame(bacDatset)
rownames(bacDatset) <- bacDatset$MAGs
bacDatset$MAGs <- NULL

bactcov <- covmax %>%
  filter(MAGs %in% bacDat$MAGs) %>%
  select(MAGs, count)

bactcov <- as.data.frame(bactcov)
rownames(bactcov) <- bactcov$MAGs
bactcov$MAGs <- NULL

bactcov$count <- log10(bactcov$count)

a <- split(bacDat$MAGs, bacDat$p_c)

tree <- groupOTU(BacTree, a)

getPaletteBact <- colorRampPalette(brewer.pal(9, "Set1"))

bactColor <- getPaletteBact(length(unique(bacDat$p_c)) + 1)

bactColor[1] <- "black"

p1 <-
  ggtree(tree,
    layout = "circular",
    aes(color = group)
  ) + #
  geom_tree() +
  theme_tree() +
  geom_treescale(width = 0.1) +
  scale_color_manual(
    values = bactColor,
    na.value = "transparent",
    guide = "none"
  ) +
  # geom_text2(aes(subset=!isTip,	label=node), hjust=-.3)+
  theme(legend.position = "right")

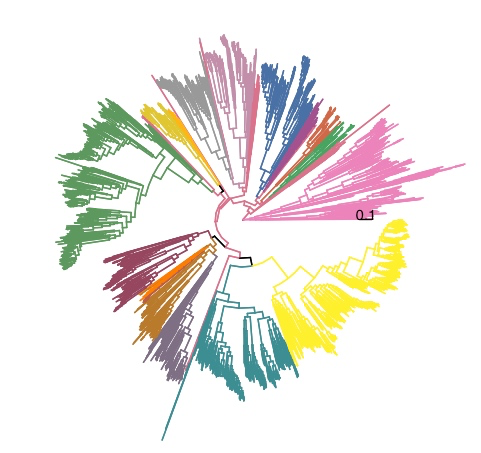

p1

p2 <- p1 +
  new_scale_colour() +
  new_scale_fill() +
  geom_fruit(
    data = bacDat,
    pwidth = 0.01,
    geom = geom_bar,
    mapping = aes(y = MAGs, fill = p_c, x = 1),
    # orientation="y",
    stat = "identity",
  ) +
  scale_fill_manual(values = bactColor[-1]) +
  labs(fill = "Taxa") +
  new_scale_colour() +
  new_scale_fill()

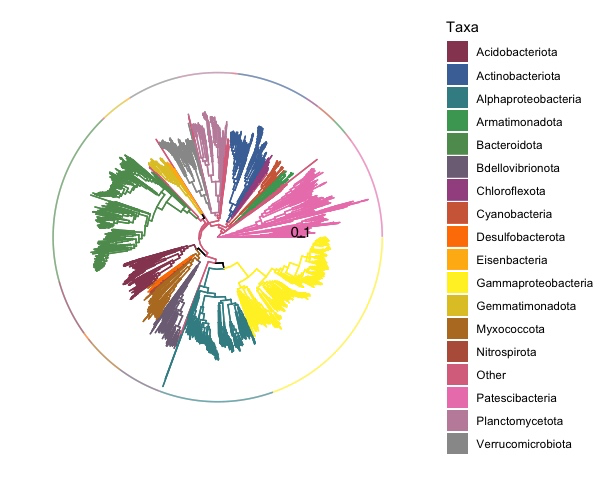

p2

p3 <-
  gheatmap(
    p2,
    bacDatset,
    width = 0.2,
    offset = 0.1,
    # offset=8, width=0.6,
    colnames = FALSE,
    color = NULL
  ) +
  scale_fill_discrete(na.translate = F) +
  labs(fill = "Datasets") +
  new_scale_colour() +
  new_scale_fill()

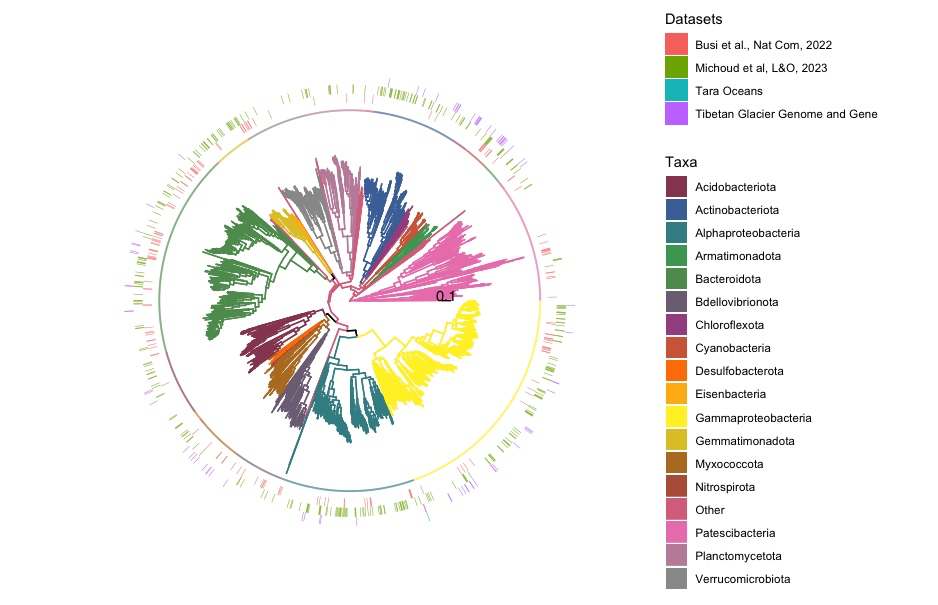

p3

p4 <- gheatmap(
  p3,
  bactcov,
  offset = 0.6,
  width = 0.05,
  colnames = FALSE,
  color = NULL
) +
  scale_fill_viridis_c() +
  labs(fill = "Normalized log10\nabundance")

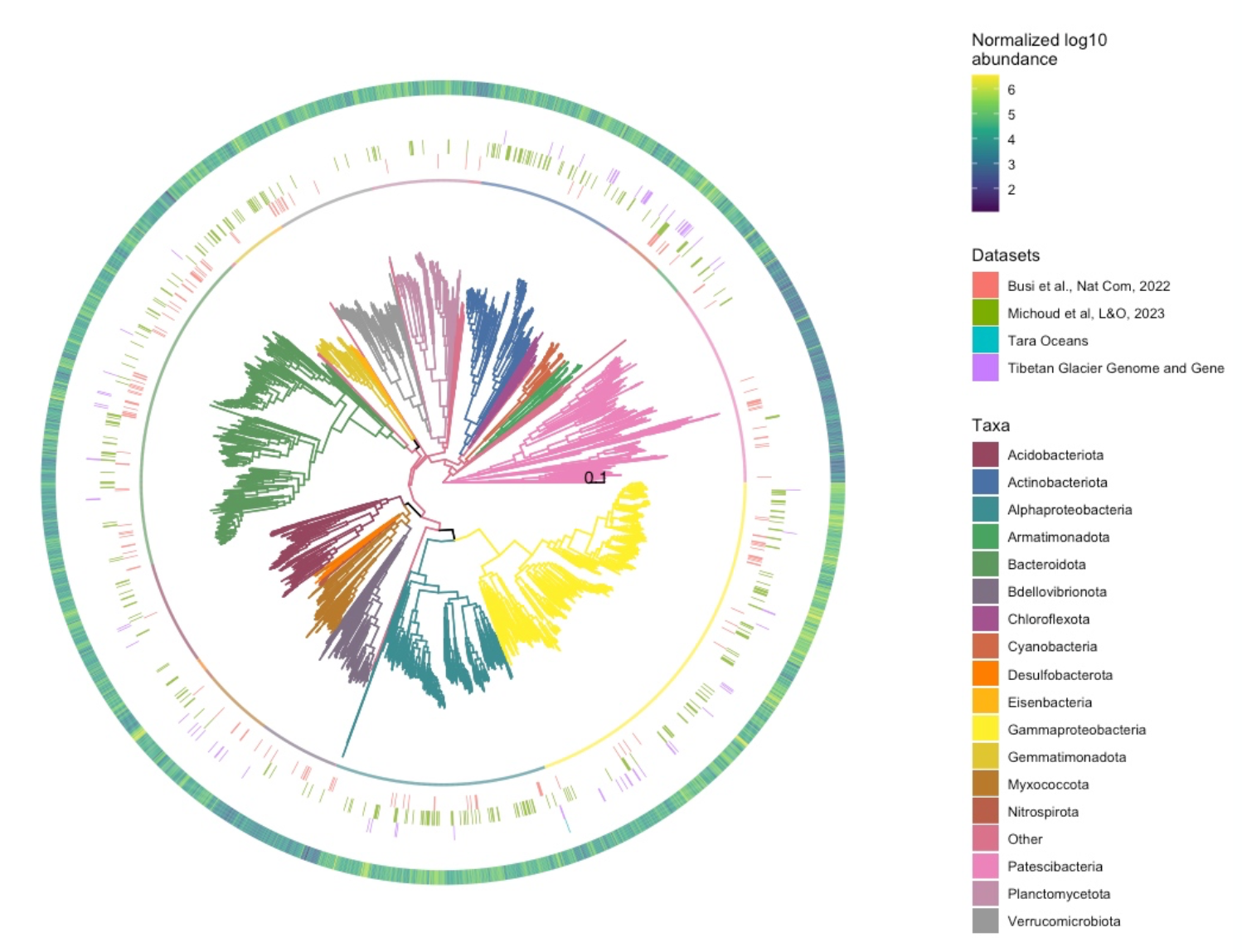

p4

ggsave_fitmax <- function(
    filename,
    plot,
    maxheight = 7,
    maxwidth = maxheight,
    units = "in", ...) {

  if (is.null(plot)) {
    return(FALSE)
  }
  dims <- get_dims(
    ggobj = plot,
    maxheight = maxheight,
    maxwidth = maxwidth,
    units = units
  )
  ggplot2::ggsave(
    filename = filename,
    plot = plot,
    height = dims$height,
    width = dims$width,
    units = units, ...
  )
}

get_dims <- function(
    ggobj,
    maxheight,
    maxwidth = maxheight,
    units = "in", ...) {

  # Internal helper function:
  # Treat all null units in a unit object as if they were inches.
  # This is a bad idea in gneral, but I use it here as a workaround.
  # Extracting unit names from non-atomic unit objects is a pain,
  # so questions like "which rows of this table layout have null heights?"
  # are hard to answer. To work around it, I exploit an (undocumented!)
  # quirk: When calculating the size of a table layout inside a Grid plot,
  # convertUnit(...) treats null units as zero.
  # Therefore
  # 	(convertHeight(grob_height, "in", valueOnly=TRUE)
  # 	- convertHeight(null_as_if_inch(grob_height), "in", valueOnly=TRUE))
  # does the inverse of convertUnit: It gives the sum of all *null* heights
  # in the object, treating *fixed* units as zero.
  #
  # Warning: I repeat, this approach ONLY makes any sense if
  # 	convertUnit(unit(1, "null"), "in", "x", valueOnly=T) == 0
  # is true. Please check that it is before calling this code.

  .null_as_if_inch <- function(u) {
    stopifnot(packageVersion("grid") < "4.0")
    if (!grid::is.unit(u)) {
      return(u)
    }
    if (is.atomic(u)) {
      if ("null" %in% attr(u, "unit")) {
        d <- attr(u, "data")
        u <- unit(
          x = as.vector(u),
          units = gsub("null", "in", attr(u, "unit")),
          data = d
        )
      }
      return(u)
    }
    if (inherits(u, "unit.arithmetic")) {
      l <- .null_as_if_inch(u$arg1)
      r <- .null_as_if_inch(u$arg2)
      if (is.null(r)) {
        args <- list(l)
      } else {
        args <- list(l, r)
      }
      return(do.call(u$fname, args))
    }
    if (inherits(u, "unit.list")) {
      return(do.call(grid::unit.c, lapply(u, .null_as_if_inch)))
    }
    return(u)
  }

  if (inherits(ggobj, "ggplot") && !isTRUE(ggobj$respect) &&
    is.null(ggobj$theme$aspect.ratio) && is.null(ggobj$coordinates$ratio) &&
    is.null(ggplot2::theme_get()$aspect.ratio)) {
    return(list(height = maxheight, width = maxwidth))
  }

  tmpf <- tempfile(pattern = "dispos-a-plot", fileext = ".png")
  png(
    filename = tmpf,
    height = maxheight,
    width = maxwidth,
    units = units,
    res = 120, ...
  )

  on.exit({
    dev.off()
    unlink(tmpf)
  })

  if (inherits(ggobj, "ggplot")) {
    g <- ggplot2::ggplotGrob(ggobj)
  } else if (inherits(ggobj, "gtable")) {
    g <- ggobj
  } else {
    stop("Don't know how to get sizes for object of class ", deparse(class(ggobj)))
  }

  stopifnot(grid::convertUnit(grid::unit(1, "null"), "in", "x", valueOnly = TRUE) == 0)
  known_ht <- sum(grid::convertHeight(g$heights, units, valueOnly = TRUE))
  known_wd <- sum(grid::convertWidth(g$widths, units, valueOnly = TRUE))
  free_ht <- maxheight - known_ht
  free_wd <- maxwidth - known_wd

  if (packageVersion("grid") >= "4.0.0") {
    null_rowhts <- as.numeric(g$heights[grid::unitType(g$heights) == "null"])
    null_colwds <- as.numeric(g$widths[grid::unitType(g$widths) == "null"])
    panel_asps <- (
      matrix(null_rowhts, ncol = 1)
      %*% matrix(1 / null_colwds, nrow = 1))
  } else {
    all_null_rowhts <- (
      grid::convertHeight(.null_as_if_inch(g$heights), "in", valueOnly = TRUE)
      - grid::convertHeight(g$heights, "in", valueOnly = TRUE))
    all_null_colwds <- (
      grid::convertWidth(.null_as_if_inch(g$widths), "in", valueOnly = TRUE)
      - grid::convertWidth(g$widths, "in", valueOnly = TRUE))
    null_rowhts <- all_null_rowhts[all_null_rowhts > 0]
    null_colwds <- all_null_colwds[all_null_colwds > 0]
    panel_asps <- (matrix(null_rowhts, ncol = 1) %*% matrix(1 / null_colwds, nrow = 1))
  }

  panel_asps <- matrix(null_rowhts, ncol = 1) %*% matrix(1 / null_colwds, nrow = 1)
  max_rowhts <- free_ht / sum(null_rowhts) * null_rowhts
  max_colwds <- free_wd / sum(null_colwds) * null_colwds
  rowhts_if_maxwd <- max_colwds[1] * panel_asps[, 1]
  colwds_if_maxht <- max_rowhts[1] / panel_asps[1, ]
  height <- min(maxheight, known_ht + sum(rowhts_if_maxwd))
  width <- min(maxwidth, known_wd + sum(colwds_if_maxht))

  return(list(height = height, width = width))
}

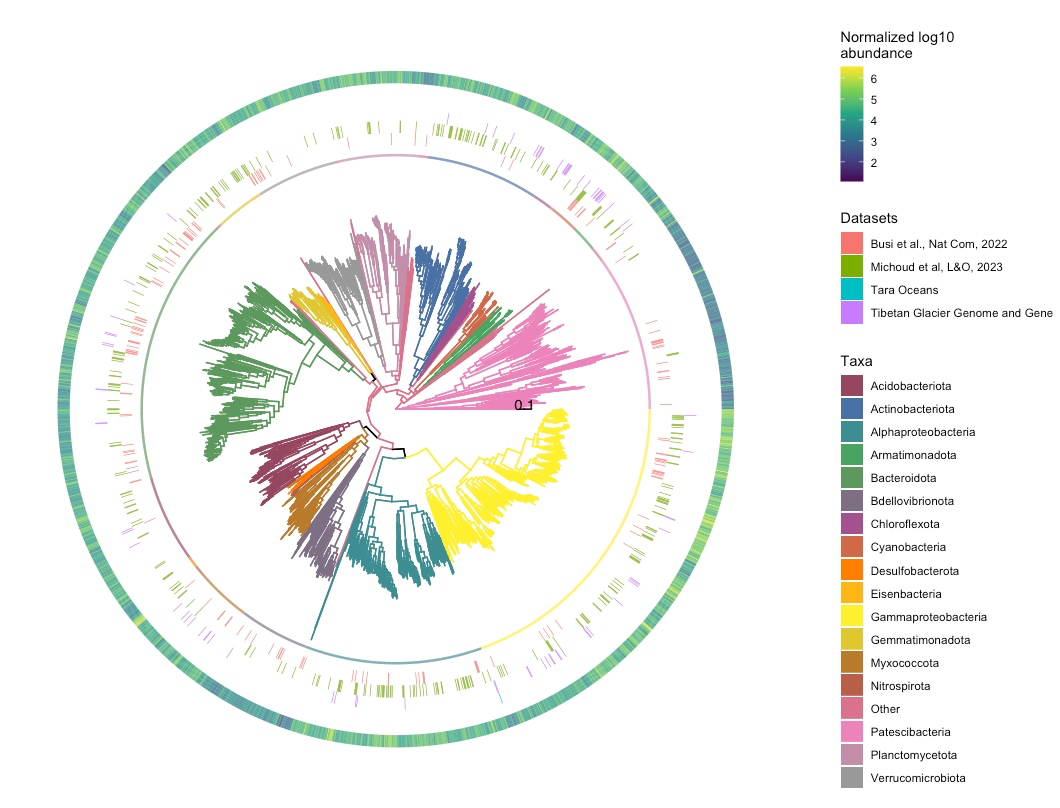

ggsave_fitmax("bacterialTree.pdf",
  p4,
  maxheight = 15
)

R version 4.3.3 (2024-02-29)
Platform: aarch64-apple-darwin20 (64-bit)
Running under: macOS Sonoma 14.2

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.11.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Asia/Shanghai
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] hisafer_1.5.1      lubridate_1.9.3    forcats_1.0.0      stringr_1.5.1      dplyr_1.1.4
 [6] purrr_1.0.2        readr_2.1.5        tidyr_1.3.1        tibble_3.2.1       tidyverse_2.0.0
[11] RColorBrewer_1.1-3 ggtreeExtra_1.12.0 ggtree_3.8.2       ggplot2_3.5.1      ggnewscale_0.4.10
[16] ape_5.7-1

loaded via a namespace (and not attached):
 [1] yulab.utils_0.1.4  utf8_1.2.4         generics_0.1.3     ggplotify_0.1.2    stringi_1.8.3
 [6] lattice_0.22-6     hms_1.1.3          digest_0.6.35      magrittr_2.0.3     timechange_0.3.0
[11] grid_4.3.3         fastmap_1.1.1      jsonlite_1.8.8     fansi_1.0.6        aplot_0.2.2
[16] scales_1.3.0       lazyeval_0.2.2     cli_3.6.3          rlang_1.1.4        munsell_0.5.0
[21] tidytree_0.4.6     withr_3.0.2        cachem_1.0.8       tools_4.3.3        parallel_4.3.3
[26] tzdb_0.4.0         memoise_2.0.1      colorspace_2.1-0   vctrs_0.6.5        R6_2.5.1
[31] gridGraphics_0.5-1 lifecycle_1.0.4    fs_1.6.3           ggfun_0.1.4        treeio_1.26.0
[36] pkgconfig_2.0.3    pillar_1.9.0       gtable_0.3.4       glue_1.8.0         Rcpp_1.0.12
[41] tidyselect_1.2.1   rstudioapi_0.16.0  farver_2.1.1       nlme_3.1-164       patchwork_1.3.0
[46] compiler_4.3.3
