脚本更新----visium数据的细胞类型距离分析

library(Seurat)
source("distance_comparison_function.R")

spatial_SO <- readRDS(file = 'spatial.rds')

spot_diameter_fullres = spatial_SO@images$image@scale.factors$fiducial###383.6347

pos <- GetTissueCoordinates(spatial_SO, scale = NULL) # returns positions in pixels
pos$imagerow <- pos$imagerow*(65/spot_diameter_fullres) # converts pixels to microns
pos$imagecol <- pos$imagecol*(65/spot_diameter_fullres) # converts pixels to microns

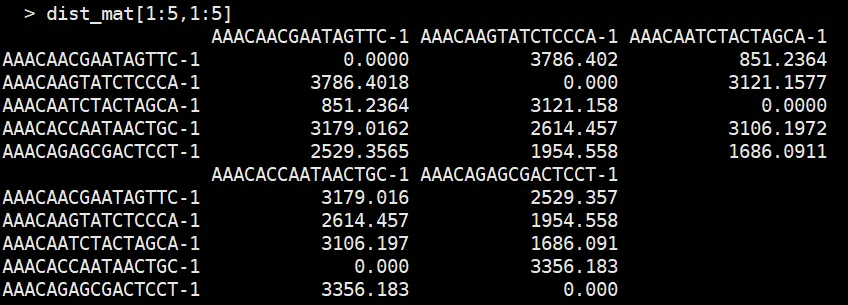

dist_mat <- matrix(NA, nrow = nrow(pos), ncol = nrow(pos))

# Nested Loop through rows and columns of position (pos) df
for(n in 1:nrow(pos)){
    for(j in 1:nrow(pos)){
      if(n == j){
        dist_mat[n,j] <- 0
      } else {
        point1 <- as.list(pos[n,])
        point2 <- as.list(pos[j,])
        dist <- sqrt((point1$imagerow - point2$imagerow)^2 + (point1$imagecol - point2$imagecol)^2)
        dist_mat[n,j] <- dist
        dist_mat[j,n] <- dist
      }
    }
  }
colnames(dist_mat) <- rownames(pos)
rownames(dist_mat) <- rownames(pos)

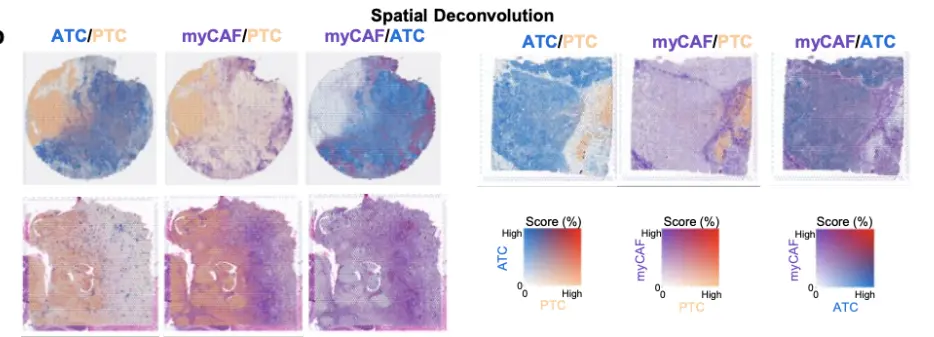

proportions <- data.frame(
      "pEMT" = c(spatial_SO$pEMT),
      "PTC" = c(spatial_SO$PTC),
      "myCAF" = c(spatial_SO$myCAF)
  )

  # Calculate min. distance of spots with at least 10% pEMT PTC phenotype from spots with at least 10% myCAF phenotype
  pEMT_myCAF_distance <- distance_comparison(distances = distance_matrix,
                                             proportions = proportions,
                                             topic1 = "pEMT",
                                             topic2 = "myCAF",
                                             t1_thresh = 0.1,
                                             t2_thresh = 0.1)

  # Calculate min. distance of spots with at least 10% PTC phenotype from spots with at least 10% myCAF phenotype
  PTC_myCAF_distance <- distance_comparison(distances = distance_matrix,
                                            proportions = proportions,
                                            topic1 = "PTC",
                                            topic2 = "myCAF",
                                            t1_thresh = 0.1,
                                            t2_thresh = 0.1)

  combined_distance <- rbind(pEMT_myCAF_distance, PTC_myCAF_distance)

  # Violin plot to compare distances
  distance_violin <- ggplot(combined_distance, aes(x = barcodes, y = min, fill = barcodes)) +
    geom_violin(scale = "width") +
    theme_classic() +
    scale_fill_manual(values = c("darkgrey", "#FFCC99")) +
    scale_x_discrete(name ="Deconvolution", limits = c("PTC vs. myCAF", "pEMT vs. myCAF"))


  # Save violin plot
  ggsave(file = paste0("outputs/Distance_Plots/", samples[i], "/PTC_pEMT_myCAF_Min_Distance_Violin.png"),
         distance_violin, height = 5, width = 6, dpi = 600)

  # For each sample calculate the mean and the median of the minimum distance from myCAF for pEMT PTC and PTC
  mean_median_min_distances <- data.frame(
      "sample" = c(samples[i]),
      "pEMT_myCAF_mean" = c(mean(pEMT_myCAF_distance$min)),
      "PTC_myCAF_mean" = c(mean(PTC_myCAF_distance$min)),
      "pEMT_myCAF_median" = c(median(pEMT_myCAF_distance$min)),
      "PTC_myCAF_median" = c(median(PTC_myCAF_distance$min))
  )

distances_overview = mean_median_min_distances

distances_overview_plotting <- distances_overview %>%
  pivot_longer(
    cols = starts_with("pEMT_myCAF_mean") | starts_with("pEMT_myCAF_median") | starts_with("PTC_myCAF_mean") | starts_with("PTC_myCAF_median"),
    names_to = c("Distance_Group"),
    values_to = "Distance"
  )

# plots based on median
median_distances_plotting <- distances_overview_plotting %>% subset(Distance_Group == "pEMT_myCAF_median" | Distance_Group == "PTC_myCAF_median")

# make plot
plot <- ggplot(median_distances_plotting, aes(Distance_Group, Distance)) +
  geom_boxplot(outlier.size = -1,
               aes(fill = Distance_Group),
               alpha = 0.9,
               show.legend = FALSE) +
  geom_point(aes(),
             #position = position_jitter(width = 0.1, height = 0),
             size = 2,
             alpha = 0.7,
             show.legend = FALSE) +
  geom_line(aes(group = sample), color = "black", linewidth = 0.5, alpha = 0.5, linetype = "dashed") +
  scale_fill_manual(values = c("darkgrey", "#FFCC99")) +
  labs (x = "Tumor", y = "iPVCAF Correlation") +
  theme_classic() +
  theme(
    plot.title = element_text(face = "bold", hjust = 0.5),
    axis.title.x = element_text(face = "bold", size = 14.5),
    axis.title.y = element_text(face = "bold", size = 12),
    axis.text.x = element_text(face = "bold", size = 10),
    axis.text.y = element_text(face = "bold", size = 16)) +
  scale_x_discrete(name ="Deconvolution", limits = c("PTC_myCAF_median", "pEMT_myCAF_median")) +
  scale_y_continuous(breaks = c(0, 300, 600, 900, 1200, 1500),
                     limits = c(0, 1550))
# Not, max and min values need to be restricted for each new gene that is plotted
ggsave("PTC_pEMT_myCAF_Distance_Boxplots.png",
       width = 2.75, height = 3,
       plot, dpi = 600, create.dir = TRUE)

# Plot with distance as log2 with a pseudocount to avoid log2(0)
plot <- ggplot(median_distances_plotting, aes(Distance_Group, log2(Distance+1))) +
  geom_boxplot(outlier.size = -1,
               aes(fill = Distance_Group),
               alpha = 0.9,
               show.legend = FALSE) +
  geom_point(aes(),
             #position = position_jitter(width = 0.1, height = 0),
             size = 2,
             alpha = 0.7,
             show.legend = FALSE) +
  geom_line(aes(group = sample), color = "black", linewidth = 0.5, alpha = 0.5, linetype = "dashed") +
  scale_fill_manual(values = c("darkgrey", "#FFCC99")) +
  labs (x = "Tumor", y = "iPVCAF Correlation") +
  theme_classic() +
  theme(
    plot.title = element_text(face = "bold", hjust = 0.5),
    axis.title.x = element_text(face = "bold", size = 14.5),
    axis.title.y = element_text(face = "bold", size = 12),
    axis.text.x = element_text(face = "bold", size = 10),
    axis.text.y = element_text(face = "bold", size = 16)) +
  scale_x_discrete(name ="Deconvolution", limits = c("PTC_myCAF_median", "pEMT_myCAF_median")) +
  scale_y_continuous(breaks = c(0, 2, 4, 6, 8, 10),
                     limits = c(0, 11))
# Not, max and min values need to be restricted for each new gene that is plotted
ggsave("PTC_pEMT_myCAF_Log2_Distance_Boxplots.png",
       width = 2.75, height = 3,
       plot, dpi = 600, create.dir = TRUE)


######### MEAN plots ################
# Repeat of median plots above but using mean instead of median
# mean does a better job of capturing the variability
mean_distances_plotting <- distances_overview_plotting %>% subset(Distance_Group == "pEMT_myCAF_mean" | Distance_Group == "PTC_myCAF_mean")

plot <- ggplot(mean_distances_plotting, aes(Distance_Group, Distance)) +
  geom_boxplot(outlier.size = -1,
               aes(fill = Distance_Group),
               alpha = 0.9,
               show.legend = FALSE) +
  geom_point(aes(),
             #position = position_jitter(width = 0.1, height = 0),
             size = 2,
             alpha = 0.7,
             show.legend = FALSE) +
  geom_line(aes(group = sample), color = "black", linewidth = 0.5, alpha = 0.5, linetype = "dashed") +
  scale_fill_manual(values = c("darkgrey", "#FFCC99")) +
  labs (x = "Tumor", y = "iPVCAF Correlation") +
  theme_classic() +
  theme(
    plot.title = element_text(face = "bold", hjust = 0.5),
    axis.title.x = element_text(face = "bold", size = 14.5),
    axis.title.y = element_text(face = "bold", size = 12),
    axis.text.x = element_text(face = "bold", size = 10),
    axis.text.y = element_text(face = "bold", size = 16)) +
  scale_x_discrete(name ="Deconvolution", limits = c("PTC_myCAF_mean", "pEMT_myCAF_mean")) +
  scale_y_continuous(breaks = c(0, 400, 800, 1200, 1600),
                     limits = c(0, 1700))
# Not, max and min values need to be restricted for each new gene that is plotted
ggsave("PTC_pEMT_myCAF_Mean_Distance_Boxplots.png",
       width = 2.75, height = 3,
       plot, dpi = 600, create.dir = TRUE)

plot <- ggplot(mean_distances_plotting, aes(Distance_Group, log2(Distance+1))) +
  geom_boxplot(outlier.size = -1,
               aes(fill = Distance_Group),
               alpha = 0.9,
               show.legend = FALSE) +
  geom_point(aes(),
             #position = position_jitter(width = 0.1, height = 0),
             size = 2,
             alpha = 0.7,
             show.legend = FALSE) +
  geom_line(aes(group = sample), color = "black", linewidth = 0.5, alpha = 0.5, linetype = "dashed") +
  scale_fill_manual(values = c("darkgrey", "#FFCC99")) +
  labs (x = "Tumor", y = "iPVCAF Correlation") +
  theme_classic() +
  theme(
    plot.title = element_text(face = "bold", hjust = 0.5),
    axis.title.x = element_text(face = "bold", size = 14.5),
    axis.title.y = element_text(face = "bold", size = 12),
    axis.text.x = element_text(face = "bold", size = 10),
    axis.text.y = element_text(face = "bold", size = 16)) +
  scale_x_discrete(name ="Deconvolution", limits = c("PTC_myCAF_mean", "pEMT_myCAF_mean")) +
  scale_y_continuous(breaks = c(0, 2, 4, 6, 8, 10),
                     limits = c(0, 11))
# Not, max and min values need to be restricted for each new gene that is plotted
ggsave("PTC_pEMT_myCAF_Log2_Mean_Distance_Boxplots.png",
       width = 2.75, height = 3,
       plot, dpi = 600, create.dir = TRUE)



# stats
distance_wide <- pivot_wider(mean_distances_plotting, names_from = Distance_Group, values_from = Distance)
t.test(distance_wide$pEMT_myCAF_mean, distance_wide$PTC_myCAF_mean, paired = TRUE)

distance_comparison <- function(distances, proportions, topic1, topic2, t1_thresh, t2_thresh){

  # Filter the desired topics for barcode proportions greater than threshold and only keep barcode and topic column
  filtered_props_1 <- proportions[proportions[,topic1] > t1_thresh, ]
  rownames_holder <- rownames(filtered_props_1)
  filtered_props_1 <- data.frame(filtered_props_1[, c(topic1)])
  rownames(filtered_props_1) <- rownames_holder
  rm(rownames_holder)
  colnames(filtered_props_1) <- c(topic1)
  print(filtered_props_1)

  # Filter the desired topics for barcode proportions greater than threshold and only keep barcode and topic column
  filtered_props_2 <- proportions[proportions[,topic2] > t2_thresh, ]
  rownames_holder <- rownames(filtered_props_2)
  filtered_props_2 <- data.frame(filtered_props_2[, c(topic2)])
  rownames(filtered_props_2) <- rownames_holder
  rm(rownames_holder)
  colnames(filtered_props_2) <- c(topic2)
  print(filtered_props_2)

  # Create a new matrix that contains the first topic as rows and the second topic as columns
  dist_filtered <- distances
  dist_filtered <- dist_filtered[rownames(dist_filtered) %in% rownames(filtered_props_1), ]

  # Filter columns
  dist_filtered <- dist_filtered[, colnames(dist_filtered) %in% rownames(filtered_props_2)]

  print(dist_filtered)

  # Apply min function to each row (1=rows, 2=columns)
  min_df <- apply(dist_filtered, 1, function(x) min(x))

  # Convert to dataframe
  min_df <- as.data.frame(min_df)
  colnames(min_df) <- c("min")

  comp_str <- paste0(topic1, " vs. ", topic2)
  min_df$barcodes <- comp_str
  print(min_df)

  return(min_df)
}
