C语言函数大全--d开头的函数

原创
作者头像
huazie
发布2025-01-05 10:49:28
发布2025-01-05 10:49:28
3800
举报
文章被收录于专栏:开发语言-C/C++开发语言-C/C++

总览

函数声明

函数功能

void detectgraph(int *graphdriver, int *graphmode);

通过检测硬件确定图形驱动程序和模式

double difftime(time_t time2, time_t time1);

计算两个时刻之间的时间差

void disable(void);

屏蔽中断

div_t div(int number, int denom);

将两个整数相除, 返回商和余数

void drawpoly(int numpoints, int *polypoints);

画多边形

int dup(int handle);

复制文件描述符;若成功为新的文件描述,若出错为-1

int dup2(int oldhandle, int newhandle);

复制文件描述符;若成功为新的文件描述,若出错为-1。

1. detectgraph

1.1 函数说明

函数声明

函数功能

void detectgraph(int *graphdriver, int *graphmode);

通过检测硬件确定图形驱动程序和模式

1.2 演示示例

代码语言:c
复制
#include <graphics.h>
#include <stdlib.h>
#include <stdio.h>
#include <conio.h>

/* names of the various cards supported */
char *dname[] = {
    "requests detection",
    "a CGA",
    "an MCGA",
    "an EGA",
    "a 64K EGA",
    "a monochrome EGA",
    "an IBM 8514",
    "a Hercules monochrome",
    "an AT&T 6300 PC",
    "a VGA",
    "an IBM 3270 PC"
};

int main(void)
{
    int gdriver, gmode, errorcode;

    detectgraph(&gdriver, &gmode);

    initgraph(&gdriver, &gmode, "");

    errorcode = graphresult();

    if (errorcode != grOk)
    {
        printf("Graphics error: %s\n", grapherrormsg(errorcode));
        printf("Press any key to halt:");
        getch();
        exit(1);
    }

    printf("You have [%s] video display card.\n", dname[gdriver]);
    printf("Press any key to halt:");
    getch();
    return 0;
}

1.3 运行结果

2. difftime

2.1 函数说明

函数声明

函数功能

double difftime(time_t time2, time_t time1);

计算两个时刻之间的时间差

2.2 演示示例

代码语言:c
复制
#include <stdio.h>
#include <time.h>

int main(void)
{
    time_t first, second; // time_t 相当于 long
    first = time(NULL);  // Gets system time
    getchar();
    second = time(NULL); // Gets system time again
    printf("The difference is: %lf seconds\n", difftime(second, first));
    return 0;
}

在上述的示例代码中,

  • 首先,我们定义了两个 time_t 类型的变量 firstsecond
  • 然后,调用 time(NULL) 函数获取当前的系统时间,并赋值给 first
  • 接着,调用 getchar()函数等待用户输入,模拟延时的功能;
  • 再然后,继续调用 time(NULL) 函数获取当前的系统时间,并赋值给 second
  • 再接着,调用 difftime() 函数计算 firstsecond 之间的时间差【单位:秒】
  • 最终,输出时间差,并结束程序。

2.3 运行结果

3. disable

3.1 函数说明

函数声明

函数功能

void disable(void);

屏蔽中断

3.2 演示示例

代码语言:c
复制
// 中断服务示例
#include <stdio.h>
#include <dos.h>
#include <conio.h>
// 定义一个宏INTR,代表时钟中断的十六进制向量值
#define INTR 0X1C
// 声明一个函数指针oldhandler,该指针指向一个没有参数且返回void的函数。
// 这种函数通常用于中断处理程序
void interrupt (*oldhandler)(void);

int count=0;

void interrupt handler(void)
{
    // 禁用其他中断,确保此中断处理程序执行完毕前不再响应其他中断
    disable();
    count++;
    // 启用其他中断
    enable();
    // 调用原先的中断处理程序
    (*oldhandler)();
}

int main(void)
{
    // 获取时钟中断的原始处理程序,并将其存储在oldhandler指向的函数中
    oldhandler = getvect(INTR);
    // 将时钟中断的处理程序设置为handler函数
    setvect(INTR, handler);

    while (count < 20)
        printf("count is %d\n",count);
    // 恢复时钟中断的原始处理程序
    setvect(INTR, oldhandler);

    return 0;
}

注意: 这个程序可能无法在现代操作系统上直接运行,因为其中的一些函数(如disable()enable()getvect()setvect())是特定于 DOS 的。如果你想在现代操作系统(如 LinuxWindows)上运行这个程序,你可能需要使用更现代的方法来处理中断或使用 DOS 模拟器。

4. div

4.1 函数说明

函数声明

函数功能

div_t div(int number, int denom);

将两个整数相除, 返回商和余数

4.2 演示示例

代码语言:c
复制
#include <stdio.h>
#include <math.h>

int main(void)
{
    div_t x = div(10,3);
    // 商 和 余数
    printf("10 div 3 = %d remainder %d\n", x.quot, x.rem);
    return 0;
}

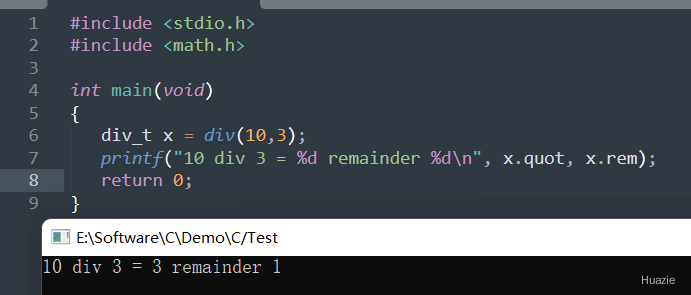

4.3 运行结果

5. drawpoly

5.1 函数说明

函数声明

函数功能

void drawpoly(int numpoints, int *polypoints);

画多边形

参数说明:

  • numpoints:多边形顶点的数量
  • polypoints:一个整数数组,包含多边形的各个顶点的坐标。

5.2 演示示例

代码语言:c
复制
#include <graphics.h>
#include <stdio.h>

int main(void)
{
    // request auto detection
    int gdriver = DETECT, gmode, errorcode;
    int maxx, maxy;

    // our polygon array
    int poly[10];

    // initialize graphics and local variables
    initgraph(&gdriver, &gmode, "");

    // read result of initialization
    errorcode = graphresult();
    if (errorcode != grOk) // an error occurred
    {
        printf("Graphics error: %s\n", grapherrormsg(errorcode));
        printf("Press any key to halt:");
        getch();
        // terminate with an error code
        exit(1);
    }

    maxx = getmaxx();
    maxy = getmaxy();

    poly[0] = 20;
    poly[1] = maxy / 2;

    poly[2] = maxx - 20;
    poly[3] = 20;

    poly[4] = maxx - 50;
    poly[5] = maxy - 20;

    poly[6] = maxx / 2;
    poly[7] = maxy / 2;

    // drawpoly doesn't automatically close the polygon, so we close it.

    poly[8] = poly[0];
    poly[9] = poly[1];

    // draw the polygon
    drawpoly(5, poly);

    // clean up
    getch();
    closegraph();
    return 0;
}

5.3 运行结果

6. dup

6.1 函数说明

函数声明

函数功能

int dup(int handle);

复制文件描述符;若成功为新的文件描述,若出错为-1

dup 返回的新文件描述符一定是当前可用文件描述中的最小数值。

6.2 演示示例

代码语言:c
复制
#include <sys/types.h>
#include <sys/stat.h>
#include <string.h>
#include <stdio.h>
#include <conio.h>
#include <fcntl.h>
#include <io.h>

void flush(FILE *stream);

int main(void)
{
    FILE *fp;
    char msg[] = "This is a test";

    fp = fopen("STU.FIL", "w");

    fwrite(msg, strlen(msg), 1, fp);

    int handle;

    handle = open("temp.txt", _O_RDWR | _O_CREAT, _S_IREAD | _S_IWRITE);
    printf("file hanlde : %d\n", handle);

    printf("Press any key to flush STU.FIL:");
    getchar();

    flush(fp);

    printf("\nFile was flushed, Press any key to quit:");
    getchar();
    return 0;
}

void flush(FILE *stream)
{
    int duphandle;

    fflush(stream);

    duphandle = dup(fileno(stream));

    printf("duplicate file hanlde : %d", duphandle);

    close(duphandle);
}

上述代码可以简单总结如下:

  1. 首先,它打开一个名为"STU.FIL"的文件,并以写入模式打开。
  2. 然后,将字符串"This is a test"写入该文件。
  3. 接下来,它打开一个名为 "temp.txt" 的文件,并获取其文件句柄。
  4. 然后,提示用户按下任意键以刷新 "STU.FIL" 文件。
  5. 接着,调用自定义的flush函数来刷新文件缓冲区。
    • 首先调用fflush函数来刷新传入的文件流的缓冲区;
    • 然后,使用dup函数复制文件描述符,并将其存储在duphandle变量中;
    • 接着,打印出复制的文件句柄;
    • 最后,关闭复制的文件句柄。
  6. 最后,再次提示用户按下任意键以退出程序。

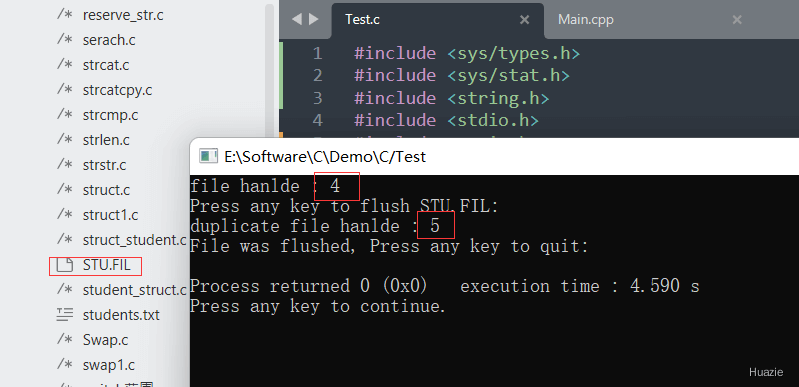

6.3 运行结果

7. dup2

7.1 函数说明

函数声明

函数功能

int dup2(int oldhandle, int newhandle);

复制文件描述符;若成功为新的文件描述,若出错为-1。

dup2 可以用 newhandle 参数指定新的描述符数值。如果 newhandle 已经打开,则先关闭。若 oldhandle = newhandle,则 dup2 返回 newhandle,而不关闭它。

7.2 演示示例

代码语言:c
复制
#include <sys\stat.h>
#include <stdio.h>
#include <string.h>
#include <fcntl.h>
#include <io.h>

int main(void)
{
    #define STDOUT 1

    int handle, oldstdout;
    char msg[] = "This is a test1";

    handle = open("STU.FIL", O_CREAT | O_RDWR, S_IREAD | S_IWRITE);
    printf("open file handle : %d\n", handle);

    oldstdout = dup(STDOUT);
    printf("dup file handle : %d", oldstdout);

    dup2(handle, STDOUT);

    close(handle);

    write(STDOUT, msg, strlen(msg));

    dup2(oldstdout, STDOUT);

    close(oldstdout);

    return 0;
}

上述代码简单分析如下:

  • 定义常量 STDOUT,其值为 1,表示标准输出的文件描述符;
  • 定义整型变量 handleoldstdout,以及字符数组 msg,用于存储要写入文件的字符串;
  • 使用 open 函数打开名为 "STU.FIL" 的文件,以创建和读写模式(O_CREAT | O_RDWR)打开,并设置文件权限为可读可写(S_IREAD | S_IWRITE);将返回的文件描述符赋值给 handle,并打印出来;
  • 使用 dup 函数备份当前的标准输出(STDOUT),将备份的文件描述符赋值给 oldstdout,并打印出来;
  • 使用 dup2 函数将标准输出重定向到 handle 指向的文件,即将后续的输出内容写入到 "STU.FIL" 文件中;
  • 关闭 handle 指向的文件句柄;
  • 使用 write 函数将 msg 字符串写入到标准输出(此时已经重定向到文件),长度为字符串的长度;
  • 使用 dup2 函数将标准输出恢复到备份的文件描述符 oldstdout,即将后续的输出内容输出到屏幕上。
  • 关闭 oldstdout 指向的文件句柄。

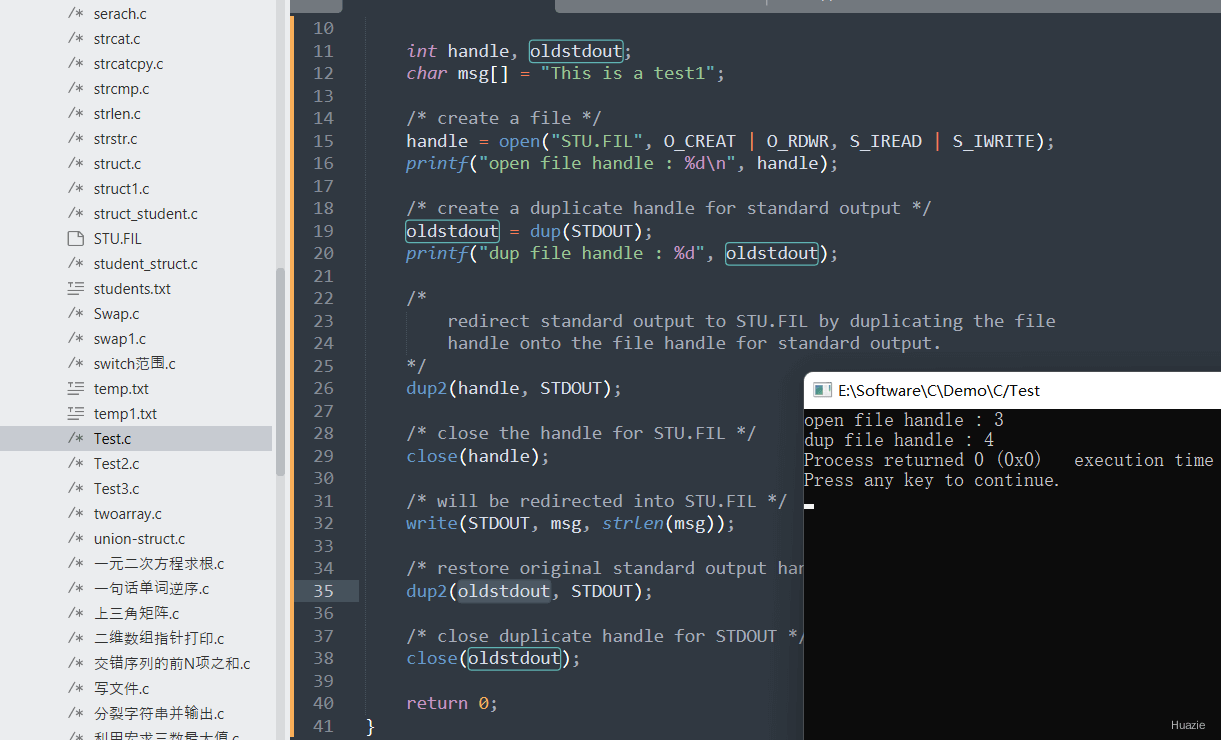

7.3 运行结果

参考

  1. [API Reference Document]
