了解到一个发表在bioinformatics的用于多组学聚类的R包MOVICS，学习下他的Vignette。它支持10个聚类算法，综合考虑多组学数据，多算法聚类，并且可以直接做出发表级的图，很强大。还是做肿瘤资源多呀，除了TCGA上哪里去找这么大样本量的、同一批人的多组学数据呢。使用browseVignettes("MOVICS")这句代码即可召唤作者写的详细教程啦。


1.载入示例数据

library(MOVICS)
library(purrr)
load(system.file("extdata", "brca.tcga.RData", package = "MOVICS", mustWork = TRUE))
load(system.file("extdata", "brca.yau.RData",  package = "MOVICS", mustWork = TRUE))

了解数据，发现是brca的多组学数据，如下：

names(brca.tcga)

## [1] "mRNA.expr"   "lncRNA.expr" "meth.beta"   "mut.status"  "count"
## [6] "fpkm"        "maf"         "segment"     "clin.info"

sapply(brca.tcga, dim)

##      mRNA.expr lncRNA.expr meth.beta mut.status count  fpkm    maf segment
## [1,]       500         500      1000         30 13771 13771 120988  381953
## [2,]       643         643       643        643   643   643     10       5
##      clin.info
## [1,]       643
## [2,]         5

names(brca.yau)

## [1] "mRNA.expr" "clin.info"

sapply(brca.tcga, dim)

##      mRNA.expr lncRNA.expr meth.beta mut.status count  fpkm    maf segment
## [1,]       500         500      1000         30 13771 13771 120988  381953
## [2,]       643         643       643        643   643   643     10       5
##      clin.info
## [1,]       643
## [2,]         5

# extract multi-omics data
mo.data   <- brca.tcga[1:4]
count     <- brca.tcga$count
fpkm      <- brca.tcga$fpkm
maf       <- brca.tcga$maf
segment   <- brca.tcga$segment
surv.info <- brca.tcga$clin.info
head(surv.info)

##               fustat futime PAM50 pstage age
## BRCA-A03L-01A      0   2442  LumA     T3  34
## BRCA-A04R-01A      0   2499  LumB     T1  36
## BRCA-A075-01A      0    518  LumB     T2  42
## BRCA-A08O-01A      0    943  LumA     T2  45
## BRCA-A0A6-01A      0    640  LumA     T2  64
## BRCA-A0AD-01A      0   1157  LumA     T1  83

给的是已经筛选过基因的数据，我们自己使用时是要自己筛选的，可以自己写代码筛选，也可以使用getElites函数来筛选。

2.getElites筛选基因

对缺失值的处理

na.action参数：含有缺失值的行可以选择删除na.action = "rm"或者是插补na.action = "impute"，前者是默认值 elite.pct : 选择前百分之多少的特征 elite.num ：选择前多少个特征，如果同时指定pct和num，会以num为准提供了5种筛选方法： mad中位数绝对偏差 sd 标准差 cox 单因素Cox 比例风险回归 freq 二元组学数据 pca 主成分分析

cox按照p值筛选

如果使用cox方法，则需提供surv.info，列名必须有futime和fustat

freq按照突变频数或频率

freq只支持二元组学数据，需要注意freq下的elite.num>80就是是挑突变样本数量大于80的基因 elite.pct>0.2是突变样本数量/样本总数>0.2的基因示例数据已经筛选好的，如果是未筛选的数据，可以把上面的前三个组学数据都用mad和cox方法筛选一下，示例代码如下(我整的)：

if(F){
  names(brca.tcga)
mo.data = lapply(brca.tcga[1:3], function(x){
  x %>%
  getElites(elite.num = 200) %>%
  pluck('elite.dat') %>%
  getElites(method= "cox",surv.info = surv.info,p.cutoff = 0.05) %>%
  pluck('elite.dat')
})
mo.data$mut.status = getElites(dat  = brca.tcga$mut.status,
                               method    = "freq",
                               elite.pct = 0.02) %>%
  pluck('elite.dat')
sapply(mo.data, dim)
}

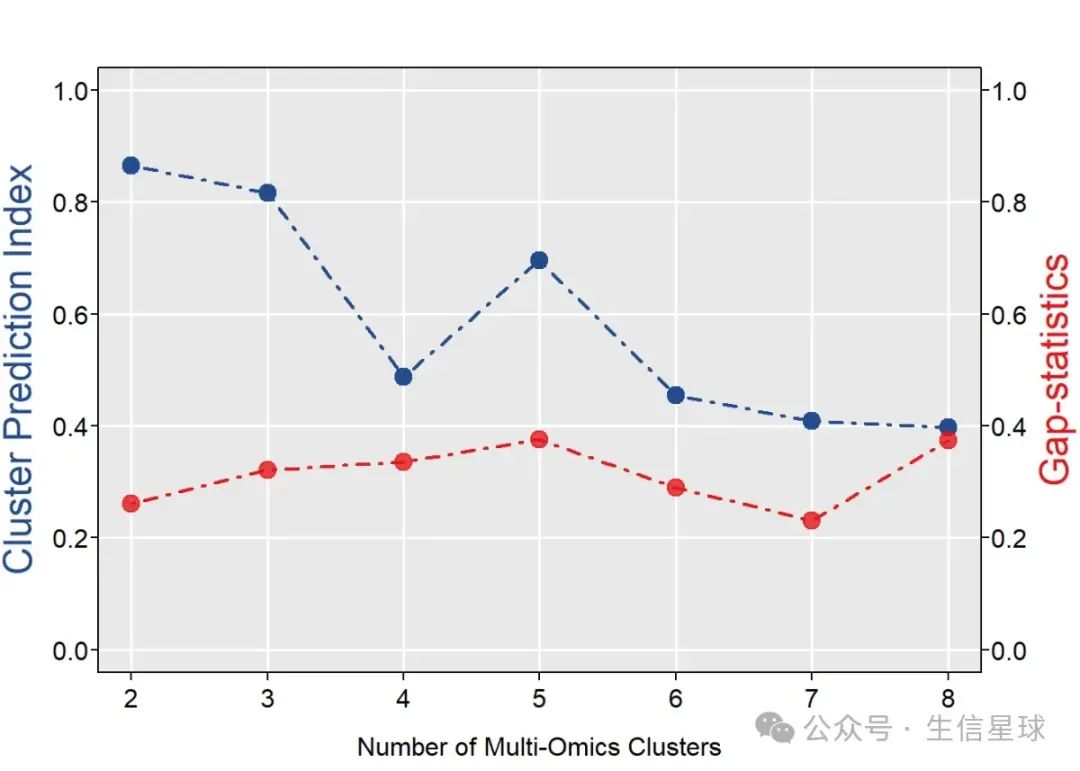

3.获取聚类的最佳数量

运行超级慢

optk.brca <- getClustNum(data        = mo.data,
                         is.binary   = c(F,F,F,T), #二元数据写T
                         try.N.clust = 2:8,
                         fig.name    = "CLUSTER NUMBER OF TCGA-BRCA")

optk.brca$N.clust

## [1] 3

不一定非要使用计算出来的最佳数量，可以结合背景知识另行选择，作者给的示例是乳腺癌所以选了5，因为乳腺癌公认的PAM50分型是分了5种亚型，我在这里是使用了3，试试而已，跑跑看。

4.多组学数据、多算法聚类

从getMOIC帮助文档可以看到10种聚类算法：“SNF”, “CIMLR”, “PINSPlus”, “NEMO”, “COCA”, “MoCluster”, “LRAcluster”, “ConsensusClustering”, “IntNMF”, “iClusterBayes”，运行慢到可以去睡一觉回来。。。

moic.res.list <- getMOIC(data        = mo.data,
                         methodslist = list("SNF", "PINSPlus", "NEMO", "COCA", "LRAcluster", "ConsensusClustering", "IntNMF", "CIMLR", "MoCluster","iClusterBayes"),
                         N.clust     = 3,
                         type        = c("gaussian", "gaussian", "gaussian", "binomial"))

5.整合不同算法

直接出个热图来

cmoic.brca <- getConsensusMOIC(moic.res.list = moic.res.list,
                               fig.name      = "CONSENSUS HEATMAP",
                               distance      = "euclidean",
                               linkage       = "average")

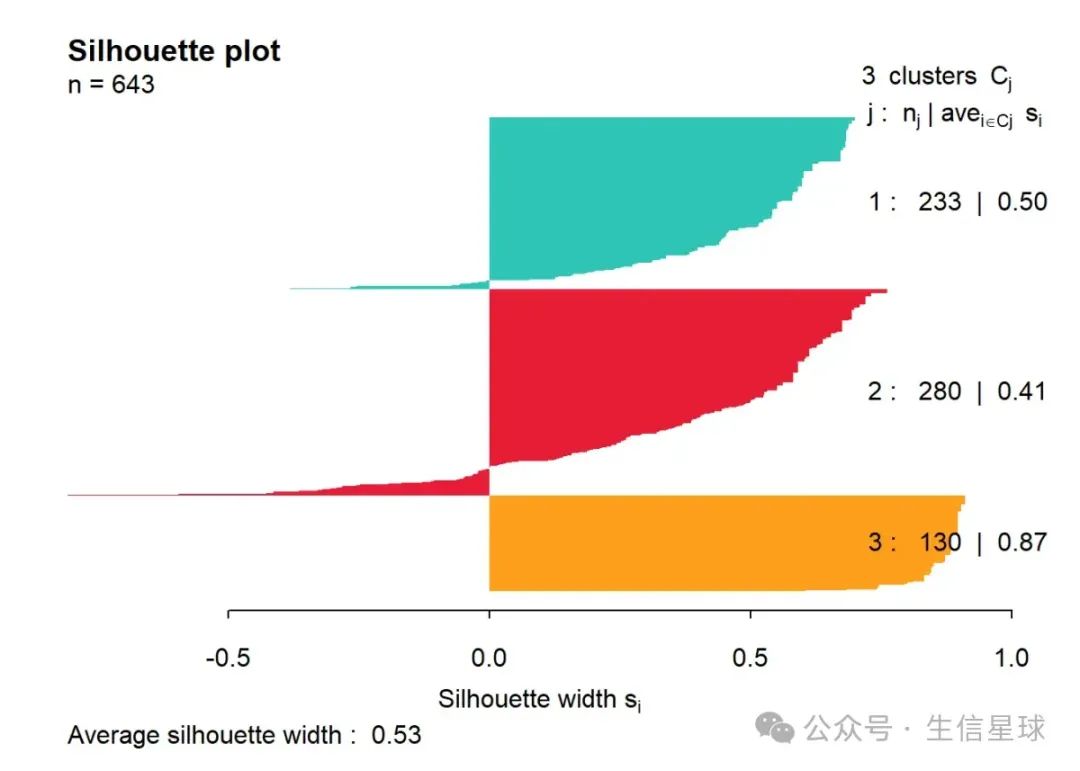

6.量化样本相似度

getSilhouette(sil      = cmoic.brca$sil, # a sil object returned by getConsensusMOIC()
              fig.path = getwd(),
              fig.name = "SILHOUETTE",
              height   = 5.5,
              width    = 5)

## png
##   2

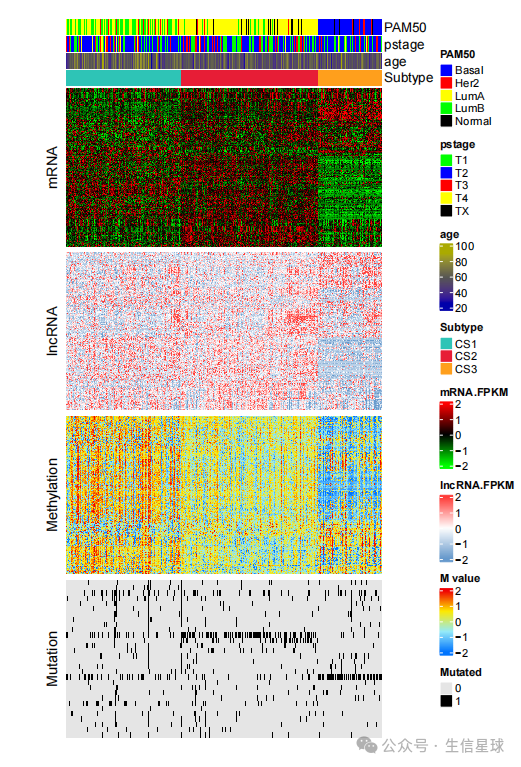

7.基于聚类结果画多组学热图

获取画图数据

# convert beta value to M value for stronger signal
indata <- mo.data
indata$meth.beta <- log2(indata$meth.beta / (1 - indata$meth.beta))

# data normalization for heatmap
plotdata <- getStdiz(data       = indata,
                     halfwidth  = c(2,2,2,NA), # no truncation for mutation
                     centerFlag = c(T,T,T,F), # no center for mutation
                     scaleFlag  = c(T,T,T,F)) # no scale for mutation

画图，带有临床信息的

# set color for each omics data
# if no color list specified all subheatmaps will be unified to green and red color pattern
mRNA.col   <- c("#00FF00", "#008000", "#000000", "#800000", "#FF0000")
lncRNA.col <- c("#6699CC", "white"  , "#FF3C38")
meth.col   <- c("#0074FE", "#96EBF9", "#FEE900", "#F00003")
mut.col    <- c("grey90" , "black")
col.list   <- list(mRNA.col, lncRNA.col, meth.col, mut.col)
# extract PAM50, pathologic stage and age for sample annotation
annCol    <- surv.info[,c("PAM50", "pstage", "age"), drop = FALSE]

# generate corresponding colors for sample annotation
annColors <- list(age    = circlize::colorRamp2(breaks = c(min(annCol$age),
                                                           median(annCol$age),
                                                           max(annCol$age)),
                                                colors = c("#0000AA", "#555555", "#AAAA00")),
                  PAM50  = c("Basal" = "blue",
                            "Her2"   = "red",
                            "LumA"   = "yellow",
                            "LumB"   = "green",
                            "Normal" = "black"),
                  pstage = c("T1"    = "green",
                             "T2"    = "blue",
                             "T3"    = "red",
                             "T4"    = "yellow",
                             "TX"    = "black"))

# comprehensive heatmap (may take a while)
getMoHeatmap(data          = plotdata,
             row.title     = c("mRNA","lncRNA","Methylation","Mutation"),
             is.binary     = c(F,F,F,T), # the 4th data is mutation which is binary
             legend.name   = c("mRNA.FPKM","lncRNA.FPKM","M value","Mutated"),
             clust.res     = cmoic.brca$clust.res, # consensusMOIC results
             clust.dend    = NULL, # show no dendrogram for samples
             show.rownames = c(F,F,F,F), # specify for each omics data
             show.colnames = FALSE, # show no sample names
             show.row.dend = c(F,F,F,F), # show no dendrogram for features
             annRow        = NULL, # no selected features
             color         = col.list,
             annCol        = annCol, # annotation for samples
             annColors     = annColors, # annotation color
             width         = 10, # width of each subheatmap
             height        = 5, # height of each subheatmap
             fig.name      = "COMPREHENSIVE HEATMAP OF CONSENSUSMOIC")

8.亚型之间的比较

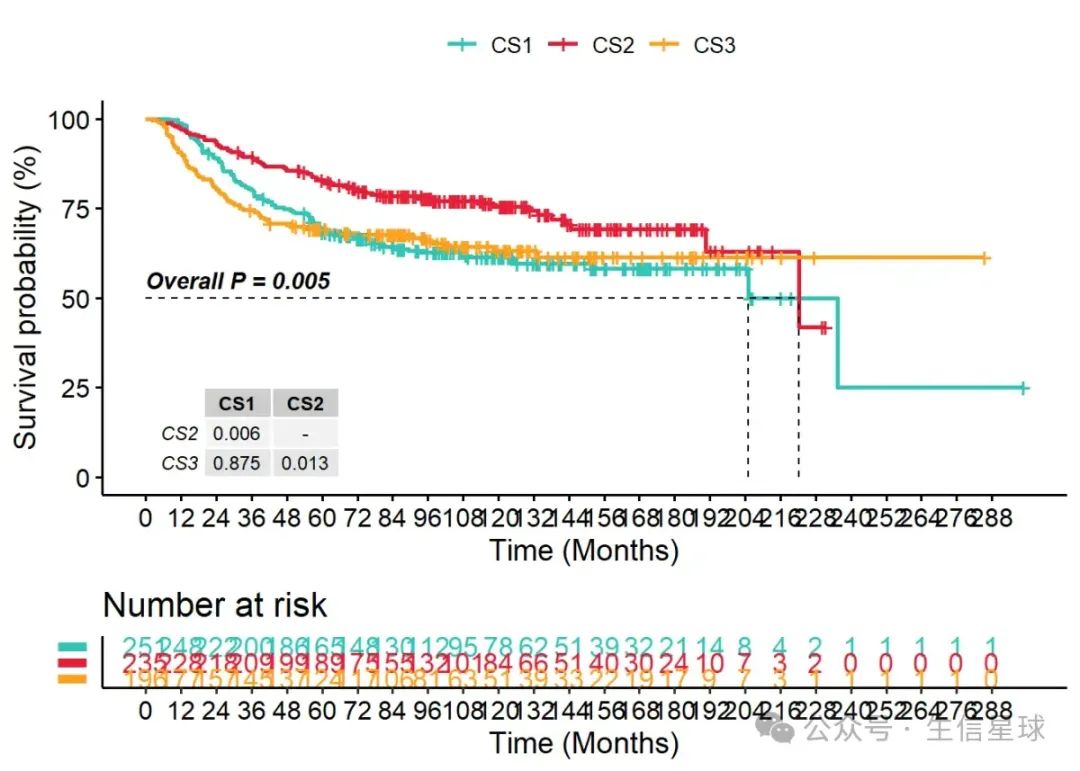

常见的是比较生存情况-KMplot

surv.brca <- compSurv(moic.res         = cmoic.brca,
                      surv.info        = surv.info,
                      convt.time       = "m", # convert day unit to month
                      surv.median.line = "h", # draw horizontal line at median survival
                      xyrs.est         = c(5,10), # estimate 5 and 10-year survival
                      fig.name         = "KAPLAN-MEIER CURVE OF CONSENSUSMOIC")

9.亚型之间的差异分析

runDEA(dea.method = "edger",
       expr       = count, # raw count data
       moic.res   = cmoic.brca,
       prefix     = "TCGA-BRCA") # prefix of figure name
## edger of CS1_vs_Others done...
## edger of CS2_vs_Others done...
## edger of CS3_vs_Others done...

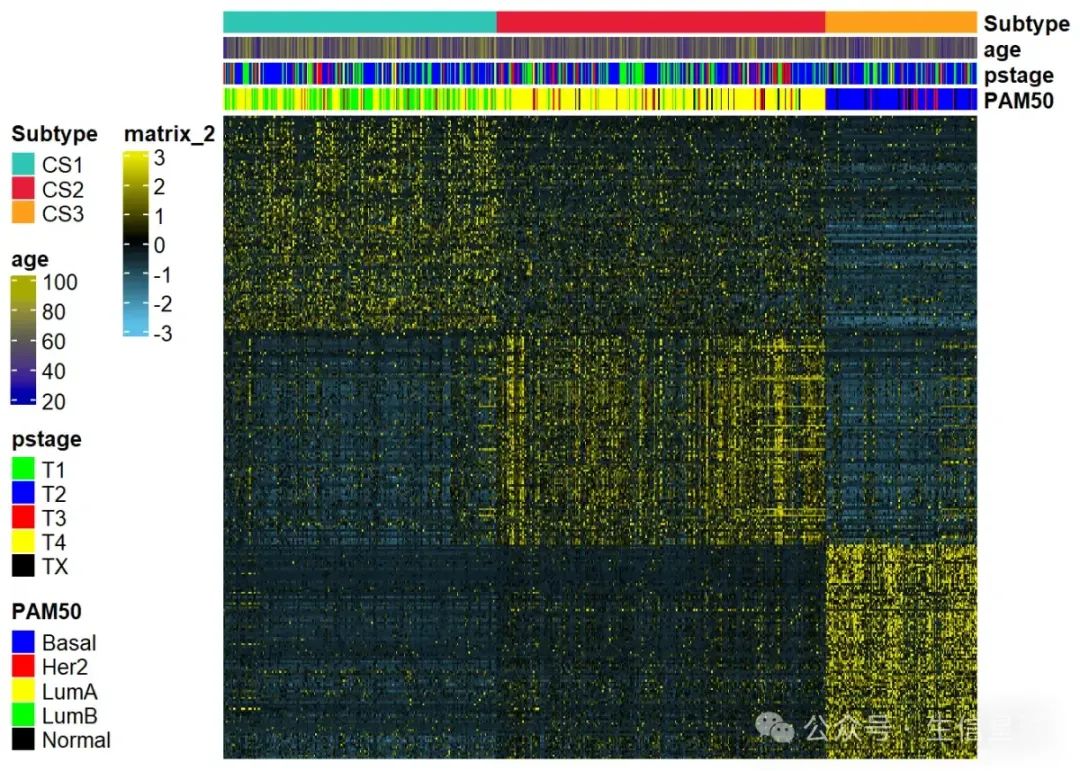

10.鉴定marker基因

这个是选出edger计算的每个亚型的前100个基因

marker.up <- runMarker(moic.res      = cmoic.brca,
                       dea.method    = "edger", # name of DEA method
                       prefix        = "TCGA-BRCA", # MUST be the same of argument in runDEA()
                       dat.path      = getwd(), # path of DEA files
                       res.path      = getwd(), # path to save marker files
                       p.cutoff      = 0.05, # p cutoff to identify significant DEGs
                       p.adj.cutoff  = 0.05, # padj cutoff to identify significant DEGs
                       dirct         = "up", # direction of dysregulation in expression
                       n.marker      = 100, # number of biomarkers for each subtype
                       doplot        = TRUE, # generate diagonal heatmap
                       norm.expr     = fpkm, # use normalized expression as heatmap input
                       annCol        = annCol, # sample annotation in heatmap
                       annColors     = annColors, # colors for sample annotation
                       show_rownames = FALSE, # show no rownames (biomarker name)
                       fig.name      = "UPREGULATED BIOMARKER HEATMAP")

11.给外部数据预测亚型

NTP(nearest template prediction)和PAM(partition around medoids)两种算法，可以根据选中的marker来给外部数据预测亚型，templates是在上一步runMarker时生成出来的。

names(brca.yau) #这是外部数据
## [1] "mRNA.expr" "clin.info"

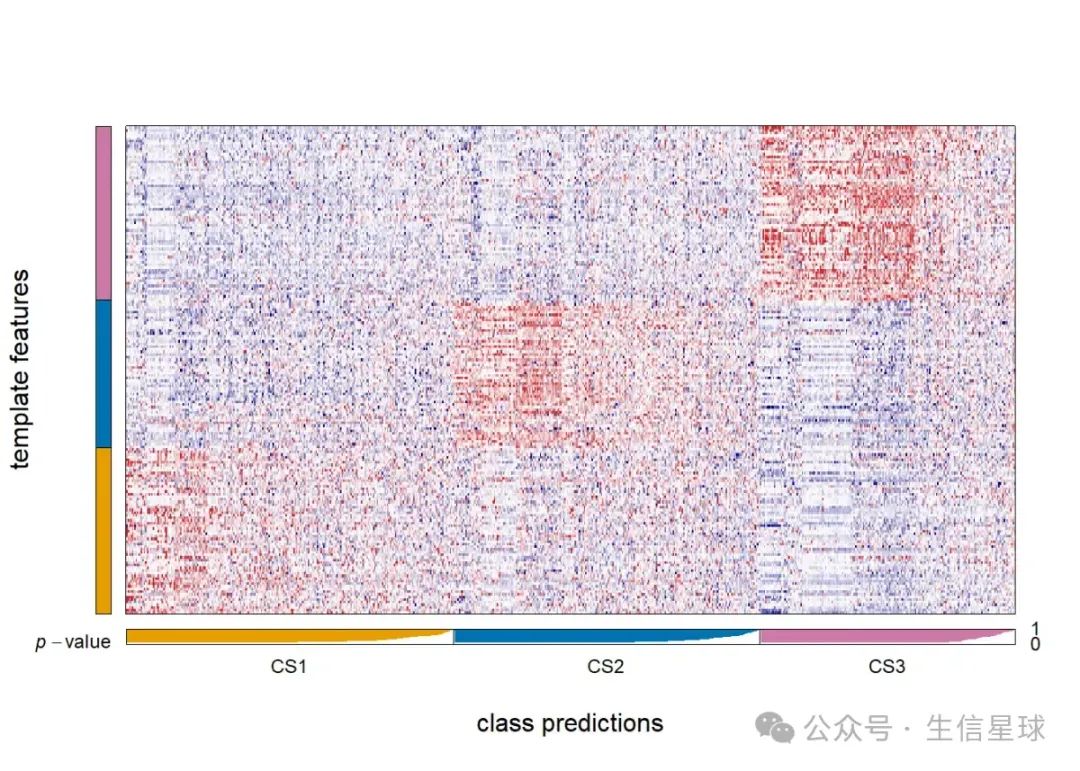

# run NTP in Yau cohort by using up-regulated biomarkers
yau.ntp.pred <- runNTP(expr       = brca.yau$mRNA.expr,
                       templates  = marker.up$templates, # the template has been already prepared in runMarker()
                       scaleFlag  = TRUE, # scale input data (by default)
                       centerFlag = TRUE, # center input data (by default)
                       doPlot     = TRUE, # to generate heatmap
                       fig.name   = "NTP HEATMAP FOR YAU")

##
##  CS1  CS2  CS3 <NA>
##  131  139  145  267

yau.pam.pred <- runPAM(train.expr  = fpkm,
                       moic.res    = cmoic.brca,
                       test.expr   = brca.yau$mRNA.expr)

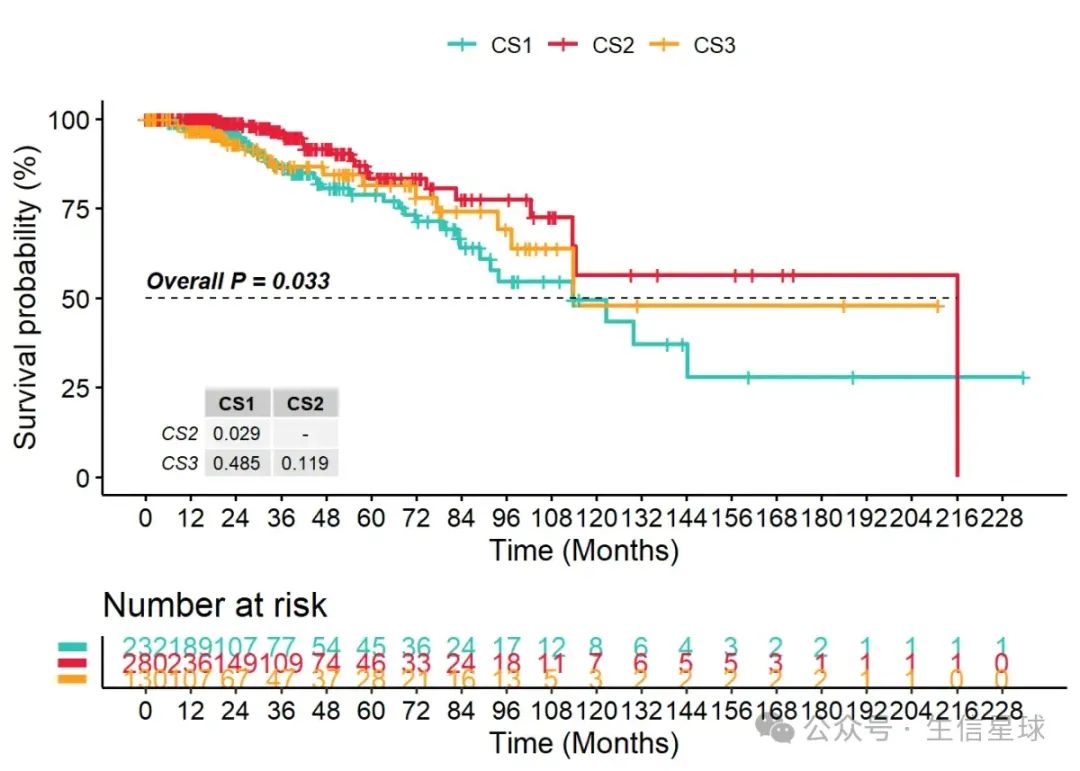

12.比较外部数据的亚型的生存情况

surv.yau <- compSurv(moic.res         = yau.ntp.pred,
                     surv.info        = brca.yau$clin.info,
                     convt.time       = "m", # switch to month
                     surv.median.line = "hv", # switch to both
                     fig.name         = "KAPLAN-MEIER CURVE OF NTP FOR YAU")

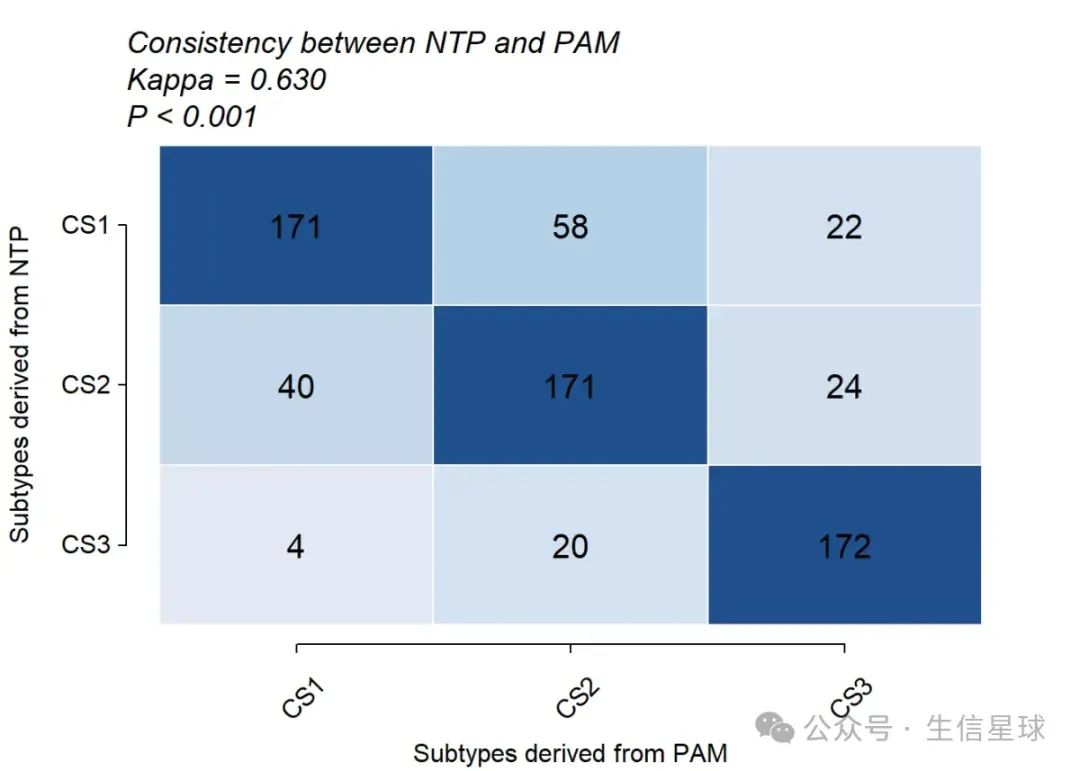

13.可以检查一致程度

可以对TCGA队列跑NTP和PAM，分别比较其结果和原来得到的亚型一致程度如何；或者是比较NTP和PAM

runKappa(subt1     = yau.ntp.pred$clust.res$clust,
         subt2     = yau.pam.pred$clust.res$clust,
         subt1.lab = "NTP",
         subt2.lab = "PAM",
         fig.name  = "CONSISTENCY HEATMAP FOR YAU")
