🤩 Cellchat | 空间转录组也可以做细胞通讯啦！~（一）（单个数据集篇）

rm(list = ls())
library(tidyverse)
library(CellChat)
library(Seurat)

load("./visium_mouse_cortex_annotated.RData")
# show the image and annotated spots
color.use <- scPalette(nlevels(visium.brain)); names(color.use) <- levels(visium.brain)

# Prepare input data for CelChat analysis
data.input = Seurat::GetAssayData(visium.brain, slot = "data", assay = "SCT") # normalized data matrix

meta = data.frame(labels = Seurat::Idents(visium.brain), samples = "sample1", row.names = names(Seurat::Idents(visium.brain))) # manually create a dataframe consisting of the cell labels
meta$samples <- factor(meta$samples)
unique(meta$labels) # check the cell labels

unique(meta$samples) # check the sample labels

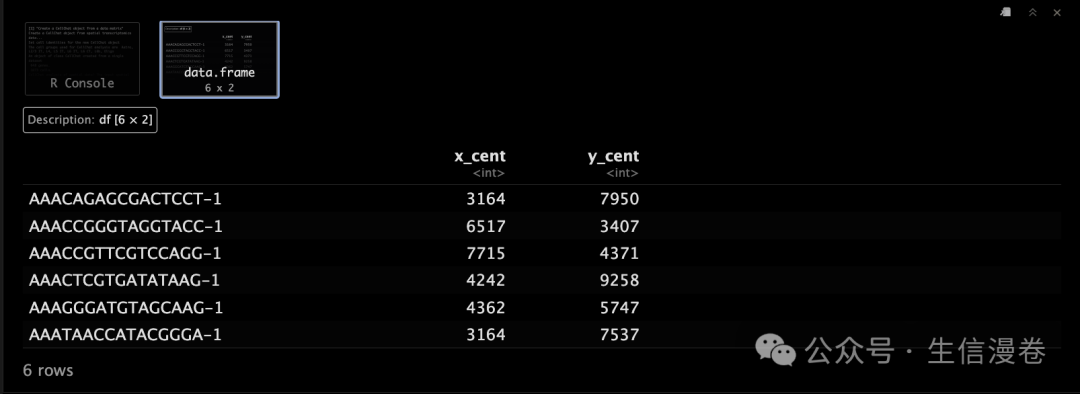

spatial.locs = Seurat::GetTissueCoordinates(visium.brain, scale = NULL, cols = c("imagerow", "imagecol"))

scalefactors = jsonlite::fromJSON(txt = file.path("./spatial_imaging_data_visium-brain", 'scalefactors_json.json'))
spot.size = 65 # the theoretical spot size (um) in 10X Visium
conversion.factor = spot.size/scalefactors$spot_diameter_fullres
spatial.factors = data.frame(ratio = conversion.factor, tol = spot.size/2)

d.spatial <- computeCellDistance(coordinates = spatial.locs, ratio = spatial.factors$ratio, tol = spatial.factors$tol)
min(d.spatial[d.spatial!=0]) # this value should approximately equal 100um for 10X Visium data

cellchat <- createCellChat(object = data.input, meta = meta, group.by = "labels",
                           datatype = "spatial", coordinates = spatial.locs, spatial.factors = spatial.factors)
cellchat

CellChatDB <- CellChatDB.mouse # use CellChatDB.human if running on human data

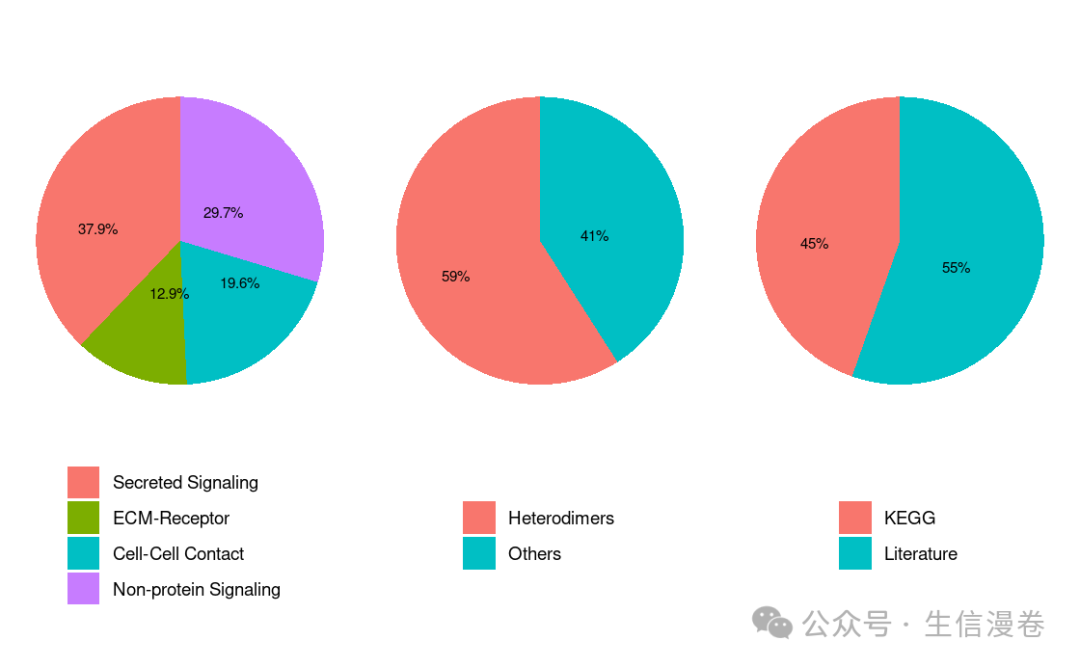

showDatabaseCategory(CellChatDB)

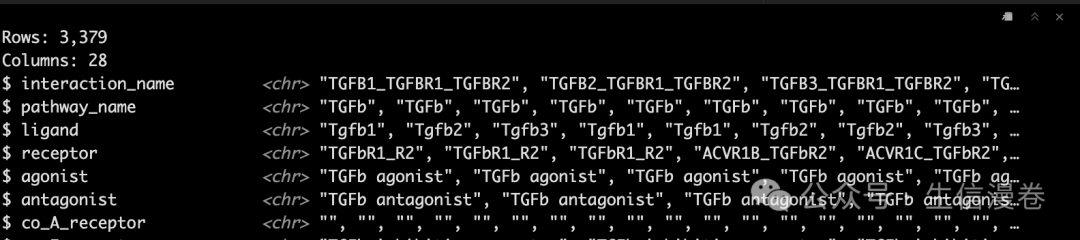

dplyr::glimpse(CellChatDB$interaction)

# use a subset of CellChatDB for cell-cell communication analysis
CellChatDB.use <- subsetDB(CellChatDB, search = "Secreted Signaling", key = "annotation") # use Secreted Signaling

# Only uses the Secreted Signaling from CellChatDB v1
#  CellChatDB.use <- subsetDB(CellChatDB, search = list(c("Secreted Signaling"), c("CellChatDB v1")), key = c("annotation", "version"))

# use all CellChatDB except for "Non-protein Signaling" for cell-cell communication analysis
# CellChatDB.use <- subsetDB(CellChatDB)


# use all CellChatDB for cell-cell communication analysis
# CellChatDB.use <- CellChatDB # simply use the default CellChatDB. We do not suggest to use it in this way because CellChatDB v2 includes "Non-protein Signaling" (i.e., metabolic and synaptic signaling) that can be only estimated from gene expression data.

# set the used database in the object
cellchat@DB <- CellChatDB.use

# subset the expression data of signaling genes for saving computation cost
cellchat <- subsetData(cellchat) # This step is necessary even if using the whole database
future::plan("multisession", workers = 4)
cellchat <- identifyOverExpressedGenes(cellchat)
cellchat <- identifyOverExpressedInteractions(cellchat, variable.both = F)

# cellchat <- projectData(cellchat, PPI.mouse)

cellchat <- computeCommunProb(cellchat,
                              type = "truncatedMean",
                              trim = 0.1,
                              distance.use = TRUE,
                              interaction.range = 250,
                              scale.distance = 0.01,
                              contact.dependent = TRUE,
                              contact.range = 100,
                              nboot = 50
                              )

cellchat <- filterCommunication(cellchat, min.cells = 10)

df.net <- subsetCommunication(cellchat)

cellchat <- computeCommunProbPathway(cellchat)

cellchat <- aggregateNet(cellchat)

groupSize <- as.numeric(table(cellchat@idents))
par(mfrow = c(1,2), xpd=TRUE)

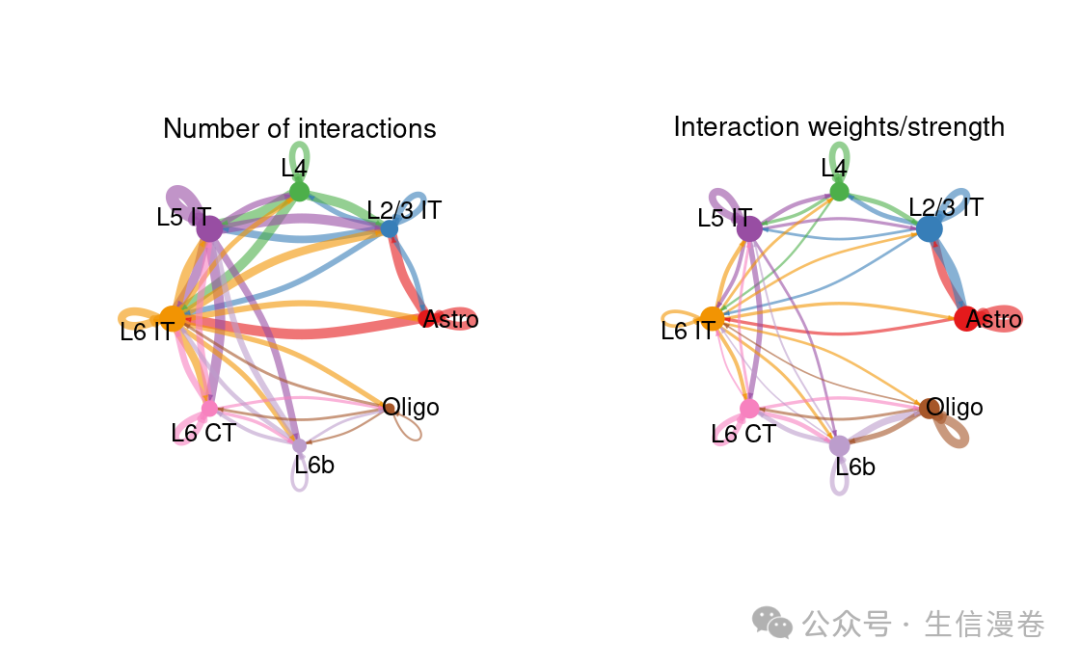

netVisual_circle(cellchat@net$count, vertex.weight = rowSums(cellchat@net$count), weight.scale = T, label.edge= F, title.name = "Number of interactions")
netVisual_circle(cellchat@net$weight, vertex.weight = rowSums(cellchat@net$weight), weight.scale = T, label.edge= F, title.name = "Interaction weights/strength")

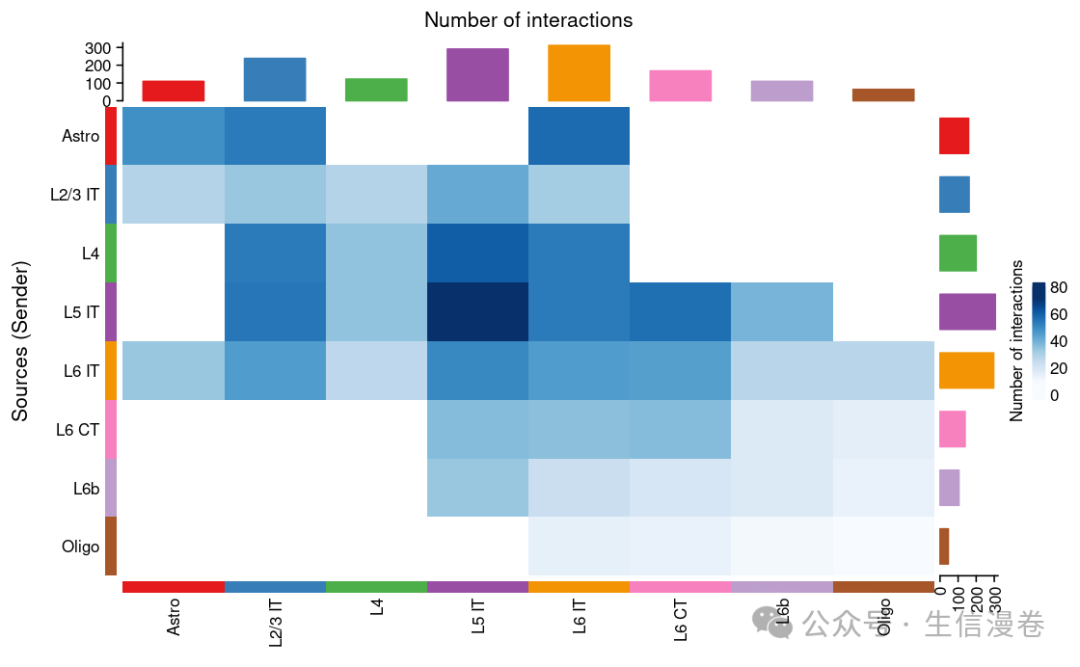

netVisual_heatmap(cellchat, measure = "count", color.heatmap = "Blues")

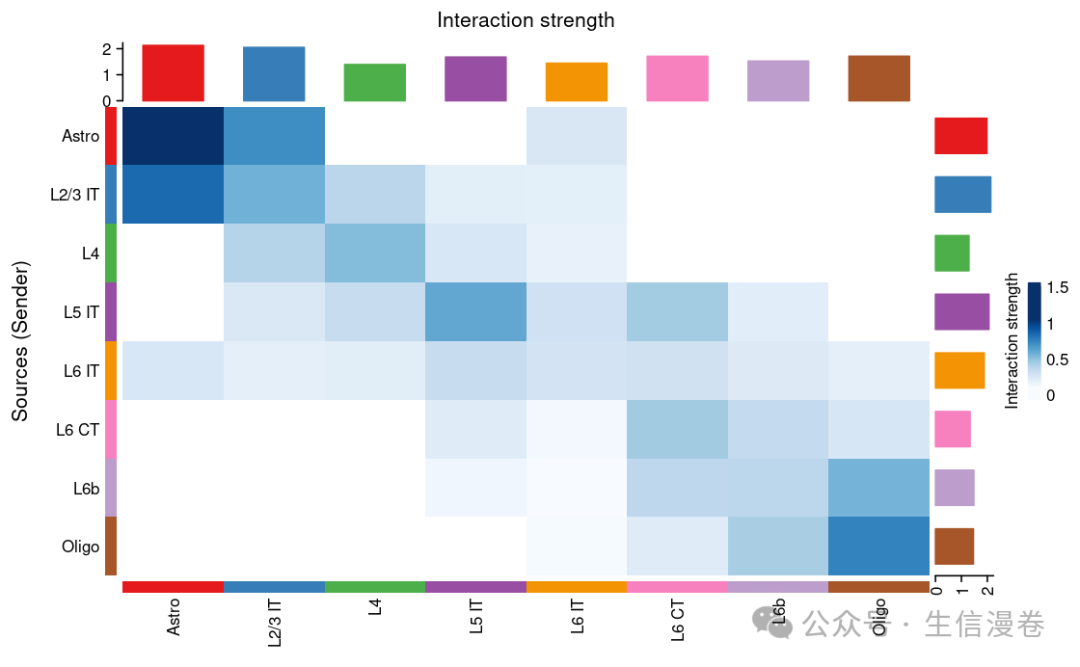

netVisual_heatmap(cellchat, measure = "weight", color.heatmap = "Blues")

pathways.show <- c("IGF")
# Circle plot
par(mfrow=c(1,1), xpd = TRUE) # `xpd = TRUE` should be added to show the title

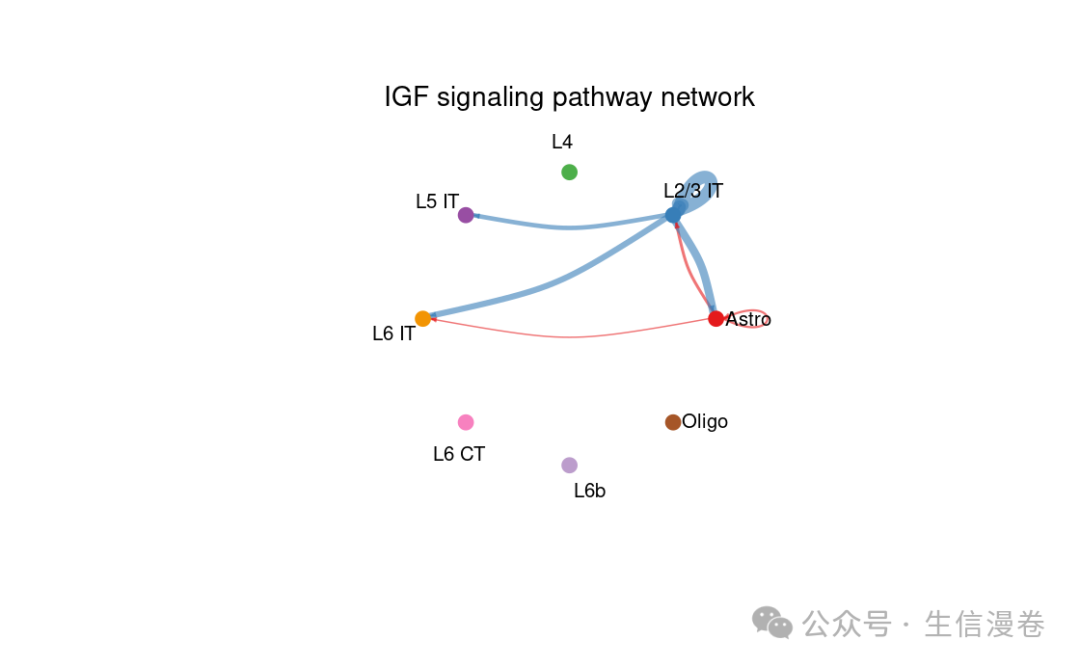

netVisual_aggregate(cellchat, signaling = pathways.show, layout = "circle")

# Spatial plot
par(mfrow=c(1,1))

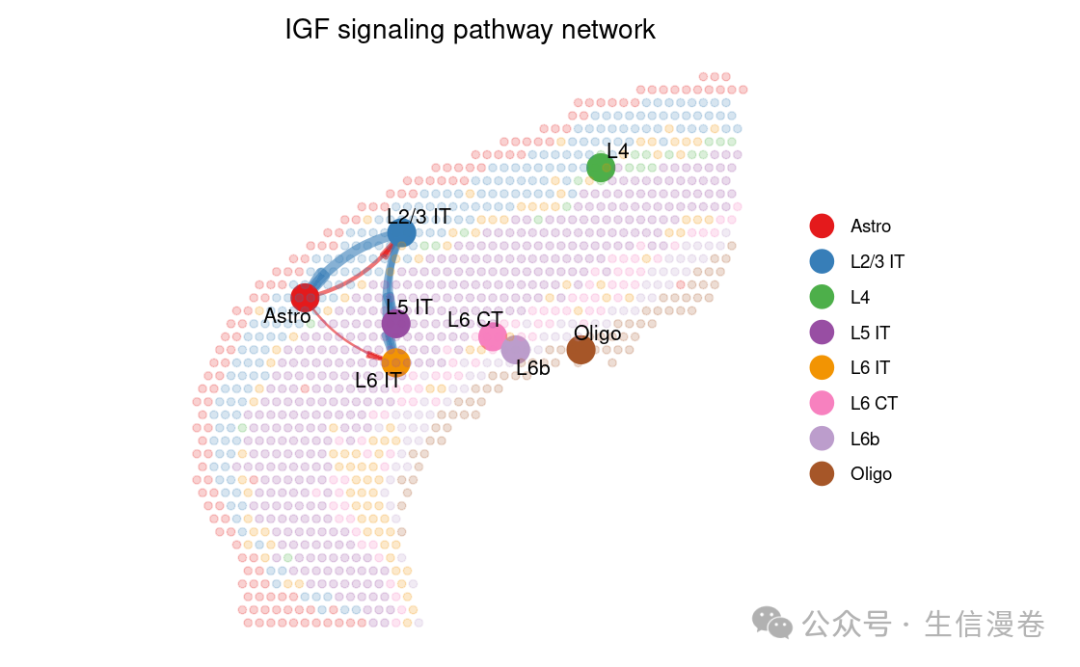

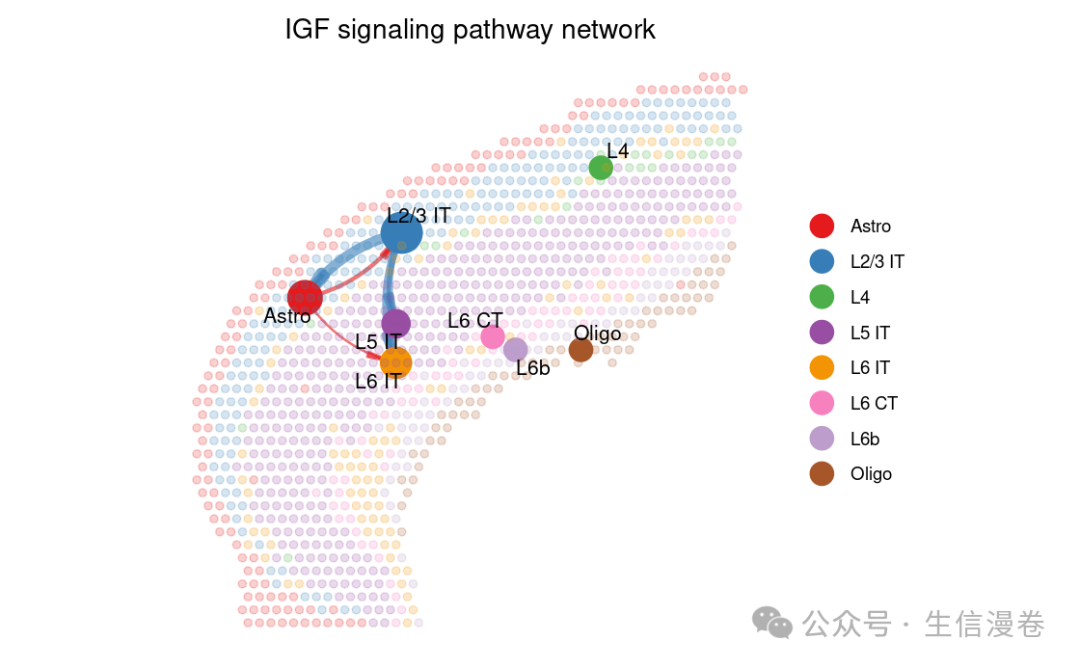

netVisual_aggregate(cellchat, signaling = pathways.show, layout = "spatial", edge.width.max = 2, vertex.size.max = 1, alpha.image = 0.2, vertex.label.cex = 3.5)

# Compute the network centrality scores
cellchat <- netAnalysis_computeCentrality(cellchat, slot.name = "netP") # the slot 'netP' means the inferred intercellular communication network of signaling pathways
# Visualize the computed centrality scores using heatmap, allowing ready identification of major signaling roles of cell groups
par(mfrow=c(1,1))

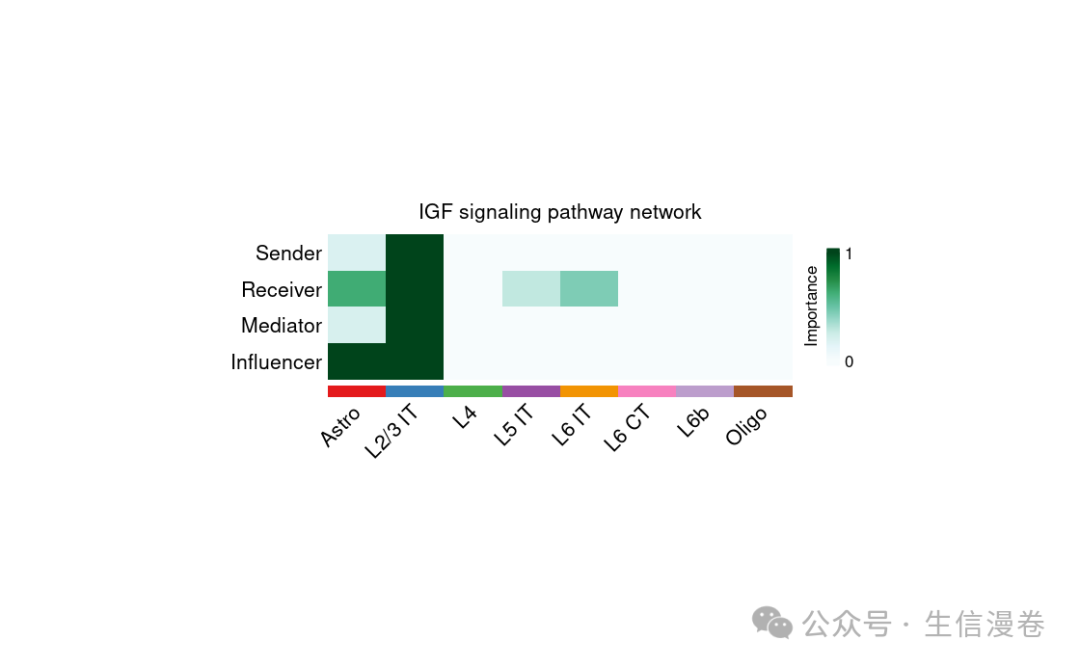

netAnalysis_signalingRole_network(cellchat, signaling = pathways.show, width = 8, height = 2.5, font.size = 10)

# USER can show this information on the spatial transcriptomics when visualizing a signaling network, e.g., bigger circle indicates larger incoming signaling
par(mfrow=c(1,1))
netVisual_aggregate(cellchat, signaling = pathways.show, layout = "spatial", edge.width.max = 2, alpha.image = 0.2, vertex.weight = "incoming", vertex.size.max = 4, vertex.label.cex = 3.5)

# Take an input of a few genes

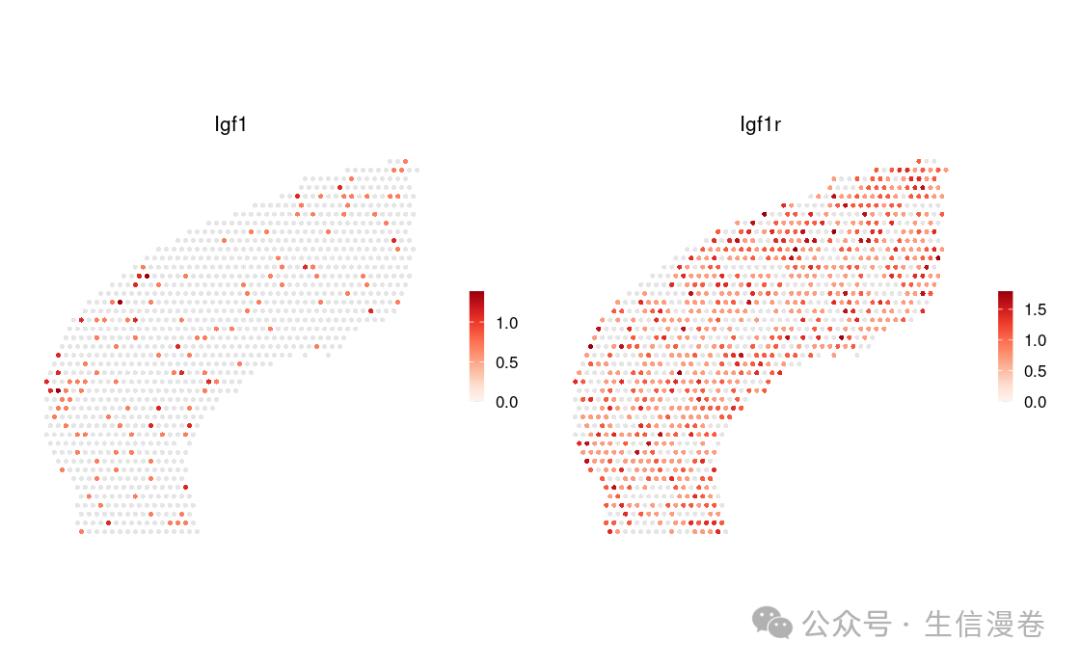

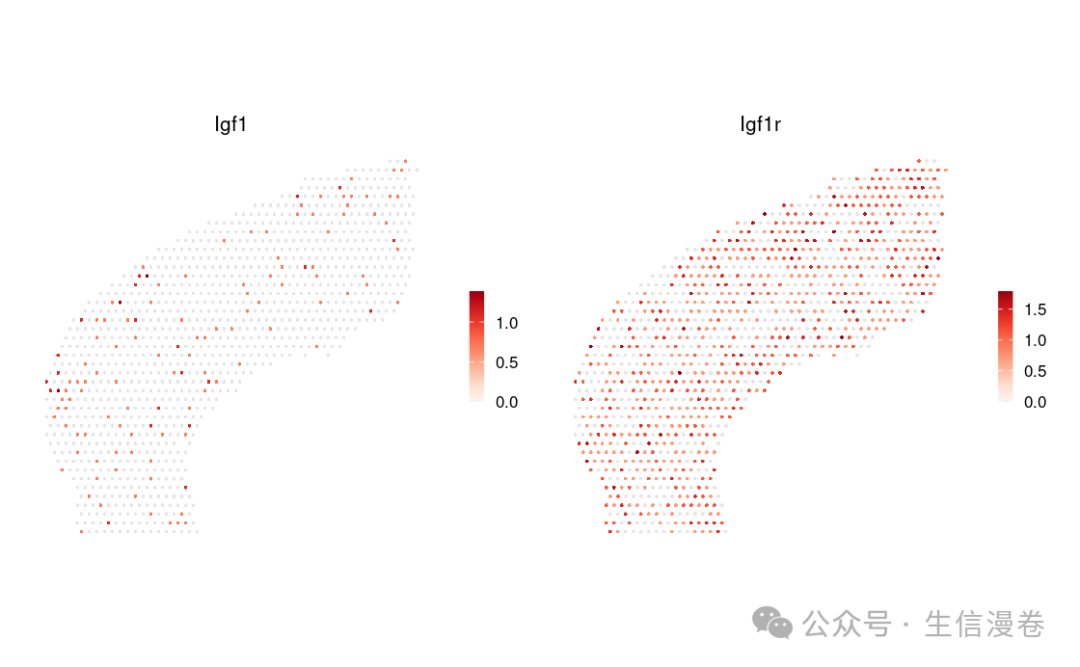

spatialFeaturePlot(cellchat, features = c("Igf1","Igf1r"), point.size = 0.8, color.heatmap = "Reds", direction = 1)

# Take an input of a ligand-receptor pair
spatialFeaturePlot(cellchat, pairLR.use = "IGF1_IGF1R", point.size = 0.5, do.binary = FALSE, cutoff = 0.05, enriched.only = F, color.heatmap = "Reds", direction = 1)

# Take an input of a ligand-receptor pair and show expression in binary

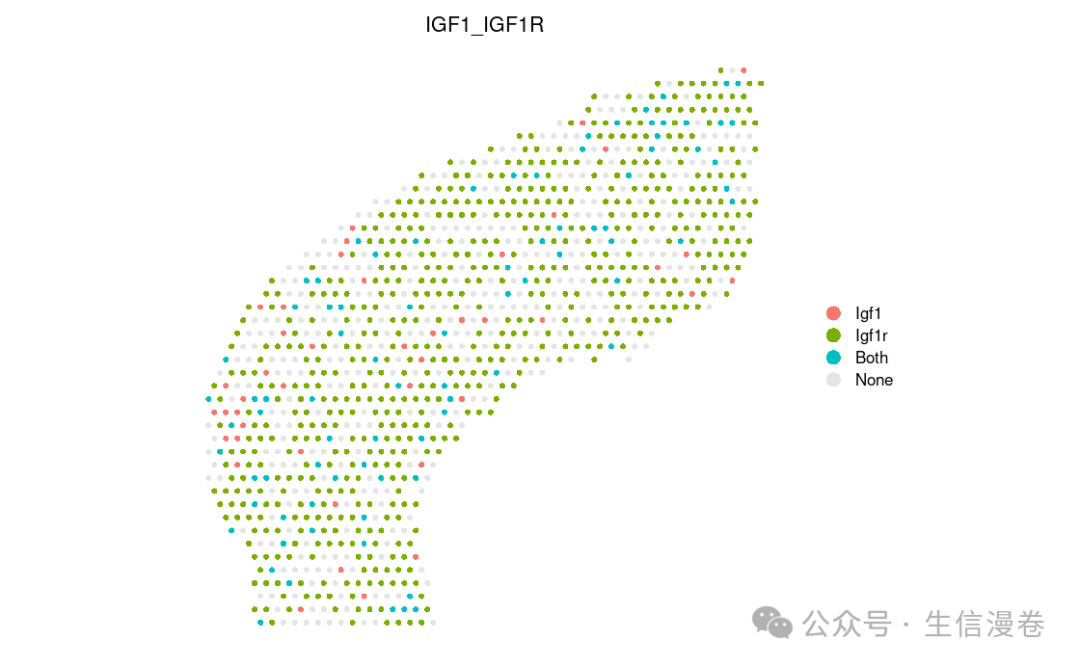

spatialFeaturePlot(cellchat, pairLR.use = "IGF1_IGF1R", point.size = 1, do.binary = TRUE, cutoff = 0.05, enriched.only = F, color.heatmap = "Reds", direction = 1)
