使用高德API和MapboxGL实现路径规划并语音播报

// 创建 SpeechSynthesisUtterance 对象
var utterance = new SpeechSynthesisUtterance();
// 可选：设置语言（例如，中文）
utterance.lang = "zh-CN";
// 可选：设置语音
utterance.voice = window.speechSynthesis.getVoices()[0];
// 可选：设置音量（0.0到1.0之间）
utterance.volume = 1.0;
// 可选：设置语速（正常速度为1.0）
utterance.rate = 1.0;
// 可选：设置语调（正常语调为1.0）
utterance.pitch = 1.0;
// 设置要朗读的文本
utterance.text = '设置要朗读的文本';
window.speechSynthesis.speak(utterance);

<template>
  <div class="container">
    <div class="query">
      <el-form :model="form" label-width="auto" class="query-form">
        <el-form-item label="起点">
          <el-autocomplete
            v-model="form.startPosition"
            :fetch-suggestions="querySearchStart"
            clearable
            placeholder="请输入起点位置"
            @select="handleSelectStart"
          >
            <template #default="{ item }">
              <div class="autocomplete-value">{{ item.value }}</div>
              <div class="autocomplete-address">{{ item.address }}</div>
            </template></el-autocomplete
          >
        </el-form-item>
        <el-form-item label="终点" style="margin-bottom: 0">
          <el-autocomplete
            v-model="form.endPosition"
            :fetch-suggestions="querySearchEnd"
            clearable
            placeholder="请输入终点位置"
            @select="handleSelectEnd"
          >
            <template #default="{ item }">
              <div class="autocomplete-value">{{ item.value }}</div>
              <div class="autocomplete-address">{{ item.address }}</div>
            </template></el-autocomplete
          >
        </el-form-item>
      </el-form>
      <div class="query-button">
        <el-button
          :disabled="!form.startPosition || !form.endPosition"
          class="query-button-inner"
          @click="queryRoute"
          >查询</el-button
        >
      </div>
    </div>
    <div class="map" id="map">
      <div class="map-button">
        <el-button
          v-show="path"
          class="map-button-inner"
          type="primary"
          @click="toggleAnimate"
          >{{ isPlay ? "结束导航" : "开始导航" }}</el-button
        >
      </div>
    </div>
  </div>
</template>

<script>
const AK = "你申请的key"; // 高德地图key
const BASE_URL = "https://restapi.amap.com/v3";
let map = null,
  animation = null;

import { ElMessage, ElMessageBox } from "element-plus";
import AnimationRoute from "./utils/route";

//封装请求
function request(url, params) {
  let fullUrl = `${BASE_URL}${url}?key=${AK}`;
  for (const key in params) {
    fullUrl += `&${key}=${params[key]}`;
  }
  return new Promise((resolve, reject) => {
    fetch(fullUrl)
      .then((res) => res.json())
      .then((res) => {
        if (res.status === "1") resolve(res);
        else {
          ElMessage.error("接口请求失败");
          reject(res);
        }
      });
  });
}

export default {
  data() {
    return {
      center: [113.94150905808976, 22.523881824251347],
      form: {
        startPosition: "",
        endPosition: "",
        startCoord: [],
        endCoord: [],
      },
      cityInfo: {},
      path: null,
      isPlay: false,
    };
  },
  mounted() {
    const that = this;
    function successFunc(position) {
      const { longitude, latitude } = position.coords;
      that.center = [longitude, latitude];
      that.initMap(true);
    }
    function errFunc() {
      that.initMap(false);
    }
    if (navigator.geolocation) {
      try {
        errFunc();
        navigator.geolocation.getCurrentPosition(successFunc, errFunc);
      } catch (e) {
        errFunc();
      }
    } else {
      errFunc();
    }
  },
  methods: {
    toggleAnimate() {
      if (!animation) return;

      if (this.isPlay) {
        animation.pause();

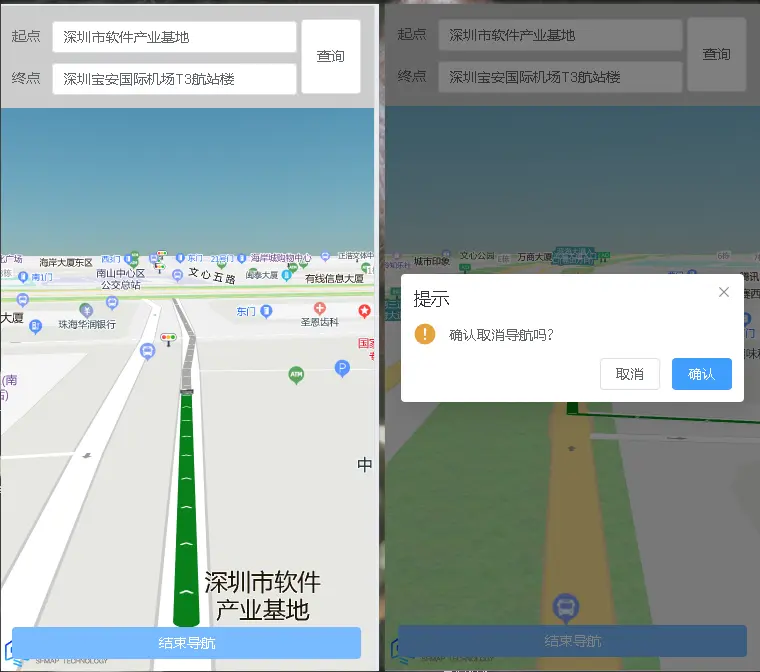

        ElMessageBox.confirm("确认取消导航吗?", "提示", {
          confirmButtonText: "确认",
          cancelButtonText: "取消",
          type: "warning",
        })
          .then(() => {
            animation.destory();
            animation = null;
            this.path = null;
            this.form = {
              startPosition: "",
              endPosition: "",
              startCoord: [],
              endCoord: [],
            };
            this.isPlay = false;
          })
          .catch(() => {
            animation.play();
            this.isPlay = true;
          });
      } else {
        animation.play();
        this.isPlay = true;
      }
    },
    initMap(isLocate) {
      map = new SFMap.Map({
        container: "map",
        center: this.center,
        zoom: 17.1,
      });
      map.on("load", (e) => {
        new SFMap.SkyLayer({
          map: map,
          type: "atmosphere",
          // 设置天空光源的强度
          atmosphereIntensity: 12,
          // 设置太阳散射到大气中的颜色
          atmosphereColor: "rgba(87, 141, 219, 0.8)",
          // 设置太阳光晕颜色
          atmosphereHaloColor: "rgba(202, 233, 250, 0.1)",
        });
        request("/geocode/regeo", {
          location: this.center.join(","),
        }).then((res) => {
          this.cityInfo = res.regeocode.addressComponent;
        });
      });
    },
    querySearchStart(str, cb) {
      if (str) {
        request("/assistant/inputtips", {
          keywords: str,
          city: this.cityInfo?.city,
        }).then((res) => {
          cb(
            res.tips.map((t) => {
              t.value = t.name;
              return t;
            })
          );
        });
      } else {
        cb([]);
      }
    },
    querySearchEnd(str, cb) {
      if (str) {
        request("/assistant/inputtips", {
          keywords: str,
          city: this.cityInfo?.city,
        }).then((res) => {
          cb(
            res.tips.map((t) => {
              t.value = t.name;
              return t;
            })
          );
        });
      } else {
        cb([]);
      }
    },
    handleSelectStart(item) {
      this.form.startCoord = item.location.split(",").map(Number);
    },
    handleSelectEnd(item) {
      this.form.endCoord = item.location.split(",").map(Number);
    },
    queryRoute() {
      const { startCoord, endCoord } = this.form;
      request("/direction/driving", {
        origin: startCoord.join(","),
        destination: endCoord.join(","),
        extensions: "all",
      }).then((res) => {
        const path = res.route.paths[0];
        let coordinates = [];
        this.path = path;
        path.steps.forEach((step) => {
          const polyline = step.polyline
            .split(";")
            .map((c) => c.split(",").map(Number));
          coordinates = [...coordinates, ...polyline];
        });
        const route = {
          type: "Feature",
          properties: { path },
          geometry: {
            type: "LineString",
            coordinates: coordinates,
          },
        };
        animation = new AnimationRoute(map, route, false);
      });
    },
  },
};
</script>

<style scoped lang="scss">
.container {
  width: 100%;
  height: 100vh;
  overflow: hidden;
}
.query {
  padding: 0.8rem;
  overflow: hidden;
  background: #ccc;
  .query-form {
    width: calc(100% - 4rem);
    float: left;
  }
  .query-button {
    width: 2rem;
    height: 4.7rem;
    float: right;
    display: flex;
    justify-content: flex-end;
    align-items: center;
    .query-button-inner {
      width: 3.8rem;
      height: 100%;
    }
  }
}
.map {
  height: calc(100% - 6.4rem);
}

.autocomplete-value,
.autocomplete-address {
  white-space: nowrap;
  width: 100%;
  overflow: hidden;
  text-overflow: ellipsis;
}
.autocomplete-address {
  font-size: 0.8rem;
  color: #999;
  margin-top: -0.8rem;
  border-bottom: 1px solid #efefef;
}
.map-button {
  position: absolute;
  bottom: 0;
  left: 0;
  width: 100%;
  z-index: 99;
  padding: 0.8rem;
  box-sizing: border-box;
  &-inner {
    width: 100%;
  }
}
:deep .el-form-item {
  margin-bottom: 0.5rem;
}
</style>

const icon = "/imgs/car.png";
const arrow = "/imgs/arrow.png";

import * as turf from "@turf/turf";

class AnimationRoute {
  constructor(map, route, play = true, fit = true, speed = 60) {
    this._map = map;
    this._json = route;
    this._play = play;
    this._speed = speed;
    this._path = route.properties.path;
    this.init();

    if (fit) this._map.fitBounds(turf.bbox(route), { padding: 50 });
  }

  init() {
    const that = this;

    // 创建 SpeechSynthesisUtterance 对象
    var utterance = new SpeechSynthesisUtterance();
    // 可选：设置语言（例如，中文）
    utterance.lang = "zh-CN";
    // 可选：设置语音
    utterance.voice = window.speechSynthesis.getVoices()[0];
    // 可选：设置音量（0.0到1.0之间）
    utterance.volume = 1.0;
    // 可选：设置语速（正常速度为1.0）
    utterance.rate = 1.0;
    // 可选：设置语调（正常语调为1.0）
    utterance.pitch = 1.0;
    that.utterance = utterance;

    that._index = 0;
    const length = turf.length(that._json);
    const scale = 60;
    that._count = Math.round((length / that._speed) * 60 * 60) * scale;
    that._step = length / that._count;
    that._stepPlay = -1;
    that._flag = 0;
    that._playId = "play-" + Date.now();
    // 添加路径图层
    that._map.addSource(that._playId, {
      type: "geojson",
      data: that._json,
    });
    that._map.addLayer({
      id: that._playId,
      type: "line",
      source: that._playId,
      layout: {
        "line-cap": "round",
        "line-join": "round",
      },
      paint: {
        "line-color": "#aaaaaa",
        "line-width": 10,
      },
    });
    // 添加已播放路径
    that._map.addSource(that._playId + "-played", {
      type: "geojson",
      data: that._json,
    });
    that._map.addLayer({
      id: that._playId + "-played",
      type: "line",
      source: that._playId + "-played",
      layout: {
        "line-cap": "round",
        "line-join": "round",
      },
      paint: {
        "line-color": "#09801a",
        "line-width": 10,
      },
    });

    // 添加路径上的箭头
    that._map.loadImage(arrow, function (error, image) {
      if (error) throw error;
      that._map.addImage(that._playId + "-arrow", image);
      that._map.addLayer({
        id: that._playId + "-arrow",
        source: that._playId,
        type: "symbol",
        layout: {
          "symbol-placement": "line",
          "symbol-spacing": 50,
          "icon-image": that._playId + "-arrow",
          "icon-size": 0.6,
          "icon-allow-overlap": true,
        },
      });
    });

    // 添加动态图标
    that._map.loadImage(icon, function (error, image) {
      if (error) throw error;
      that._map.addImage(that._playId + "-icon", image);
      that._map.addSource(that._playId + "-point", {
        type: "geojson",
        data: that._getDataByCoords(),
      });
      that._map.addLayer({
        id: that._playId + "-point",
        source: that._playId + "-point",
        type: "symbol",
        layout: {
          "icon-image": that._playId + "-icon",
          "icon-size": 0.75,
          "icon-allow-overlap": true,
          "icon-rotation-alignment": "map",
          "icon-pitch-alignment": "map",
          "icon-rotate": 50,
        },
      });
      that._animatePath();
    });
  }

  pause() {
    this._play = false;
    window.cancelAnimationFrame(this._flag);
  }

  start() {
    this._index = 0;
    this.play();
  }

  play() {
    this._play = true;
    this._animatePath();
  }

  _animatePath() {
    if (this._index > this._count) {
      window.cancelAnimationFrame(this._flag);
    } else {
      const coords = turf.along(this._json, this._step * this._index).geometry
        .coordinates;
      // 已播放的线
      const start = turf.along(this._json, 0).geometry.coordinates;
      this._map
        .getSource(this._playId + "-played")
        .setData(turf.lineSlice(start, coords, this._json));

      // 车的图标位置
      this._map
        .getSource(this._playId + "-point")
        .setData(this._getDataByCoords(coords));
      // 计算旋转角度
      const nextIndex =
        this._index === this._count ? this._count - 1 : this._index + 1;
      const coordsNext = turf.along(this._json, this._step * nextIndex).geometry
        .coordinates;
      let angle = turf.bearing(turf.point(coords), turf.point(coordsNext)) - 90;
      if (this._index === this._count) angle += 180;
      this._map.setLayoutProperty(
        this._playId + "-point",
        "icon-rotate",
        angle
      );
      const camera = this._map.getFreeCameraOptions();
      camera.position = mapboxgl.MercatorCoordinate.fromLngLat(coords, 100);
      camera.lookAtPoint(coordsNext);
      this._map.setFreeCameraOptions(camera);
      this._map.setPitch(80);
      this._index++;
      if (this._play) {
        this._playInstruction(coords);
        this._flag = requestAnimationFrame(() => {
          this._animatePath();
        });
      }
    }
  }

  _playInstruction(coords) {
    const { steps } = this._path;
    const stepPlay = this._stepPlay;
    const start = this._stepPlay !== -1 ? this._stepPlay : 0
    for (let i = start; i < steps.length; i++) {
      const step = steps[i];
      const polyline = step.polyline
        .split(";")
        .map((v) => v.split(",").map(Number));
      const pt = turf.point(coords);
      const line = turf.lineString(polyline);
      const dis = turf.pointToLineDistance(pt, line) * 1000;
      if (i > this._stepPlay && dis < 10) {
        this._stepPlay = i;
        break;
      }
    }
    if (stepPlay !== this._stepPlay) {
      this.utterance.text = steps[this._stepPlay].instruction;
      window.speechSynthesis.speak(this.utterance);
    }
  }

  _getDataByCoords(coords) {
    if (!coords || coords.length !== 2) return null;
    return turf.point(coords, {
      label: this._formatDistance(this._step * this._index),
    });
  }

  _formatDistance(dis) {
    if (dis < 1) {
      dis = dis * 1000;
      return dis.toFixed(0) + "米";
    } else {
      return dis.toFixed(2) + "千米";
    }
  }

  destory() {
    window.cancelAnimationFrame(this._flag);
    if (this._map.getSource(this._playId + "-point")) {
      this._map.removeLayer(this._playId + "-point");
      this._map.removeSource(this._playId + "-point");
    }
    if (this._map.getSource(this._playId + "-played")) {
      this._map.removeLayer(this._playId + "-played");
      this._map.removeSource(this._playId + "-played");
    }
    if (this._map.getSource(this._playId)) {
      this._map.removeLayer(this._playId);
      this._map.removeLayer(this._playId + "-arrow");
      this._map.removeSource(this._playId);
    }
  }
}

export default AnimationRoute;
