单细胞测序—PDA文章复现_单分组(Fig.1_Fig.2)

rm(list=ls())
options(stringsAsFactors = F)
source('scRNA_scripts/lib.R')

###### step1:导入数据 ######
library(ReactomePA)
library(ggplot2)
dir.create("./early-KIC")
setwd('./early-KIC/')
sce.data <- Read10X("../raw_data/GSM3577883_early_KIC/")

sce.all <- CreateSeuratObject(counts = sce.data,
                              project = 'early-KIC',
                              min.cells = 5,
                              min.features = 300)
as.data.frame(sce.all@assays$RNA$counts[1:10, 1:2])
head(sce.all@meta.data, 10)
table(sce.all@meta.data$orig.ident)


###### step2:QC质控 ######
dir.create("./1-QC")
setwd("./1-QC")
# 如果过滤的太狠，就需要去修改这个过滤代码
source('../../scRNA_scripts/qc.R')
sce.all.filt = basic_qc(sce.all)
print(dim(sce.all))
print(dim(sce.all.filt))
setwd('../')


sp='mouse'

###### step3: 无需harmony整合多个单细胞样品 ######
###### 可用如下简单方法 ######
f = "obj.Rdata"
if(!file.exists(f)){
  sce.all.filt = sce.all.filt %>%
    NormalizeData() %>%
    FindVariableFeatures() %>%
    ScaleData(features = rownames(.)) %>%
    RunPCA(features = VariableFeatures(.))  %>%
    FindNeighbors(dims = 1:15) %>%
    FindClusters(resolution = 0.6) %>%
    RunTSNE(dims = 1:15)
  save(sce.all.filt,file = f)
}

p1 <- DimPlot(sce.all.filt, reduction = "tsne",label = T)+NoLegend();p1

###### 或标准流程 ######
sce.all.int <- sce.all.filt

table(Idents(sce.all.int))
table(sce.all.int$seurat_clusters)
table(sce.all.int$RNA_snn_res.0.6)


dir.create('check-by-0.6')
setwd('check-by-0.6')
sel.clust = "RNA_snn_res.0.6"
sce.all.int <- SetIdent(sce.all.int, value = sel.clust)
table(sce.all.int@active.ident)
source('../../scRNA_scripts/check-all-markers.R')
{
  marker_paper <- c("Amy1", "Amy2a2", "Pyy", "Sst", "Ins1", "Ins2",
                    "Sox9", "Krt18", "Col1a1", "Col1a2", "Cd52", "Cd14",
                    "Cdh5", "Pecam1")
  paper_marker <- DotPlot(sce.all.int , features = marker_paper )  +
    coord_flip() +
    theme(axis.text.x=element_text(angle=45,hjust = 1))
  p_tsne=DimPlot(sce.all.int, reduction = "tsne",raster = F,
                 label = T,repel = T)

  paper_marker + p_tsne
  ggsave(paste('paper_marker_and_tsne.pdf'),width  = 12,height = 10)
  }
setwd('../')
getwd()


###### step5: 确定单细胞亚群生物学名字 ######
 VlnPlot(sce.all.int, features = marker_paper ,pt.size = 0,ncol = 1)
 ggsave("marker_paper_vio_0.6.pdf",width = 3.5,height = 20)


colnames(sce.all.int@meta.data)
table(sce.all.int$RNA_snn_res.0.6)

if(F){
  sce.all.int
  celltype=data.frame(ClusterID=0:13 ,
                      celltype= 0:13)
  #定义细胞亚群
  celltype[celltype$ClusterID %in% c( 8),2]='Endothelial cells'
  celltype[celltype$ClusterID %in% c( 1,5,7 ),2]='Macrophages'
  celltype[celltype$ClusterID %in% c( 13 ),2]='Fibroblasts-3'
  celltype[celltype$ClusterID %in% c( 0,2,9),2]='Fibroblasts-2'
  celltype[celltype$ClusterID %in% c( 6 ),2]='Fibroblasts-1'
  celltype[celltype$ClusterID %in% c( 3 ),2]='Cancer cells'
  celltype[celltype$ClusterID %in% c( 11),2]='Beta cells'
  celltype[celltype$ClusterID %in% c( 10,12),2]='Islet cells'
  celltype[celltype$ClusterID %in% c( 4),2]='Acinar cells'

  head(celltype)
  celltype
  table(celltype$celltype)
  sce.all.int@meta.data$celltype = "NA"

  for(i in 1:nrow(celltype)){
    sce.all.int@meta.data[which(sce.all.int@meta.data$RNA_snn_res.0.6 == celltype$ClusterID[i]),'celltype'] <- celltype$celltype[i]}
  Idents(sce.all.int)=sce.all.int$celltype


}

DimPlot(sce.all.int, reduction = "tsne",raster = F,group.by = 'RNA_snn_res.0.6',
        label = T,repel = T) +
  DimPlot(sce.all.int, reduction = "tsne",raster = F,group.by = 'celltype',
          label = T,repel = T)
ggsave(paste('paper_anno_and_tsne.pdf'),width  = 12,height = 10)

DimPlot(sce.all.int, reduction = "tsne",raster = F,group.by = 'celltype',
        label = T,repel = T)
ggsave(paste('tsne.pdf'),width  = 8,height = 6)
#marker可视化
VlnPlot(sce.all.int, features = marker_paper ,pt.size = 0,ncol = 1)
ggsave("marker_paper_vio_celltype.pdf",width = 3.5,height = 35)

#计算比例
df=data.frame(clu=names(table(sce.all.int$seurat_clusters)),
                per=sprintf("%1.2f%%",100*table(sce.all.int$seurat_clusters)/length(sce.all.int$seurat_clusters)))
sce.all.int$per=df[match(sce.all.int$seurat_clusters,df$clu),2]
sce.all.int$new=paste0(sce.all.int$celltype,"(",sce.all.int$per,")")
table(sce.all.int$new)

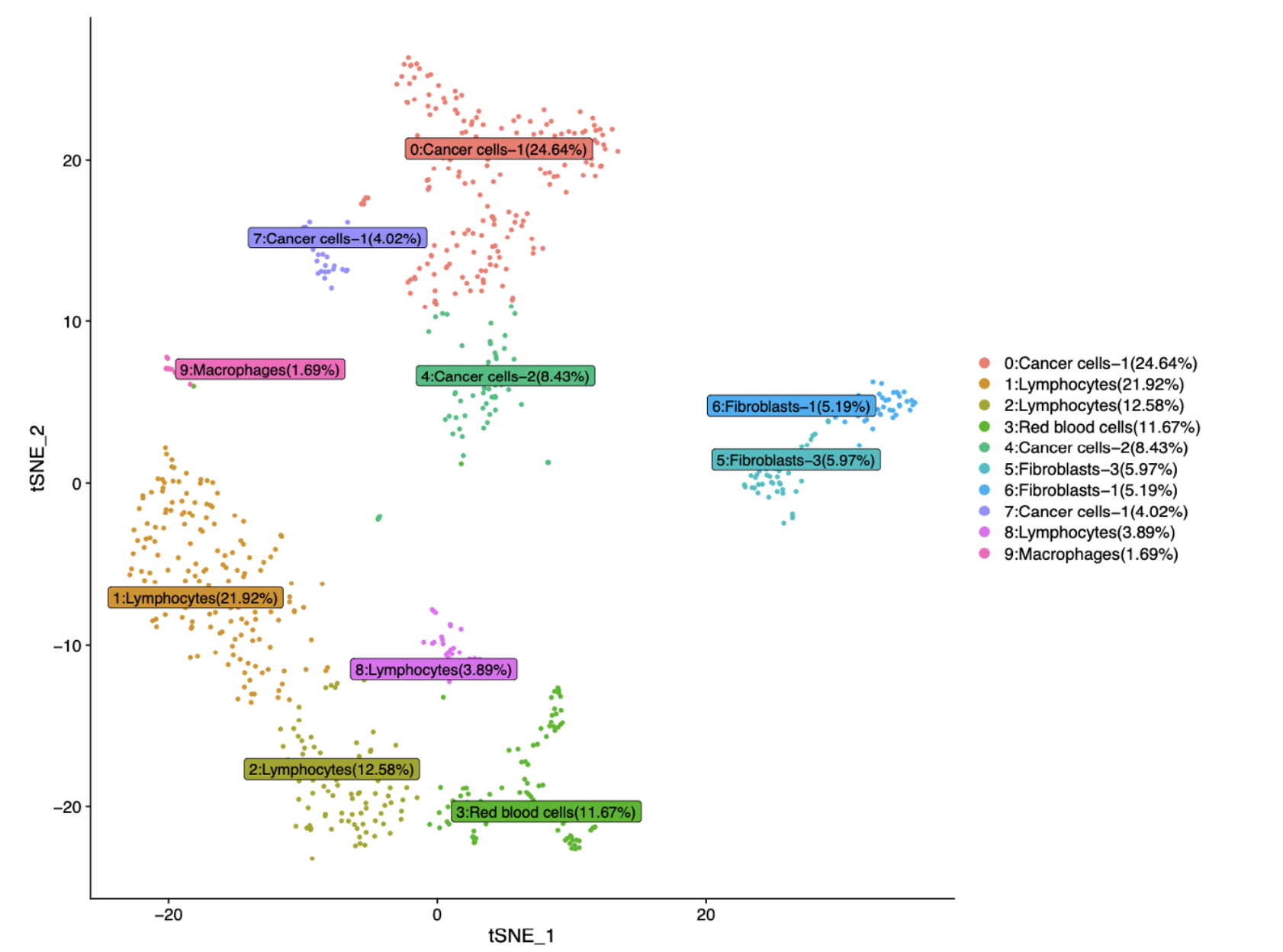

DimPlot(sce.all.int,reduction='tsne',
        group.by='new',
        label.box=T,label=T,repel=T)
ggsave(paste('paper_anno_percentage.pdf'),width  = 12,height = 10)

#可视化优化
PropPlot <- function(object, groupBy){
  # (1)获取绘图数据
  plot_data = object@meta.data %>%
    dplyr::select(orig.ident, {{groupBy}}) %>%
    dplyr::rename(group = as.name(groupBy))

  # (2)绘图
  figure = ggbarstats(data = plot_data,
                      x = group, y = orig.ident,
                      package = 'ggsci',
                      palette = 'category20c_d3',
                      results.subtitle = FALSE,
                      bf.message = FALSE,
                      proportion.test = FALSE,
                      label.args = list(size = 2,
                                        fill = 'white',
                                        alpha = 0.85,
                                        family = 'sans',
                                        fontface = 'bold'),
                      perc.k = 2,
                      title = '',
                      xlab = '',
                      legend.title = 'Seurat Cluster',
                      ggtheme = ggpubr::theme_pubclean()) +
    theme(axis.ticks.x = element_blank(),
          axis.ticks.y = element_line(color = 'black', lineend = 'round'),
          legend.position = 'right',
          axis.text.x = element_text(size = 15, color = 'black', family = 'Arial'),
          axis.text.y = element_text(size = 15, color = 'black', family = 'Arial'),
          legend.text = element_text(family = 'Arial', size = 10, color = 'black'),
          legend.title = element_text(family = 'Arial', size = 13, color = 'black'))

  # (3)去除柱子下面的样本量标识：
  gginnards::delete_layers(x = figure, match_type = 'GeomText')
}
library(ggstatsplot)
library(gginnards)
# pdf('percentage.pdf',width = 5,height = 8)
# PropPlot(object  =  sce.all.int,  groupBy  =  'celltype')
# dev.off()
CairoPDF("percentage.pdf", width = 5, height = 8)
PropPlot(object = sce.all.int, groupBy = 'celltype')
dev.off()

# 如果前面成功的给各个细胞亚群命名了
# 就可以运行下面的代码
sce.all.int$celltype = as.character(sce.all.int$celltype)
if("celltype" %in% colnames(sce.all.int@meta.data ) ){

  sel.clust = "celltype"
  sce.all.int <- SetIdent(sce.all.int, value = sel.clust)
  table(sce.all.int@active.ident)

  dir.create('check-by-celltype')
  setwd('check-by-celltype')
  source('../../scRNA_scripts/check-all-markers.R')
  setwd('../')
  getwd()
  phe=sce.all.int@meta.data
  save(phe,file = 'phe.Rdata')
  pdf('celltype-vs-orig.ident.pdf',width = 10)
  gplots::balloonplot(table(sce.all.int$orig.ident,
                            sce.all.int$celltype))
  dev.off()
}

######  FeaturePlot 基因可视化 ######
FeaturePlot(sce.all.int, features = c("Cdh1", "Epcam", "Gjb1",
                               "Cdh2", "Cd44", "Axl"),ncol = 3)
ggsave("FeaturePlot.pdf",width = 9,height = 4.5)

save(sce.all.int,file = "early-KIC.Rdata")
