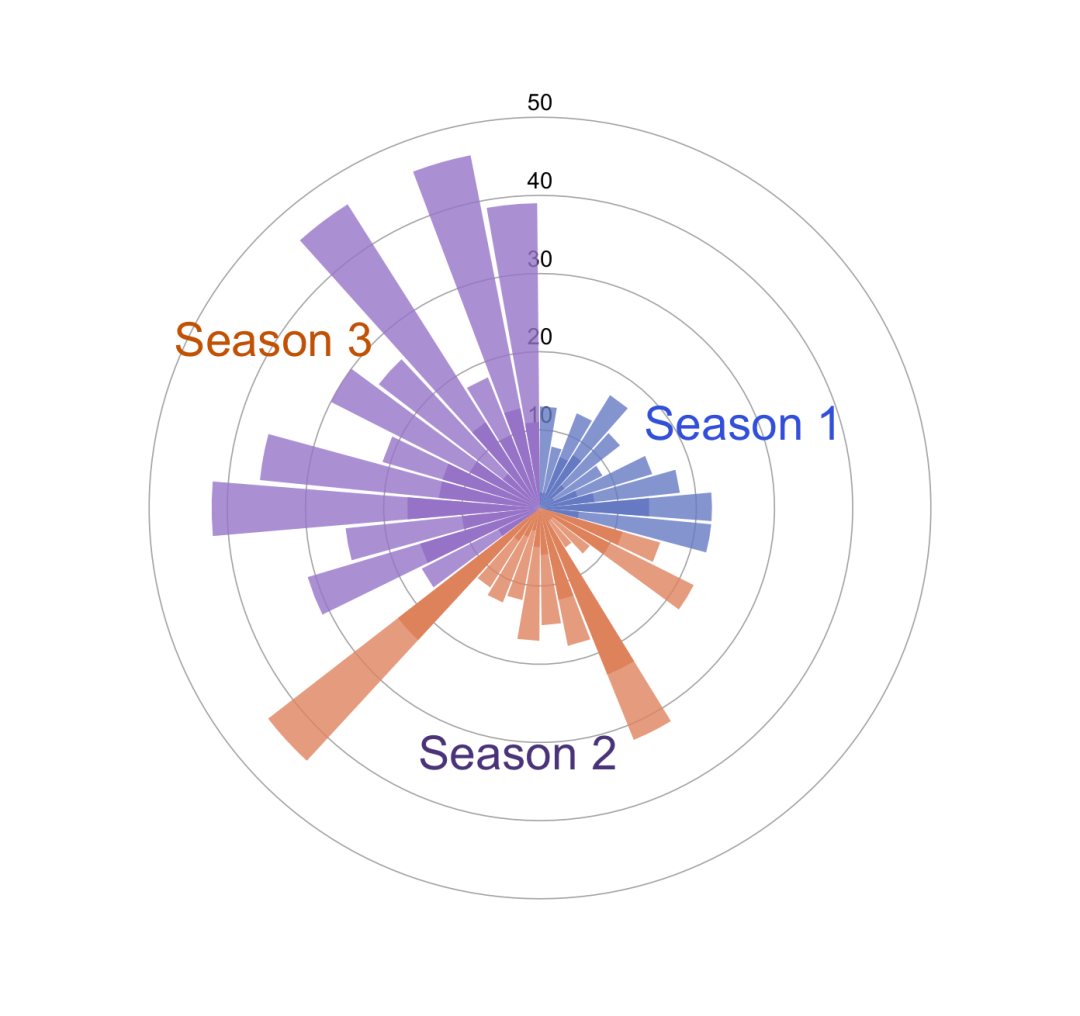

R中轻松绘制南丁格尔图

R语言数据分析指南

发布于 2023-09-29 10:10:35

69400

代码可运行

文章被收录于专栏：R语言数据分析指南R语言数据分析指南

运行总次数：0

代码可运行

加载R包

library(tidyverse)
library(ggtext)

导入数据

df <- readr::read_csv('data.csv')

构建标签数据
labs <- data.frame(Episode_order = c(7, 18, 29), y = c(28, 32, 40),
                   lab = c("<span style = 'color: #4169E1;'>Season 1</span>",
                           "<span style = 'color: #5D478B;'>Season 2</span>",
                           "<span style = 'color: darkorange3;'>Season 3</span>"))

数据可视化

ggplot(df, aes(x = Episode_order)) +
    # 为y轴的值添加文本注释
    annotate('text', x = 34.5, y = c(12, 22, 32, 42, 52),
             label = c('10', '20', '30', '40', '50'), color = "black") +
    # 在y轴上以10为间隔添加水平线
    geom_hline(yintercept = seq(0, 50, by = 10), colour = "grey70", linewidth = 0.3) +
    # 添加柱状图，表示总数
    geom_col(aes(y = F_count_total, fill = as.factor(Season)), alpha = 0.8, show.legend = FALSE) +
    # 添加柱状图，表示RK的计数
    geom_col(aes(y = F_count_RK, fill = as.factor(Season)), show.legend = FALSE) +
    # 添加富文本，用于显示季节标签
    geom_richtext(data = labs, aes(x = Episode_order, y = y, label = lab), fill = NA,
                  label.color = NA, size = 8) +
    # 手动设置填充颜色
    scale_fill_manual(values = c("#788FCE","#E6956F","#A88AD2")) +
    # 设置y轴的范围和间隔
    scale_y_continuous(limits = c(0, 52), breaks = seq(0, 50, 10)) +
    coord_polar() +     # 使用极坐标
    theme_void() +     # 使用空白主题
    # 设置主题，移除面板网格和背景
    theme(panel.grid = element_blank(),
          panel.background = element_rect(fill = NA, color = NA),
          plot.background = element_rect(fill = NA, color = NA))
