R基础绘图篇 | 旭日图与冰柱图的绘制

DataCharm

发布于 2023-08-23 10:46:53

2.4K0

写在前面

旭日图（sunbrust diagram），通常也被称为多层饼图（multi-level pie chart）或径向树图，通常会用来展示层级占比关系，通过一系列的圆环展示层次结构。冰柱图（icicle diagram）也叫分区层图（partition layer chart），也就是直角坐标系下的旭日图，他们都是展示层级占比关系的王者。

开始绘图

需要调用的R包有以下4个

library(ggraph)
library(igraph)
library(RColorBrewer)
library(dplyr)

读取数据

#df<-read.csv('旭日图.csv',header=TRUE,stringsAsFactors=FALSE)
df<-read.csv(file.choose( ),header=TRUE,stringsAsFactors=FALSE)

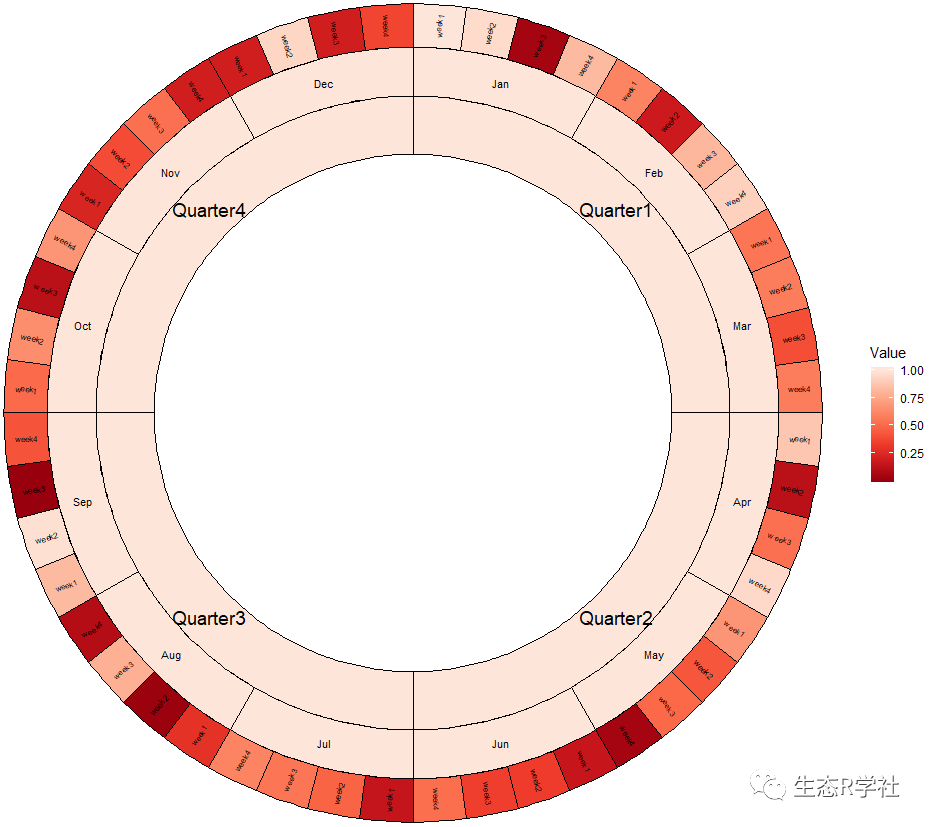

旭日图

分割角度均等平分

edges<- data.frame(rbind(
cbind(rep('origin',4),unique(as.character(df$Season))),
as.matrix(df[!duplicated(df[c('Season','Month')]),1:2]),
as.matrix(df[!duplicated(df[c('Month','Week')]),2:3])))
colnames(edges)<-c('from','to')
vertices0<-data.frame(name=unique(c(as.character(edges$from), as.character(edges$to))))
df_leaf<-df[,c('Week','Value','label')]
df_leaf$angle<-90-(1:nrow(df_leaf))/nrow(df_leaf)*360
df_leaf$angle<-ifelse(df_leaf$angle< -90, df_leaf$angle+180, df_leaf$angle)
vertices<-left_join(vertices0,df_leaf,by=c('name'='Week'))
graph <- graph_from_data_frame(edges, vertices = vertices)
# 分割角度均等平分
ggraph(graph, layout ='partition', circular = TRUE) +
geom_node_arc_bar(aes(filter =(depth<=2 & depth>0 )),fill='#FEE5D9',color='black',size=0.1)+#,size=size
geom_node_arc_bar(aes(filter =(depth==3 ),fill = Value),size=0.1)+
geom_node_text( aes(filter =(depth<=2 & depth>0 ),label=name,size=-depth),angle=0,colour="black") +
geom_node_text(aes(label=label,angle=angle),size=2,colour="black") +
scale_size(range=c(3,5))+
coord_fixed()+
scale_fill_distiller(palette='Reds')+
guides(size="none")+
theme_void()

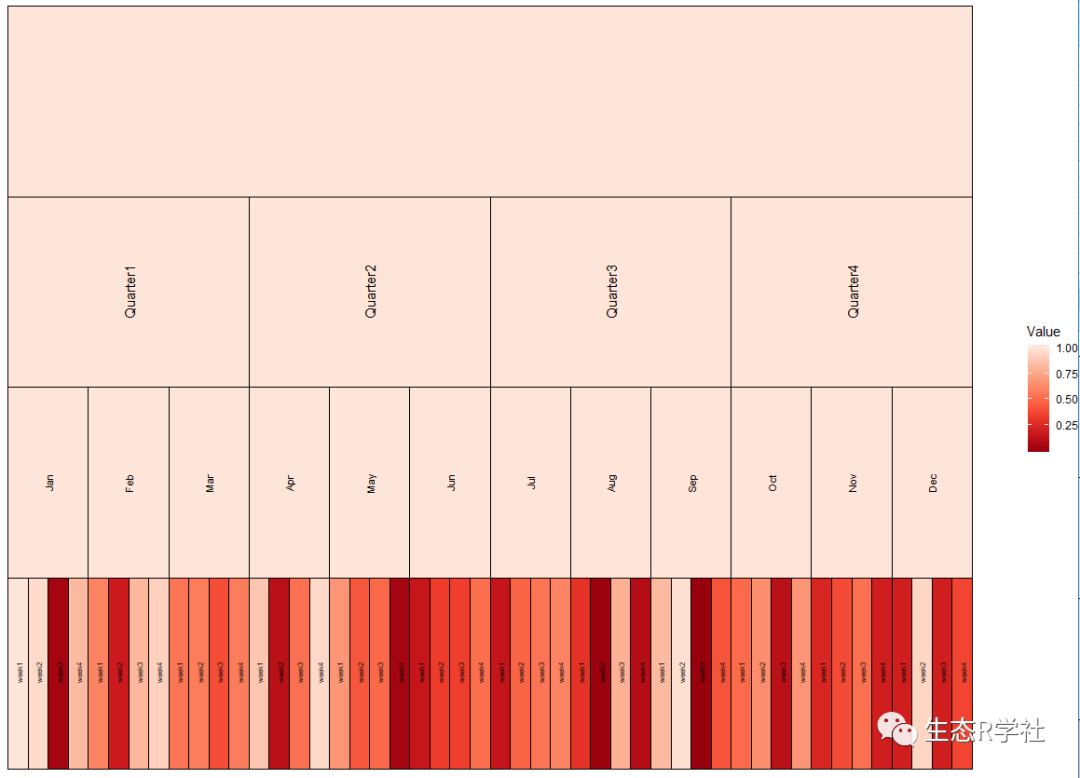

冰柱图

分割角度均等平分

ggraph(graph, layout ='partition') +
geom_node_tile(aes(filter =(depth<=2)),fill='#FEE5D9',color='black',size=0.1)+#,size=size
geom_node_tile(aes(filter =(depth==3 ),fill = Value),size=0.1)+
geom_node_text(aes(filter =(depth<=2 & depth>0),label=name,size=-depth),angle=90,colour="black") +
geom_node_text(aes(label=label),size=2,angle=90,colour="black")+
scale_size(range=c(3,4))+
scale_y_reverse()+
scale_fill_distiller(palette="Reds",na.value = "#FFF2EC")+
guides(size="none")+
theme_void()

旭日图

分割角度与某个数值成比例

fake_circle<-c()
for (i in 1:nrow(df)){
fake_circle<-append(fake_circle,rep(df$Week[i],round(10*df$Value[i])))
}
edges<- data.frame(rbind(
cbind(rep('origin',4),unique(as.character(df$Season))),
as.matrix(df[!duplicated(df[c('Season','Month')]),1:2]),
as.matrix(df[!duplicated(df[c('Month','Week')]),2:3]),
cbind(fake_circle,as.character(1:length(fake_circle)))
))
colnames(edges)<-c('from','to')
vertices0<-data.frame(name=unique(c(as.character(edges$from), as.character(edges$to))))
df_leaf<-df[,c('Week','Value','label')]
df_leaf$angle<-90-(cumsum(df_leaf$Value)-df_leaf$Value/2)/sum(df_leaf$Value)*360
df_leaf$angle<-ifelse(df_leaf$angle< -90, df_leaf$angle+180, df_leaf$angle)
vertices<-left_join(vertices0,df_leaf,by=c('name'='Week'))
df_color<- data.frame(rbind(
as.matrix(df[!duplicated(df[c('Season','Season')]),c(1,1)]),
as.matrix(df[!duplicated(df[c('Season','Month')]),c(1,2)]),
as.matrix(df[!duplicated(df[c('Season','Week')]),c(1,3)])
))
colnames(df_color)<-c('Season','name')
vertices<-left_join(vertices,df_color,by='name')
graph <- graph_from_data_frame(edges, vertices = vertices)
#旭日图 分割角度与某个数值成比例
ggraph(graph, layout ='partition', circular = TRUE) +
geom_node_arc_bar(aes(filter =(depth<=3 & depth>0 ),fill = Season),size=0.1)+
geom_node_text(aes(filter =(depth<=2 & depth>0),label=name,size=-depth),angle=0,colour="black") +
geom_node_text(aes(label=label,angle=angle),size=2,colour="black")+
scale_size(range=c(3,4))+
coord_fixed()+
scale_fill_brewer(palette="Reds",direction=-1)+
guides(size="none",fill="none")+
theme_void()

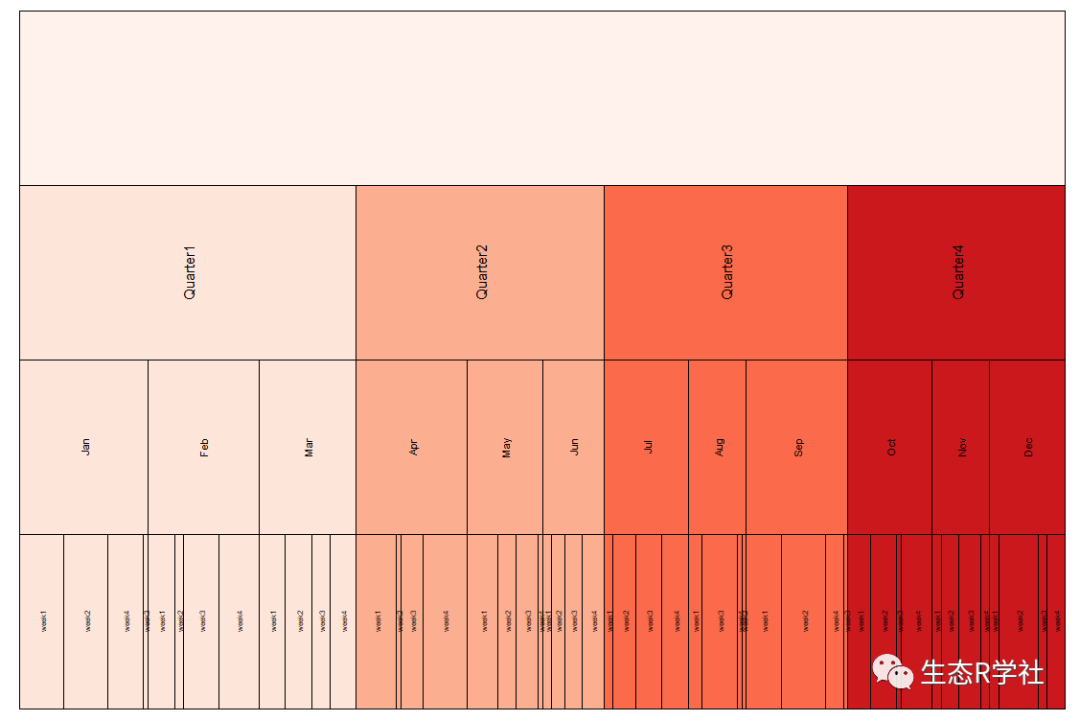

冰柱图

分割角度与某个数值成比例

#冰柱图 分割角度与某个数值成比例
ggraph(graph, layout ='partition')+
geom_node_tile(aes(filter =(depth<=3 ),fill = Season),size = 0.1)+
geom_node_text(aes(filter =(depth<=2 & depth>0),label=name,size=-depth),angle=90,colour="black") +
geom_node_text(aes(label=label),size=2,angle=90,colour="black")+
scale_size(range=c(3,4))+
scale_y_reverse()+
scale_fill_brewer(palette="Reds",na.value = "#FFF2EC")+
guides(size="none",fill="none")+
theme_void()
