单细胞ATAC实战04: 联合scRNA-seq数据给细胞注释

from pathlib import Path
import warnings

import numpy as np
import pandas as pd
import scanpy as sc
import snapatac2 as snap
import scvi

import bioquest as bq
import sckit as sk

gff_file="~/DataHub/Genomics/GENCODE/hg38.v43.chr_patch_hapl_scaff.basic.annotation.gff3.gz"

adata = snap.read_dataset("PBMC.h5ads")

query = snap.pp.make_gene_matrix(adata, gff_file=gff_file)
query.obs_names = adata.obs_names

reference = sc.read("10x-Multiome-Pbmc10k-RNA.h5ad")

data = reference.concatenate(query, batch_categories=["reference", "query"])

data.layers["counts"] = data.X.copy()
#过滤
sc.pp.filter_genes(data, min_cells=5)
#文库大小
sc.pp.normalize_total(data, target_sum=1e4)
#log转化
sc.pp.log1p(data)
# 前5000高变基因
sc.pp.highly_variable_genes(
    data,
    n_top_genes = 5000,
    flavor="seurat_v3",
    layer="counts",
    batch_key="batch",
    subset=True
)

scvi.model.SCVI.setup_anndata(data, layer="counts", batch_key="batch")
vae = scvi.model.SCVI(
    data,
    n_layers=2,
    n_latent=30,
    gene_likelihood="nb",
    dispersion="gene-batch",
)

vae.train(max_epochs=1000, early_stopping=True,use_gpu=True)

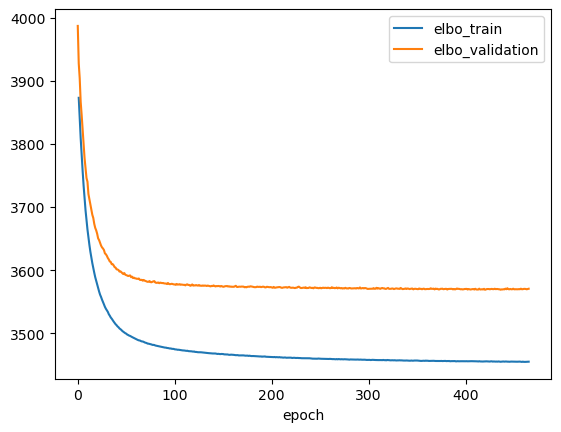

ax = vae.history['elbo_train'][1:].plot()
vae.history['elbo_validation'].plot(ax=ax)

data.obs["celltype_scanvi"] = 'Unknown'
ref_idx = data.obs['batch'] == "reference"
data.obs["celltype_scanvi"][ref_idx] = data.obs['cell_type'][ref_idx]

lvae = scvi.model.SCANVI.from_scvi_model(
    vae,
    adata=data,
    labels_key="celltype_scanvi",
    unlabeled_category="Unknown",
)

lvae.train(max_epochs=1000, n_samples_per_label=100,use_gpu=True)

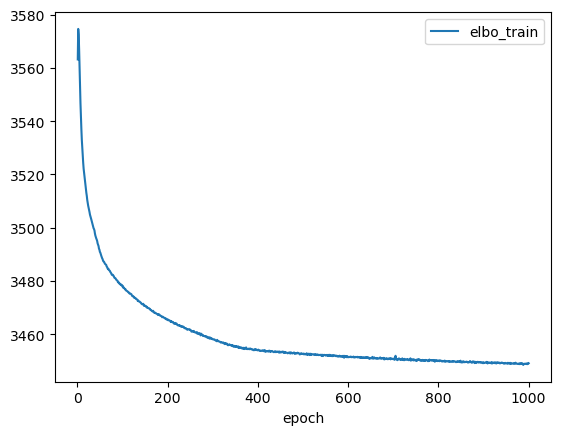

lvae.history['elbo_train'][1:].plot()

data.obs["C_scANVI"] = lvae.predict(data)
data.obsm["X_scANVI"] = lvae.get_latent_representation(data)

sc.pp.neighbors(data, use_rep="X_scANVI")
sc.tl.umap(data)

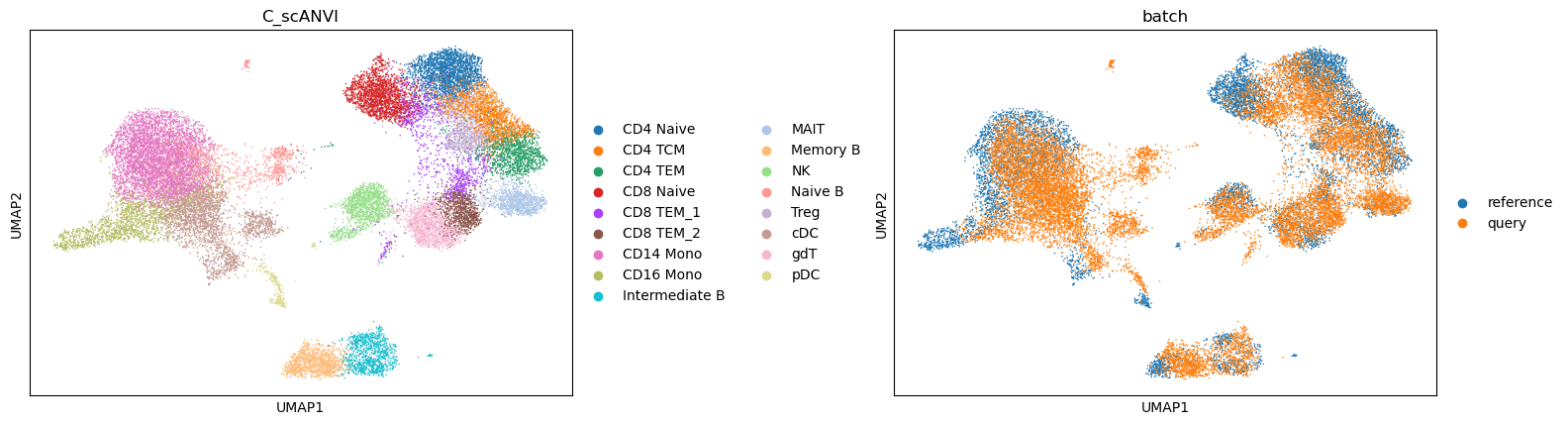

sc.pl.umap(data, color=['C_scANVI', "batch"], wspace=0.45)

obs = data.obs
obs = obs[obs['batch'] == 'query']
obs.index = list(map(lambda x: x.split("-query")[0], obs.index))

atac=adata.to_adata()
adata.close()
atac.obs['cell_type'] = obs.loc[atac.obs.index]['C_scANVI']

from collections import Counter

cell_type_labels = np.unique(atac.obs['cell_type'])

count_table = {}
for cl, ct in zip(atac.obs['leiden'], atac.obs['cell_type']):
    if cl in count_table:
        count_table[cl].append(ct)
    else:
        count_table[cl] = [ct]

mat = []
for cl, counts in count_table.items():
    c = Counter(counts)
    c = np.array([c[ct] for ct in cell_type_labels])
    c = c / c.sum()
    mat.append(c)

import seaborn as sn
import pandas as pd
import matplotlib.pyplot as plt

df_cm = pd.DataFrame(
    mat,
    index = count_table.keys(),
    columns = cell_type_labels,
)

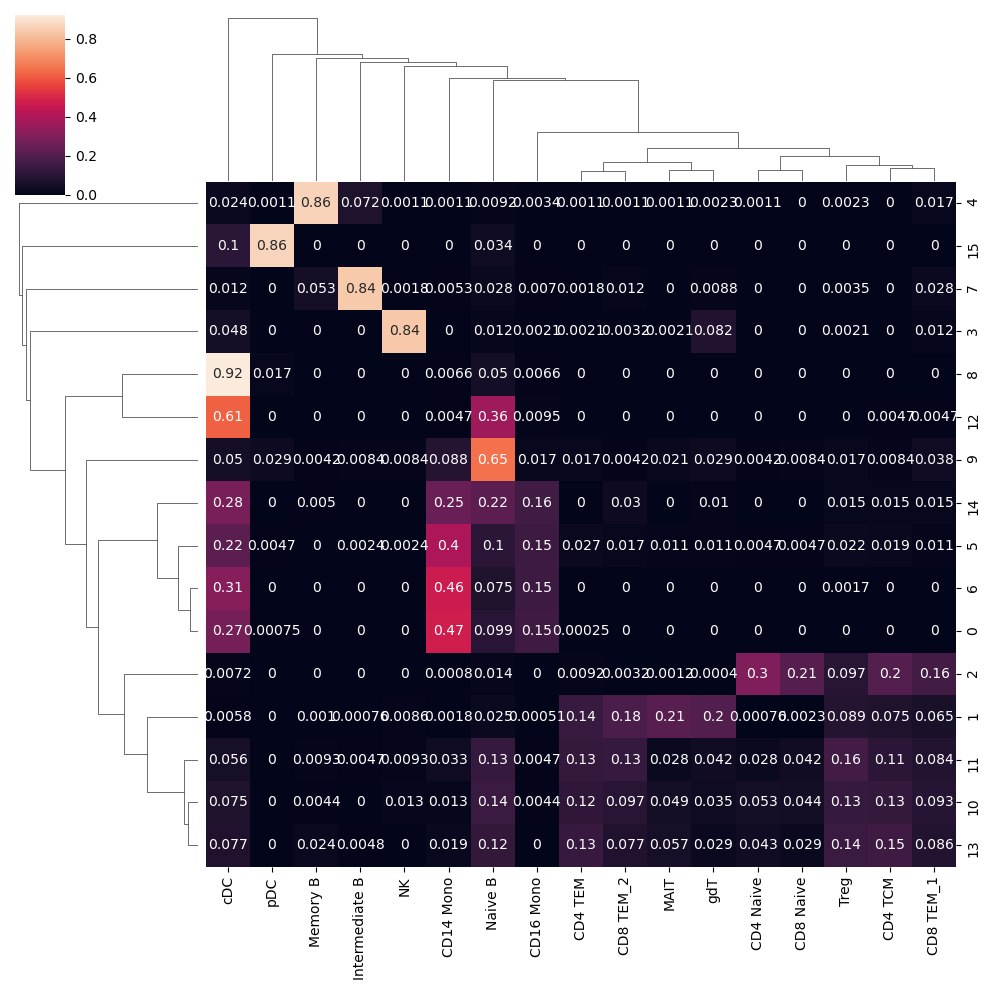

sn.clustermap(df_cm, annot=True)

sk.label_helper(len(atac.obs.leiden.unique())-1)
new_cluster_names ='''
0,CD14 Mono
1,MAIT
2,CD4 Naive
3,NK
4,Memory B
5,CD14 Mono
6,CD14 Mono
7,Intermediate B
8,cDC
9,Naive B
10,Naive B
11,Treg
12,cDC
13,Treg
14,CD14 Mono
15,pDC
'''
sk.labeled(atac,cluster_names=new_cluster_names,reference_key='leiden')

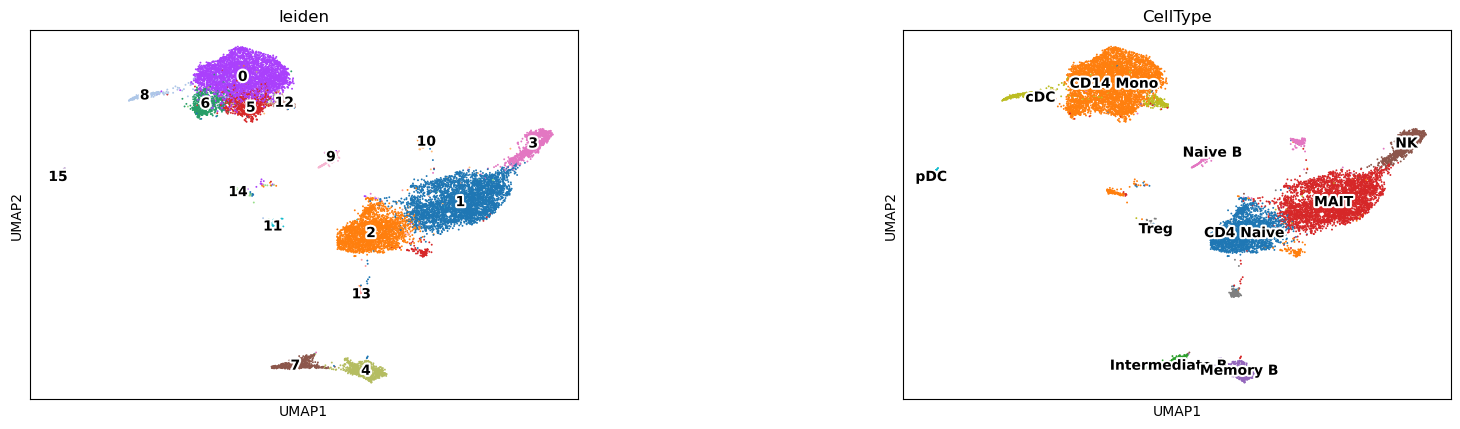

sc.pl.umap(atac, color=['leiden', "CellType"], wspace=0.45,legend_loc="on data",legend_fontoutline=3)

atac.write_h5ad("atac_annot.h5ad",compression='lzf')
adata.close()
