蓝桥ROS云课→一键配置←f1tenth和PID绕圈

echo "Upgrade Mission Begins."

echo "-----BEGIN PGP PUBLIC KEY BLOCK-----
Version: GnuPG v1

mQINBFzvJpYBEADY8l1YvO7iYW5gUESyzsTGnMvVUmlV3XarBaJz9bGRmgPXh7jc
VFrQhE0L/HV7LOfoLI9H2GWYyHBqN5ERBlcA8XxG3ZvX7t9nAZPQT2Xxe3GT3tro
u5oCR+SyHN9xPnUwDuqUSvJ2eqMYb9B/Hph3OmtjG30jSNq9kOF5bBTk1hOTGPH4
K/AY0jzT6OpHfXU6ytlFsI47ZKsnTUhipGsKucQ1CXlyirndZ3V3k70YaooZ55rG
aIoAWlx2H0J7sAHmqS29N9jV9mo135d+d+TdLBXI0PXtiHzE9IPaX+ctdSUrPnp+
TwR99lxglpIG6hLuvOMAaxiqFBB/Jf3XJ8OBakfS6nHrWH2WqQxRbiITl0irkQoz
pwNEF2Bv0+Jvs1UFEdVGz5a8xexQHst/RmKrtHLct3iOCvBNqoAQRbvWvBhPjO/p
V5cYeUljZ5wpHyFkaEViClaVWqa6PIsyLqmyjsruPCWlURLsQoQxABcL8bwxX7UT
hM6CtH6tGlYZ85RIzRifIm2oudzV5l+8oRgFr9yVcwyOFT6JCioqkwldW52P1pk/
/SnuexC6LYqqDuHUs5NnokzzpfS6QaWfTY5P5tz4KHJfsjDIktly3mKVfY0fSPVV
okdGpcUzvz2hq1fqjxB6MlB/1vtk0bImfcsoxBmF7H+4E9ZN1sX/tSb0KQARAQAB
tCZPcGVuIFJvYm90aWNzIDxpbmZvQG9zcmZvdW5kYXRpb24ub3JnPokCVAQTAQgA
PgIbAwULCQgHAgYVCgkICwIEFgIDAQIeAQIXgBYhBMHPbjHmut6IaLFytPQu1vur
F8ZUBQJgsdhRBQkLTMW7AAoJEPQu1vurF8ZUTMwP/3f7EkOPIFjUdRmpNJ2db4iB
RQu5b2SJRG+KIdbvQBzKUBMV6/RUhEDPjhXZI3zDevzBewvAMKkqs2Q1cWo9WV7Z
PyTkvSyey/Tjn+PozcdvzkvrEjDMftIk8E1WzLGq7vnPLZ1q/b6Vq4H373Z+EDWa
DaDwW72CbCBLWAVtqff80CwlI2x8fYHKr3VBUnwcXNHR4+nRABfAWnaU4k+oTshC
Qucsd8vitNfsSXrKuKyz91IRHRPnJjx8UvGU4tRGfrHkw1505EZvgP02vXeRyWBR
fKiL1vGy4tCSRDdZO3ms2J2m08VPv65HsHaWYMnO+rNJmMZj9d9JdL/9GRf5F6U0
quoIFL39BhUEvBynuqlrqistnyOhw8W/IQy/ymNzBMcMz6rcMjMwhkgm/LNXoSD1
1OrJu4ktQwRhwvGVarnB8ihwjsTxZFylaLmFSfaA+OAlOqCLS1OkIVMzjW+Ul6A6
qjiCEUOsnlf4CGlhzNMZOx3low6ixzEqKOcfECpeIj80a2fBDmWkcAAjlHu6VBhA
TUDG9e2xKLzV2Z/DLYsb3+n9QW7KO0yZKfiuUo6AYboAioQKn5jh3iRvjGh2Ujpo
22G+oae3PcCc7G+z12j6xIY709FQuA49dA2YpzMda0/OX4LP56STEveDRrO+CnV6
WE+F5FaIKwb72PL4rLi4
=i0tj
-----END PGP PUBLIC KEY BLOCK-----" >> ~/ros.asc

sudo apt-key add ros.asc

sudo sh -c '. /etc/lsb-release && echo "deb http://mirrors.tuna.tsinghua.edu.cn/ros/ubuntu/ `lsb_release -cs` main" > /etc/apt/sources.list.d/ros-latest.list'

git clone https://gitcode.net/ZhangRelay/f1tenth.git

mkdir -p ~/f1tenth/src

cd ~/f1tenth/src

unzip ~/f1tenth/f1tenth_simulator.zip

sudo rm /etc/apt/sources.list.d/ros2-latest.list

sudo apt update

sudo apt install ros-kinetic-tf2-geometry-msgs ros-kinetic-ackermann-msgs ros-kinetic-joy ros-kinetic-map-server ros-kinetic-message-runtime -y

sudo apt upgrade -y

cd ~/f1tenth

catkin_make

source ~/f1tenth/devel/setup.zsh

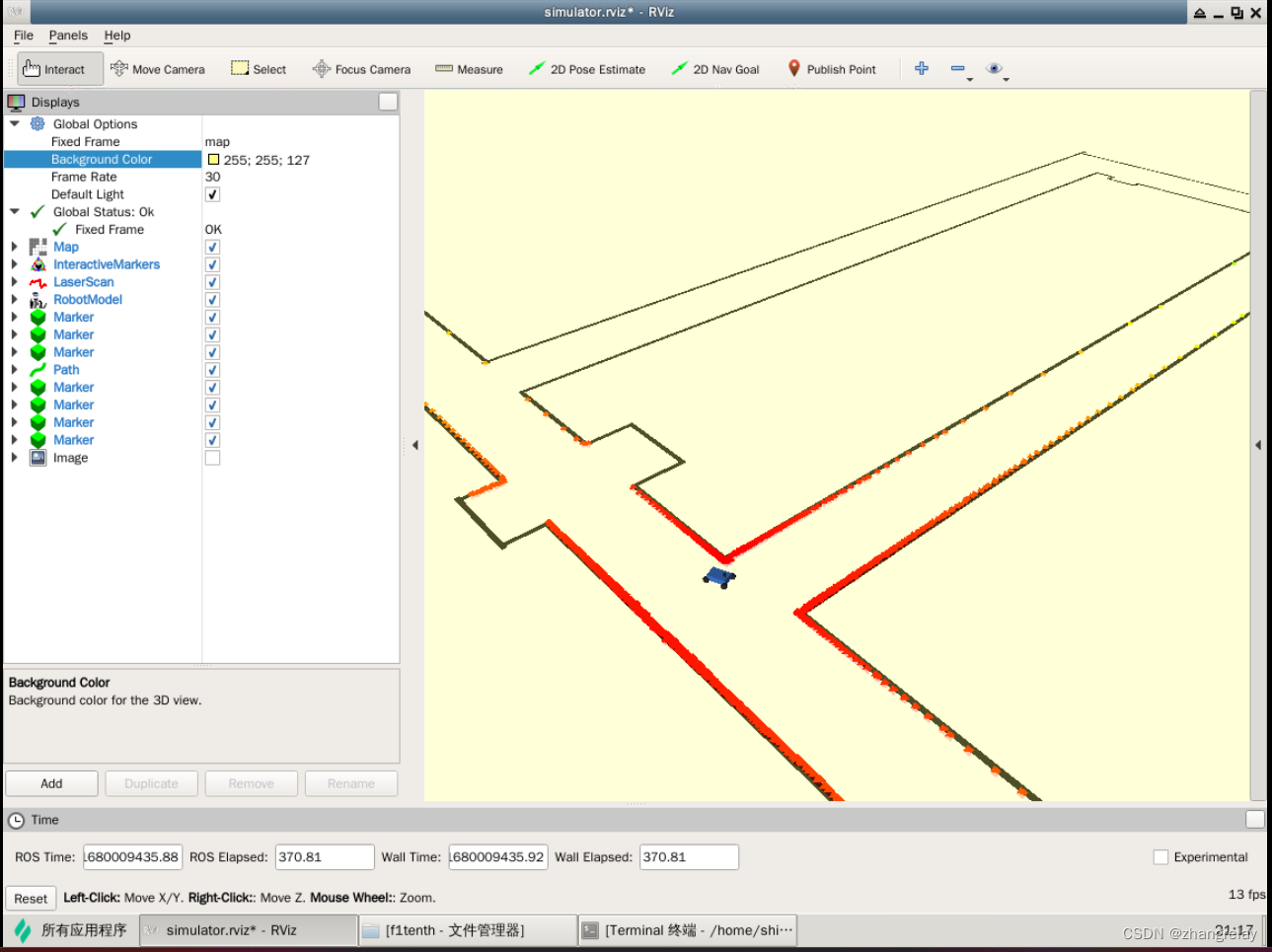

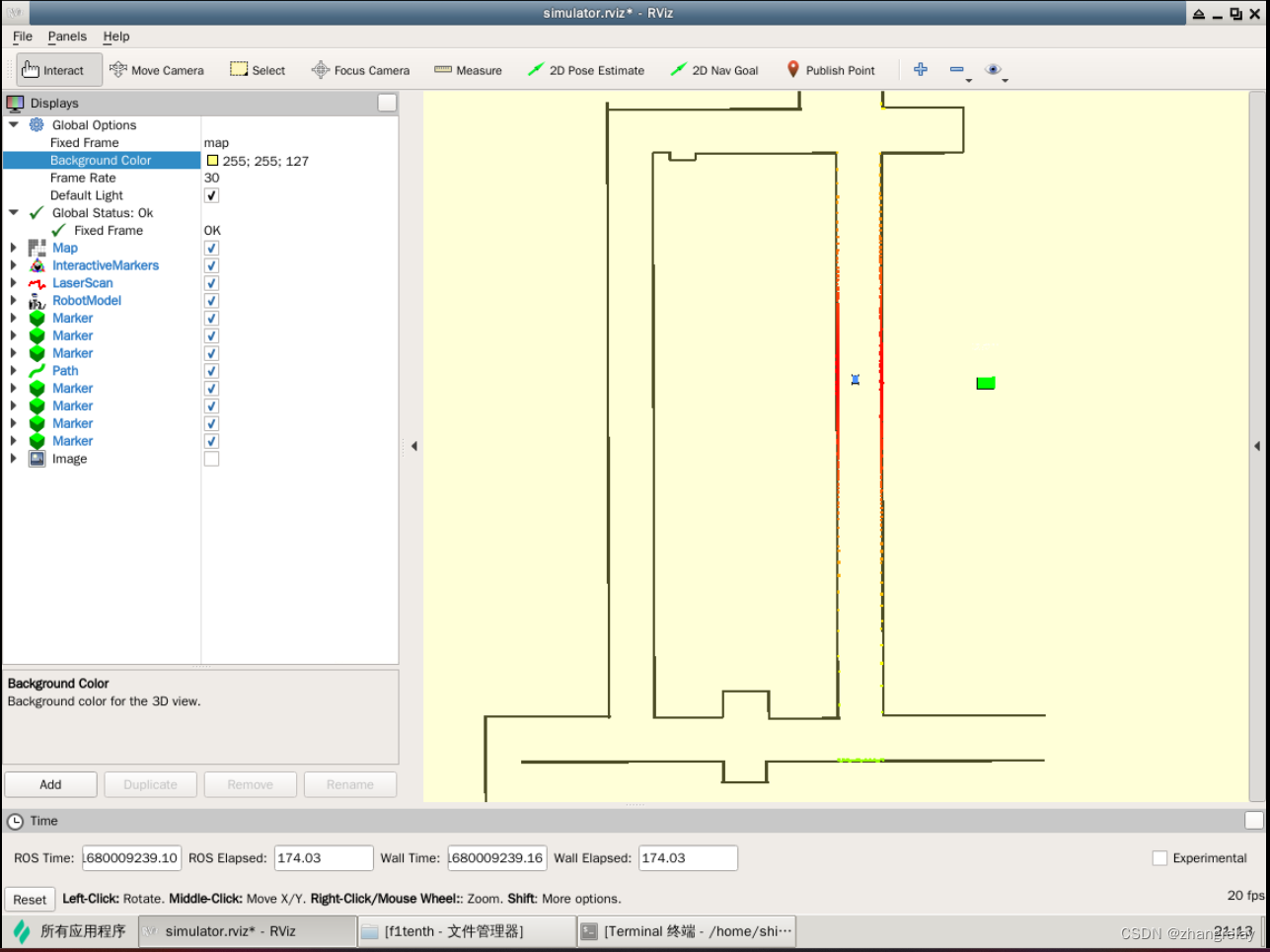

roslaunch f1tenth_simulator simulator.launch

echo "Upgrade Mission Completed."

#!/usr/bin/env python
from __future__ import print_function
import sys
import math
import numpy as np

#ROS Imports
import rospy
from sensor_msgs.msg import Image, LaserScan
from ackermann_msgs.msg import AckermannDriveStamped, AckermannDrive

#PID CONTROL PARAMS
kp = 1.0
kd = 0.001
ki = 0.005
servo_offset = 0.0
prev_error = 0.0
error = 0.0
integral = 0.0
prev_time = 0.0

#WALL FOLLOW PARAMS
ANGLE_RANGE = 270 # Hokuyo 10LX has 270 degrees scan
DESIRED_DISTANCE_RIGHT = 0.9 # meters
DESIRED_DISTANCE_LEFT = 0.85
VELOCITY = 1.5 # meters per second
CAR_LENGTH = 1.0 # Traxxas Rally is 20 inches or 0.5 meters

class WallFollow:
    """ Implement Wall Following on the car
    """
    def __init__(self):
        global prev_time
        #Topics & Subs, Pubs
        lidarscan_topic = '/scan'
        drive_topic = '/nav'
        prev_time = rospy.get_time()

        self.lidar_sub = rospy.Subscriber(lidarscan_topic, LaserScan, self.lidar_callback)
        self.drive_pub = rospy.Publisher(drive_topic, AckermannDriveStamped, queue_size = 10)

    def getRange(self, data, angle):
        # data: single message from topic /scan
        # angle: between -45 to 225 degrees, where 0 degrees is directly to the right
        # Outputs length in meters to object with angle in lidar scan field of view
        #make sure to take care of nans etc.
        #TODO: implement
        if angle >= -45 and angle <= 225:
            iterator = len(data) * (angle + 90) / 360
            if not np.isnan(data[int(iterator)]) and not np.isinf(data[int(iterator)]):
                return data[int(iterator)]

    def pid_control(self, error, velocity):
        global integral
        global prev_error
        global kp
        global ki
        global kd
        global prev_time
        angle = 0.0
        current_time = rospy.get_time()
        del_time = current_time - prev_time
        #TODO: Use kp, ki & kd to implement a PID controller for
        integral += prev_error * del_time
        angle = kp * error + ki * integral + kd * (error - prev_error) / del_time
        prev_error = error
        prev_time = current_time
        drive_msg = AckermannDriveStamped()
        drive_msg.header.stamp = rospy.Time.now()
        drive_msg.header.frame_id = "laser"
        drive_msg.drive.steering_angle = -angle
        if abs(angle) > math.radians(0) and abs(angle) <= math.radians(10):
            drive_msg.drive.speed = velocity
        elif abs(angle) > math.radians(10) and abs (angle) <= math.radians(20):
            drive_msg.drive.speed = 1.0
        else:
            drive_msg.drive.speed = 0.5
        self.drive_pub.publish(drive_msg)

    def followLeft(self, data, leftDist):
        #Follow left wall as per the algorithm
        #TODO:implement
        front_scan_angle = 125
        back_scan_angle = 180
        teta = math.radians(abs(front_scan_angle - back_scan_angle))
        front_scan_dist = self.getRange(data, front_scan_angle)
        back_scan_dist = self.getRange(data, back_scan_angle)
        alpha = math.atan2(front_scan_dist * math.cos(teta) - back_scan_dist, front_scan_dist * math.sin(teta))
        wall_dist = back_scan_dist * math.cos(alpha)
        ahead_wall_dist = wall_dist + CAR_LENGTH * math.sin(alpha)
        return leftDist - ahead_wall_dist

    def lidar_callback(self, data):
        """
        """
        error = self.followLeft(data.ranges, DESIRED_DISTANCE_LEFT) #TODO: replace with error returned by followLeft
        #send error to pid_control
        self.pid_control(error, VELOCITY)

def main(args):
    rospy.init_node("WallFollow_node", anonymous=True)
    wf = WallFollow()
    rospy.sleep(0.1)
    rospy.spin()

if __name__=='__main__':
	main(sys.argv)
