AQS

protected final int getState() {
    return state;
}
protected final void setState(int newState) {
    state = newState;
}
protected final boolean compareAndSetState(int expect, int update) {
    // See below for intrinsics setup to support this
    return unsafe.compareAndSwapInt(this, stateOffset, expect, update);
}

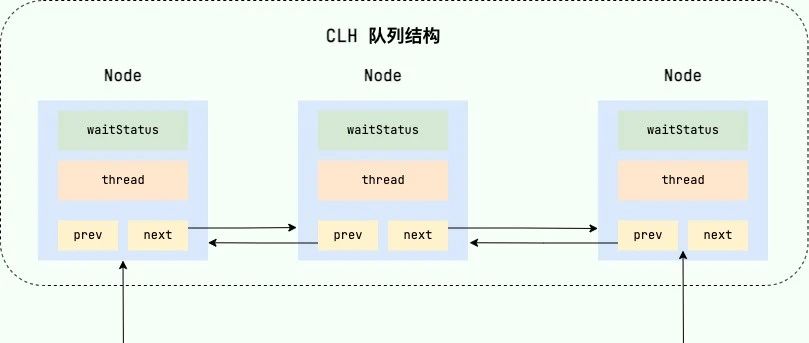

// 节点的状态
volatile int waitStatus;
// 当前节点的前一个节点
volatile Node prev;
// 当前节点的后一个节点
volatile Node next;
// 当前节点中所包含的线程对象
volatile Thread thread;
// 等待队列中的下一个节点
Node nextWaiter;

/** waitStatus value to indicate thread has cancelled */
static final int CANCELLED =  1;
/** waitStatus value to indicate successor's thread needs unparking */
static final int SIGNAL    = -1;
/** waitStatus value to indicate thread is waiting on condition */
static final int CONDITION = -2;
/**
  * waitStatus value to indicate the next acquireShared should
  * unconditionally propagate
*/
static final int PROPAGATE = -3;

/**
 * Sync object for non-fair locks
 */
static final class NonfairSync extends Sync {
    private static final long serialVersionUID = 7316153563782823691L;

    /**
     * Performs lock.  Try immediate barge, backing up to normal
     * acquire on failure.
     */
    final void lock() {
        if (compareAndSetState(0, 1))
            setExclusiveOwnerThread(Thread.currentThread());
        else
            acquire(1);
    }

    protected final boolean tryAcquire(int acquires) {
        return nonfairTryAcquire(acquires);
    }
}

protected final void setExclusiveOwnerThread(Thread thread) {
    exclusiveOwnerThread = thread;
}

public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

protected final boolean tryAcquire(int acquires) {
    return nonfairTryAcquire(acquires);
}
final boolean nonfairTryAcquire(int acquires) {
     final Thread current = Thread.currentThread();
     int c = getState();// 获取state值
     if (c == 0) {
     // 如果state值为0，说明无锁，那么就通过cas方式，尝试加锁，成功后将独占线程设置为当前线程
         if (compareAndSetState(0, acquires)) {
             setExclusiveOwnerThread(current);
             return true;
         }
     }
     else if (current == getExclusiveOwnerThread()) { // 如果是同一个线程再次来获取锁，那么就将state的值进行加1处理（可重入锁的，重入次数）。
         int nextc = c + acquires;
         if (nextc < 0) // overflow
             throw new Error("Maximum lock count exceeded");
         setState(nextc);
         return true;
     }
     return false;
 }

public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

/**
     * Creates and enqueues node for current thread and given mode.
     *
     * @param mode Node.EXCLUSIVE for exclusive, Node.SHARED for shared
     * @return the new node
     */
    private Node addWaiter(Node mode) {
        Node node = new Node(Thread.currentThread(), mode);
        // Try the fast path of enq; backup to full enq on failure
        Node pred = tail;
        if (pred != null) {
            node.prev = pred;
            if (compareAndSetTail(pred, node)) {
                pred.next = node;
                return node;
            }
        }
        enq(node);
        return node;
    }

/**
     * Inserts node into queue, initializing if necessary. See picture above.
     * @param node the node to insert
     * @return node's predecessor
     */
    private Node enq(final Node node) {
	//开旋
        for (;;) {
	    //获取等待队列的头节点
            Node t = tail;
            if (t == null) { // Must initialize
                if (compareAndSetHead(new Node()))
                    tail = head;
            } else {
		//将即将加入的节点的前节点设置为头节点
                node.prev = t;
		//设置将尾节点设置为即将加入的节点
                if (compareAndSetTail(t, node)) {
                    t.next = node;
                    return t;
                }
            }
        }
    }

public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

/**
     * Acquires in exclusive uninterruptible mode for thread already in
     * queue. Used by condition wait methods as well as acquire.
     *
     * @param node the node
     * @param arg the acquire argument
     * @return {@code true} if interrupted while waiting
     */
    final boolean acquireQueued(final Node node, int arg) {
        boolean failed = true;
        try {
            boolean interrupted = false;
	    //旋起
            for (;;) {
		//获取前级节点
                final Node p = node.predecessor();
		//如果前级节点为head，并且执行抢占锁成功。
                if (p == head && tryAcquire(arg)) {
		    //抢占锁成功，当前节点成功新的head节点
                    setHead(node);
                    p.next = null; // help GC
                    failed = false;
                    return interrupted;
                }
		//如果当前节点不为head,或者抢占锁失败。就根据节点的状态决定是否需要挂起线程。
                if (shouldParkAfterFailedAcquire(p, node) &&
                    parkAndCheckInterrupt())
                    interrupted = true;
            }
        } finally {
            if (failed)
                cancelAcquire(node);
        }
    }

/**
     * Checks and updates status for a node that failed to acquire.
     * Returns true if thread should block. This is the main signal
     * control in all acquire loops.  Requires that pred == node.prev.
     *
     * @param pred node's predecessor holding status
     * @param node the node
     * @return {@code true} if thread should block
     */
    private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) {
	//获取前级节点的waitStatus
        int ws = pred.waitStatus;
	//SIGNAL前面有提到，值为-1，代表后继节点处于等待状态。后继结点入队时，会将前继结点的状态更新为SIGNAL。
        if (ws == Node.SIGNAL)
            /*
             * This node has already set status asking a release
             * to signal it, so it can safely park.
             */
            return true;
	//如果前级节点的waitStatus值大于0说明前级节点已经取消了。
        if (ws > 0) {
            /*
             * Predecessor was cancelled. Skip over predecessors and
             * indicate retry.
             */
            do {
		//如果前级节点已经是CANCEL状态了，那么会继续向前找，
		//直到找到的节点不是CANCEL（waitStatue>0）状态的节点，然后将其设置为当前节点的前级节点。
                node.prev = pred = pred.prev;
            } while (pred.waitStatus > 0);
            pred.next = node;
        } else {
            /*
             * waitStatus must be 0 or PROPAGATE.  Indicate that we
             * need a signal, but don't park yet.  Caller will need to
             * retry to make sure it cannot acquire before parking.
             */
	    //如果前级节点为0或者其他不为-1的小于0的值，则将当前节点的前级节点设置为 SIGNAL(-1)
            compareAndSetWaitStatus(pred, ws, Node.SIGNAL);
        }
        return false;
    }

/**
     * Convenience method to park and then check if interrupted
     *
     * @return {@code true} if interrupted
     */
    private final boolean parkAndCheckInterrupt() {
        LockSupport.park(this);
        return Thread.interrupted();
    }

public static void park() {
    UNSAFE.park(false, 0L);
}
public static void unpark(Thread thread) {
    if (thread != null)
        UNSAFE.unpark(thread);
}

public void unlock() {
   sync.release(1);
}

/**
     * Releases in exclusive mode.  Implemented by unblocking one or
     * more threads if {@link #tryRelease} returns true.
     * This method can be used to implement method {@link Lock#unlock}.
     *
     * @param arg the release argument.  This value is conveyed to
     *        {@link #tryRelease} but is otherwise uninterpreted and
     *        can represent anything you like.
     * @return the value returned from {@link #tryRelease}
     */
    public final boolean release(int arg) {
        if (tryRelease(arg)) {
            Node h = head;
	    //释放成功后，判断头节点的状态是否为无锁状态，如果不为无锁状态就将头节点中的线程唤醒。
            if (h != null && h.waitStatus != 0)
                unparkSuccessor(h);
            return true;
        }
        return false;
    }

protected final boolean tryRelease(int releases) {
	    //从state中减去传入参数的相应值（一般为1）
            int c = getState() - releases;
            if (Thread.currentThread() != getExclusiveOwnerThread())
                throw new IllegalMonitorStateException();
            boolean free = false;
            if (c == 0) {
                free = true;
                setExclusiveOwnerThread(null);
            }
            setState(c);
            return free;
        }

/**
     * Wakes up node's successor, if one exists.
     *
     * @param node the node
     */
    private void unparkSuccessor(Node node) {
        /*
         * If status is negative (i.e., possibly needing signal) try
         * to clear in anticipation of signalling.  It is OK if this
         * fails or if status is changed by waiting thread.
         */
        int ws = node.waitStatus;
        if (ws < 0)
            compareAndSetWaitStatus(node, ws, 0);

        /*
         * Thread to unpark is held in successor, which is normally
         * just the next node.  But if cancelled or apparently null,
         * traverse backwards from tail to find the actual
         * non-cancelled successor.
         */
        Node s = node.next;
        if (s == null || s.waitStatus > 0) {
            s = null;
            for (Node t = tail; t != null && t != node; t = t.prev)
                if (t.waitStatus <= 0)
                    s = t;
        }
        if (s != null)
            LockSupport.unpark(s.thread);
    }

/*
         * Thread to unpark is held in successor, which is normally
         * just the next node.  But if cancelled or apparently null,
         * traverse backwards from tail to find the actual
         * non-cancelled successor.
         */
	#这段英文注释翻译过来的大概意思就是：线程唤醒的时候，
	#通常是从当前线程的下个节点线程开始寻找，但是下个节点有可能已经取消了或者为null了，
	#所以从后向前找，直到找到一个非 取消状态的节点线程。

/**
     * Constructs a {@code CountDownLatch} initialized with the given count.
     *
     * @param count the number of times {@link #countDown} must be invoked
     *        before threads can pass through {@link #await}
     * @throws IllegalArgumentException if {@code count} is negative
     */
    public CountDownLatch(int count) {
        if (count < 0) throw new IllegalArgumentException("count < 0");
        this.sync = new Sync(count);
    }

public void await() throws InterruptedException {
        sync.acquireSharedInterruptibly(1);
    }

public final void acquireSharedInterruptibly(int arg)
            throws InterruptedException {
	//如果线程已经中断，直接抛出异常结束。
        if (Thread.interrupted())
            throw new InterruptedException();
	//CountDownLatch重写的tryAcquireShared()方法，如果state!=0，则返回-1
        if (tryAcquireShared(arg) < 0)
            doAcquireSharedInterruptibly(arg);
    }
    protected int tryAcquireShared(int acquires) {
        return (getState() == 0) ? 1 : -1;
    }

/**
     * Acquires in shared interruptible mode.
     * @param arg the acquire argument
     */
    private void doAcquireSharedInterruptibly(int arg)
        throws InterruptedException {
	//添加一个共享node到等待队列中
        final Node node = addWaiter(Node.SHARED);
        boolean failed = true;
        try {
            for (;;) {
		//获取前置节点
                final Node p = node.predecessor();
                if (p == head) {
		    //如果前级节点是头节点，直接尝试获取共享资源。
                    int r = tryAcquireShared(arg);
                    if (r >= 0) {
			//如果获取共享资源成功，将head节点指向自己
                        setHeadAndPropagate(node, r);
                        p.next = null; // help GC
                        failed = false;
                        return;
                    }
                }
		//如果不是前级节点不是head节点，就根据前级节点状态，判断是否需要挂起线程。
                if (shouldParkAfterFailedAcquire(p, node) &&
                    parkAndCheckInterrupt())
                    throw new InterruptedException();
            }
        } finally {
            if (failed)
		//如果执行失败，取消获取共享资源的操作。
                cancelAcquire(node);
        }
    }

private void setHeadAndPropagate(Node node, int propagate) {
        Node h = head; // Record old head for check below
        setHead(node);
        if (propagate > 0 || h == null || h.waitStatus < 0 ||
            (h = head) == null || h.waitStatus < 0) {
            Node s = node.next;
            if (s == null || s.isShared())
                doReleaseShared();
        }
    }

public void countDown() {
    sync.releaseShared(1);
}

public final boolean releaseShared(int arg) {
	//尝试释放资源
        if (tryReleaseShared(arg)) {
	    //释放资源成功后，唤醒节点
            doReleaseShared();
            return true;
        }
        return false;
    }

protected boolean tryReleaseShared(int releases) {
    // Decrement count; signal when transition to zero
    for (;;) {
        int c = getState();
        if (c == 0) // 若state为0，说明已经不需要释放资源了，直接返回false。
            return false;
        int nextc = c-1;
        if (compareAndSetState(c, nextc))// 真正的释放资源，是通过CAS的方式将state的值减1。
            return nextc == 0;
    }
}

private void doReleaseShared() {
  for (;;) {
      Node h = head;
      if (h != null && h != tail) {// 当头节点不为空，并且不等于尾节点时，从头开始唤醒。
          int ws = h.waitStatus;// 获取头节点的等待状态
          if (ws == Node.SIGNAL) {// 如果头节点状态为等待唤醒，那么将头节点的状态设置为无锁状态，若CAS设置节点状态失败，就自旋。
              if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                  continue;            // loop to recheck cases
              unparkSuccessor(h);// 唤醒头节点
          }// 如果head节点的状态已经为无锁状态了，那么将head节点状态设置为可以向下传播唤醒的状态（PROPAGATE）。
          else if (ws == 0 &&
                   !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
              continue;                // loop on failed CAS
      }
      // 若在执行过程中，head节点发生的变化，直接跳出循环。
      if (h == head)                   // loop if head changed
          break;
  }
}
